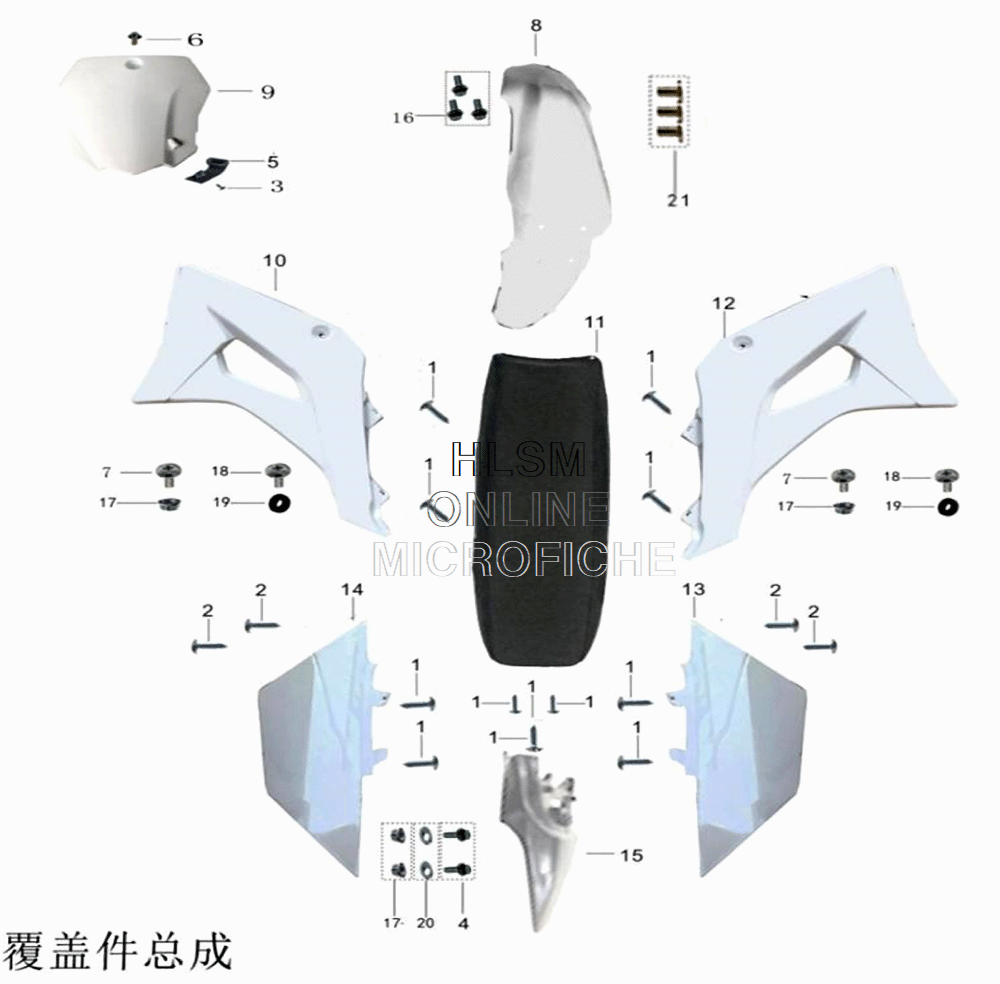

Body Panels with Seat
| No. | U8 Code | EN name | Qty/vehicle | QTY | Retail |
| 1 | 903010-0005 | screw | 11 | /ea | $ 3.40 |
| 2 | 903010-0004 | screw | 4 | /ea | $ 3.40 |
| 3 | 903010-0006 | screw | 1 | /ea | $ 3.40 |
| 4 | 903019-0005 | bolt | 2 | /ea | $ 3.40 |
| 5 | 801019-0001 | line card | 1 | /ea | $ 5.10 |
| 6 | 903018-0003 | bolt | 1 | /ea | $ 3.40 |
| 7 | 903012-0011 | screw | 2 | /ea | $ 3.40 |
| 8 | 801019-0003-02 | front mud guard | 1 | /ea | $ 42.50 |
| 9 | 801019-0002-02 | front panel | 1 | /ea | $ 30.60 |
| 10 | 801016-0001 | front left cover | 1 | /ea | $ 30.60 |
| 11 | 701000-0003-03 | seat assy. | 1 | /ea | $ 61.20 |
| 12 | 801016-0002 | front right cover | 1 | /ea | $ 30.60 |
| 13 | 801016-0004 | rear right cover | 1 | /ea | $ 30.60 |
| 14 | 801016-0003 | rear left cover | 1 | /ea | $ 30.60 |
| 15 | 801016-0005 | rear center cover | 1 | /ea | $ 34.00 |
| 16 | 903019-0004 | flange bolt | 3 | /ea | $ 3.40 |
| 17 | 903006-0002 | nut | 4 | /ea | $ 3.40 |
| 18 | 903012-0007 | screw | 2 | /ea | $ 3.40 |
| 19 | 908003-0002 | gasket | 2 | /ea | $ 2.55 |
| 20 | 903002-0002 | gasket | 2 | /ea | $ 3.40 |
| 21 | 902002-0042 | step bush | 3 | /ea | $ 3.40 |
