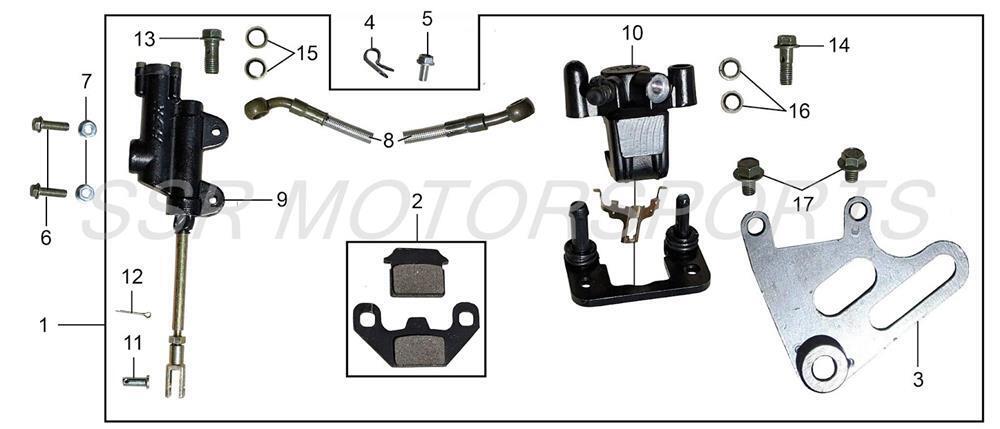

Rear Brake System
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | UNIT | QTY. | RETAIL |
| 1 | A00529-04-00 | REAR BRAKE ASSY | 1 | Assy. | $103.00 | |
| 2 | A00469-04-00 | REAR BRAKE PAD SET | 1 | Set | $18.00 | |
| 3 | A00522-04-00 | REAR BRAKE CALIPER BRACKET | 1 | Pc. | $23.00 | |
| 4 | A00523-04-00 | REAR BRAKE HOSE RETAINER | 1 | Pc. | $2.00 | |
| 5 | A00031-19-01 | FLANGE BOLT | M6X12 | 1 | Pc. | $1.50 |
| 6 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 7 | A00093-22-03 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 8 | A00593-04-00 | REAR BRAKE HOSE | 1 | Pc. | $21.00 | |
| 9 | A00585-04-00 | REAR BRAKE MASTER CYLINDER | 1 | Assy. | $76.00 | |
| 10 | A00584-04-00 | REAR BRAKE CALIPER | 1 | Assy. | $85.00 | |
| 11 | A00417-04-00 | REAR BRAKE PIN | 1 | Pc. | $1.50 | |
| 12 | A00007-25-01 | COTTER PIN | 1 | Pc. | $1.50 | |
| 13 | A00688-04-00 | BANJO BOLT | M10 | 1 | Pc. | $2.00 |
| 14 | A00675-04-00 | BANJO BOLT | M8 | 1 | Pc. | $2.00 |
| 15 | A00549-04-00 | SEALING WASHER | M10 | 2 | Pcs. | $1.50 |
| 16 | A00676-04-00 | SEALING WASHER | M8 | 2 | Pcs. | $1.50 |
| 17 | A00089-19-X1 | FLANGE BOLT | M8x12 | 2 | Pcs. | $1.50 |
