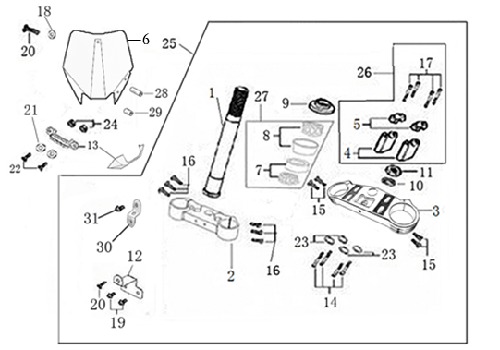

| Reference |
Part# |
Description |
Qty |
| 25 |
YC50-0227-03-GY |
Complete Triple Clamp YCF50 135mm 2020 GREY |
1 |
| 1 |
YC50-0200-02 |
Steering stem L=195mm |
1 |
| 2 |
YC50-0202-06-GY |
Lower triple clamp YCF50 L=135mm d.35mm H=18mm 2020 GREY |
1 |
| 3 |
YC50-0201-06-GY |
Top Triple Clamp YCF50 L=135mm d.35 H=15mm 2020 GREY |
1 |
| 26 |
YC50-0228-01 |
YCF50 Set of Bar mount not adjustable d.22.2mm/bottom H=51.5mm(with BT08-M8x25-W 4EA GB70-M10x25x1.5W 2EA) 2020 |
1 |
| 4 |
YC50-0203-03 |
YCF50 Lower Bar Mount CNC 2020 H=36mm d.22.2mmBLACK |
2 |
| 5 |
YC110-0201-02 |
2020 Top Bar Mout CNC d22.2 mm/height H=18mm START Type BLACK |
2 |
| 16 |
BT08-M6x25-W |
Hex.Bolt M6x25mm CLAMP(sides top and bottom) |
4 |
| 17 |
BT08-M8x25-W |
Hex.Bolt M8x25mm BAR MOUNT |
4 |
| 14 |
GB70-M10x25x1.5W |
Hex. Bolt M10x25mm (step 1.5)for 2020 bar mounts |
2 |
| 6 |
YC50-0212-03-WH |
YCF50 Front Number Plate complete WHITE 2020 |
1 |
| 18 |
FB13-9x10x17-W |
Front Number plate spacer (Top) d.8.5mmx10x17 |
1 |
| 31 |
BT08-M6x30-W |
Hex.Bolt M6x30mm for front No plate |
1 |
| |
GB97-d6-W |
flat washer d6mm |
1 |
| 27 |
KRDIRECTION46 |
set of bearing for steering 46/23.5、46/22 |
1 |
| 9 |
YC110-02-09 |
Top nut for steering d.54.5mm |
1 |
