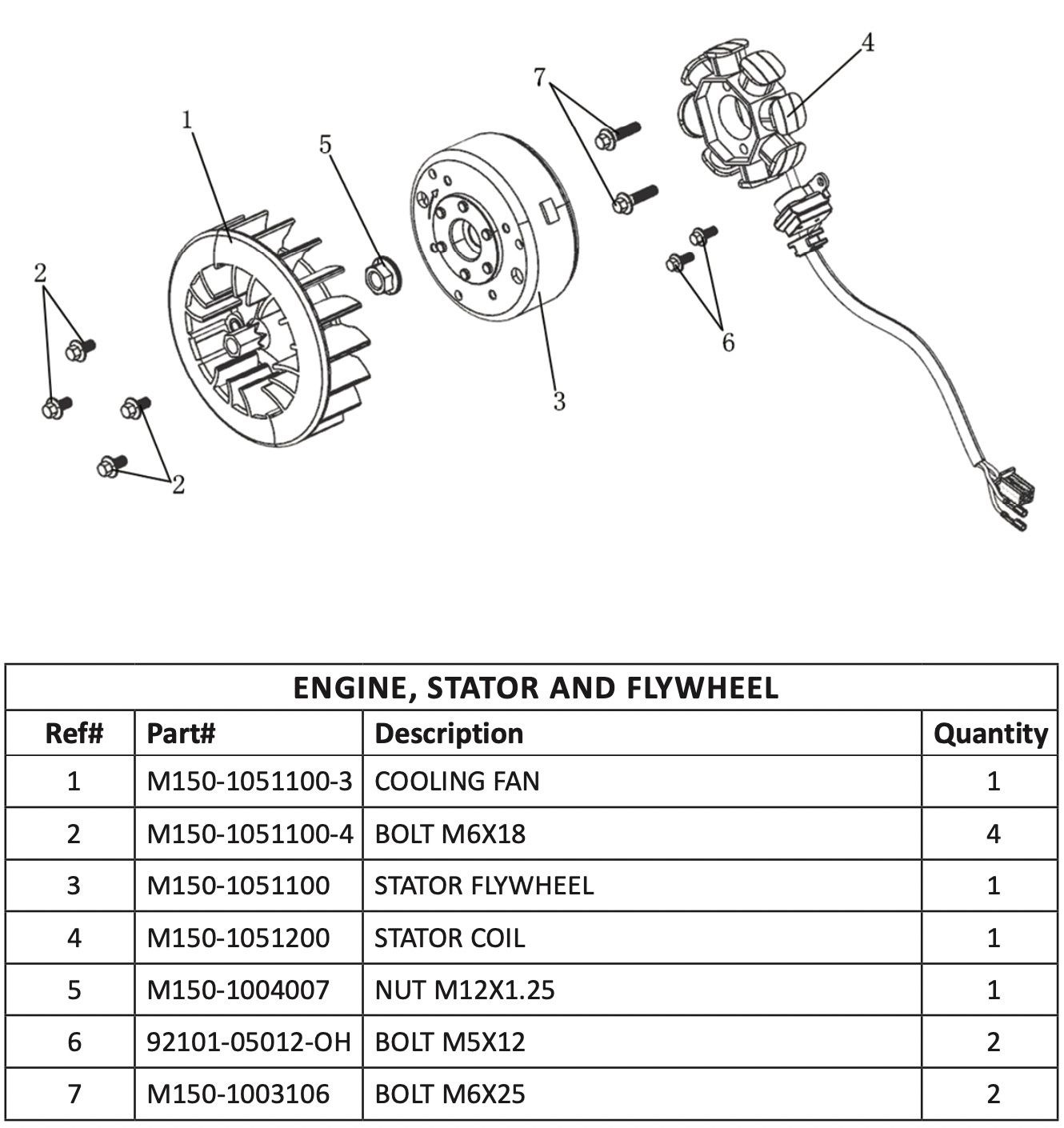

Engine, Stator & Flywheel

(01) Hammerhead Fan for 150cc, GY6

150cc Cooling FanHammerhead part # M150-1051100-3Polaris part # 3050092American SportWorks part # 14367

(03) Hammerhead Flywheel for 150cc, GY6

150cc Flywheel that is used on all hammerhead, trail master, carter and american sportworks 150cc models with 8 post stator, will not work on 6 post stators.If replacing the older-style 6 pin stator with the newer stator having 8 pins...

(03/07) Hammerhead M6x20 Flange Bolt

Flange Bolt, M6x20 Size: M6 (Metric 6mm diameter) Length: 20mm Thread Pitch: 1mm Type: Flanged Price is per bolt   PART#S Hammerhead part # 9.106.020, 9.100.005American SportWorks part # 14341Baja part # BR150S-135, BR250-172, BR250-616,...

(04) Hammerhead Stator and Pickup, 8-Post for 150cc, GY6

This eight-post 150cc stator is the newest and ONLY Hammerhead Off-Road stator currently available. This stator replaces the six-post stator, but does NOT come with the flywheel.  This stator is used on most 150cc gokarts with Internal Reverse...

(05) Hammerhead Nut, M12 Locking Flange Nut

Locking Flange Nut M12. Size: M12 (Metric 12mm diameter center opening) Height: ~7mm Thread Pitch: 1.25mm Price is per piece Multiple uses for this nut so this will cross reference for different areas of the kart.Hammerhead part # 9.220...

(06) Hammerhead Bolt, M5x12 Hex Bolt

m5x12 Bolt Size: M5 (Metric 5mm diameter) Length: 12mm Thread Pitch: .75mm Type: Hex Price is per bolt Hammerhead part # 9.100.512Hammerhead part # 92101-05012-OHAmerican Landmater part # 14422-D

(29/02) Hammerhead Bolt, M6x18 Flange Bolt

This M6x18 Flanged Bolt is most often found on many buggies and scooters near the Magneto Stator area. It can also be found in the Cylinder Body area of CN250 and CF250 engines, used to secure the camshaft chain guide tensioner to the cylinder body.M6 x...
