Product Description

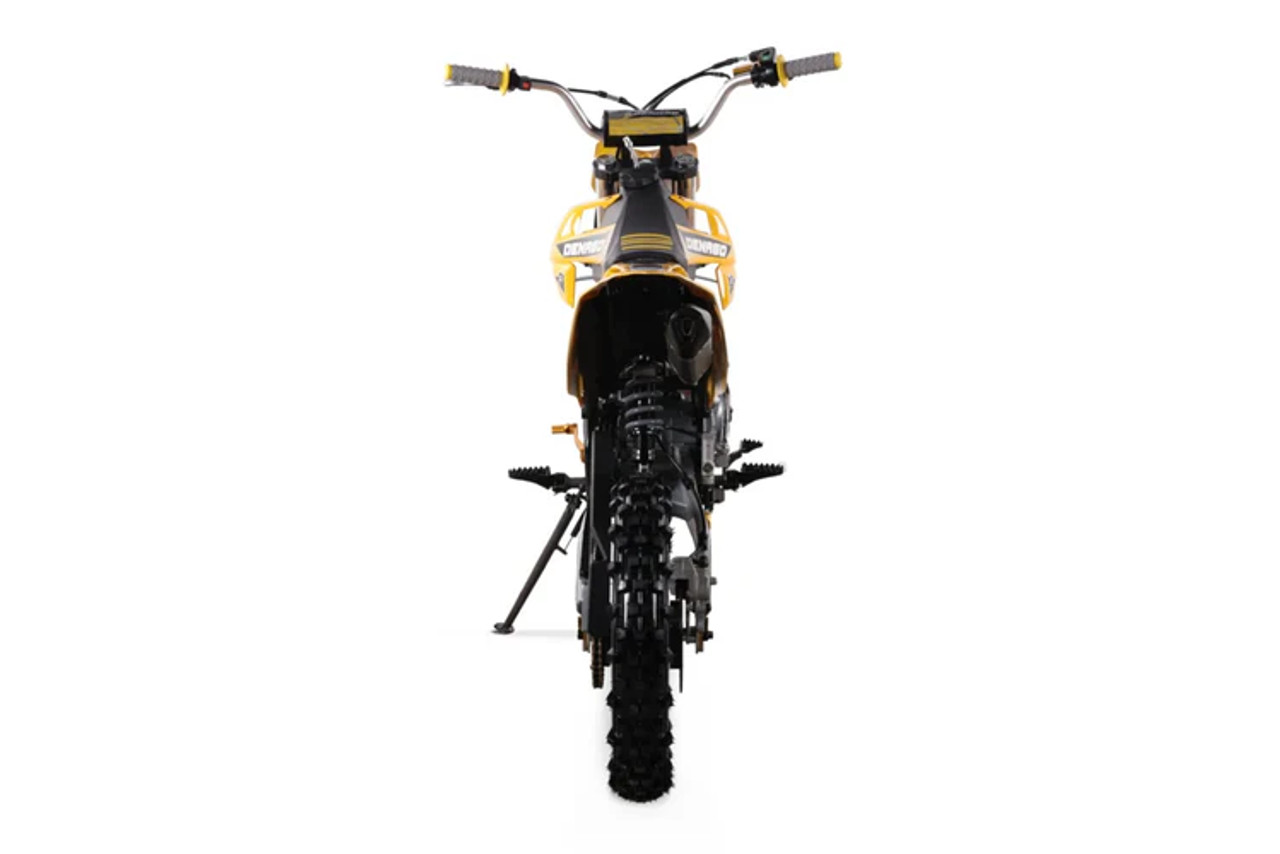

Denago MX2 Yellow Edition – 125cc Performance Pit Bike for Teens & Adults
Comprehensive Product Description
The Denago MX2 Yellow Edition is a professional-grade pit bike engineered for riders aged 14+ who demand serious off-road performance with beginner-friendly accessibility. This vibrant yellow machine combines competition-inspired components with user-friendly features, creating the perfect balance between trail-ready capability and approachable riding dynamics.
Engine & Powertrain System
-
125cc Air-Cooled 4-Stroke Engine:
-
SOHC design delivers 11.2 HP at 8,500 RPM
-
Bore x Stroke: 56.5mm x 49.5mm (oversquare design for high-RPM power)
-
External Oil Cooler maintains optimal engine temps during extended rides
-
High-Performance Red Ignition Coil ensures consistent spark in all conditions
-
Stainless Steel Exhaust System with ceramic-coated header pipe
-
-
4-Speed Manual Transmission:
-
Multiplate Wet Clutch (6 friction plates) with adjustable engagement
-
Precision-cut gears with dog-leg engagement for positive shifts
-
Gear Ratios optimized for technical terrain:
-
1st: 2.923 (17/49)
-
2nd: 1.857 (21/39)
-
3rd: 1.333 (24/32)
-
4th: 1.045 (23/24)
-
-
Chassis & Suspension
-
Inverted Hydraulic Front Forks:
-
35mm stanchions with 5.9" of travel
-
20-click compression damping adjustment
-
Adjustable triple clamps (3 handlebar positions)
-
-
Hydraulic Monoshock Rear Suspension:
-
5.5" of wheel travel
-
Preload adjustment collar (5 settings)
-
Rebound damping control
-
-
High-Tensile Steel Frame:
-
TIG-welded construction with reinforced gussets
-
50" wheelbase for stability at speed
-
14.5" ground clearance clears obstacles easily
-
Braking System
-
Front Hydraulic Disc:
-
220mm wave rotor
-
Dual-piston caliper with CNC-machined bracket
-
-

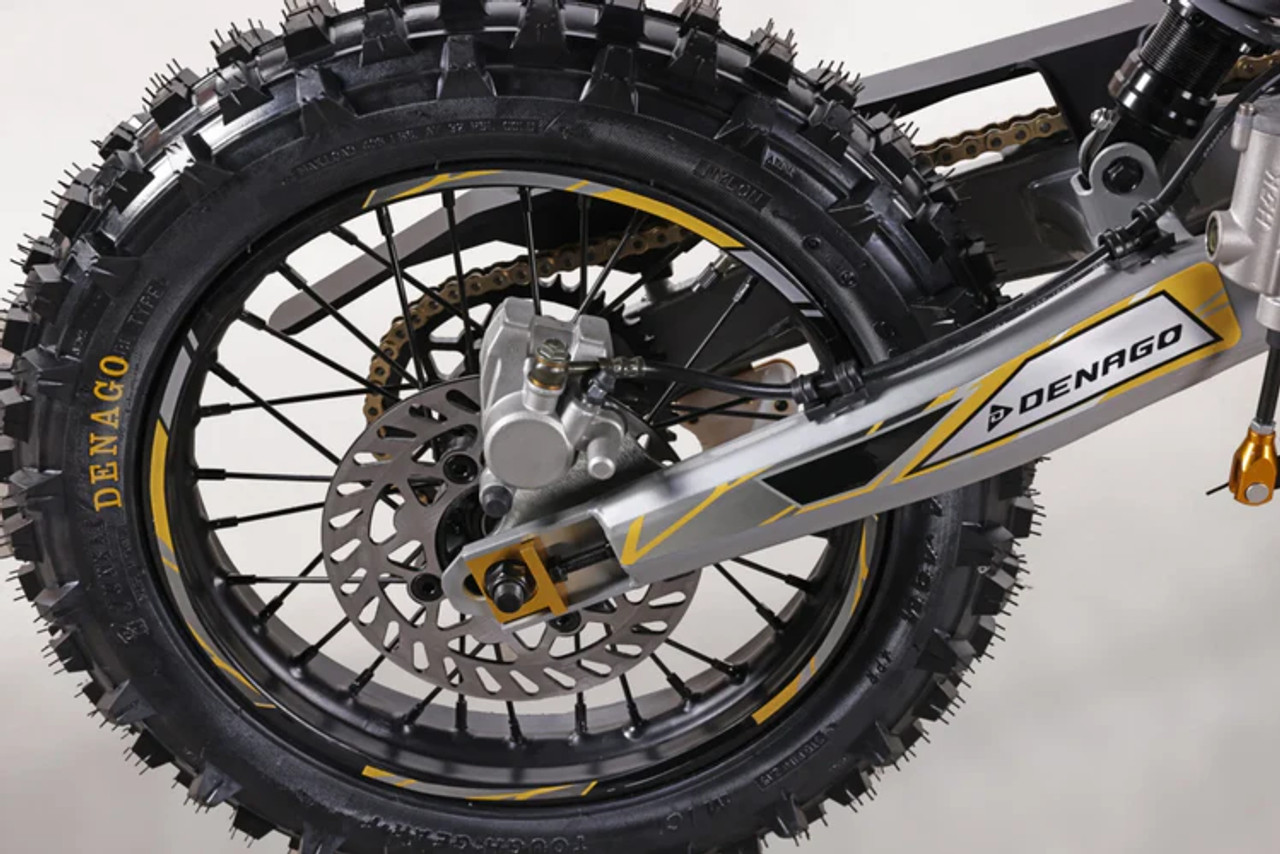

Rear Hydraulic Disc:
-
190mm wave rotor
-
Single-piston caliper
-
-
Folding Levers:
-
Adjustable reach (5 positions)
-
6061-T6 aluminum construction
-
Wheels & Tires
-
Front Wheel Assembly:
-
17" diameter | 1.60" width
-
70/100-17 knobby tire
-
-
Rear Wheel Assembly:
-
14" diameter | 2.15" width
-
90/100-14 knobby tire
-
-
Gold X-Ring Chain:
-
#420 specification
-
Self-lubricating design
-
Ergonomics & Controls
-
35" Seat Height: Ideal for riders 5'2" to 6'0"
-

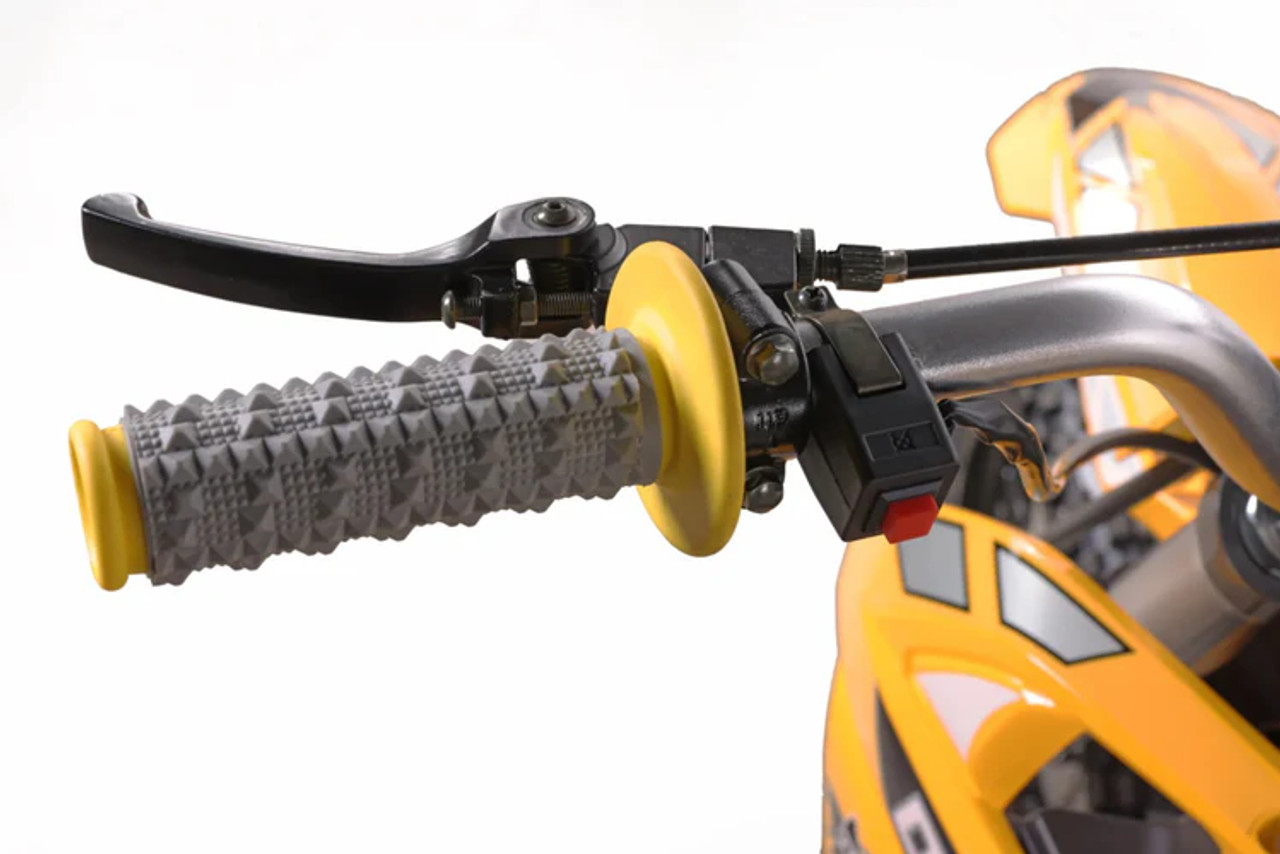

Yellow Color-Matched Grips:
-
Dual-density rubber with ergonomic palm swell
-
-
Adjustable Controls:
-
Brake lever (5 positions)
-
Clutch lever (5 positions)
-
CNC folding shifter (3 positions)
-
Premium Features
-
Keyed Ignition System: Theft deterrent
-
Side Stand: Convenient parking
-
CNC Anodized Components:
-
Brake reservoirs (yellow)
-
Chain adjusters (yellow)
-
Fuel vent cap (yellow)
-
-
Dry Weight: 163 lbs (easy to maneuver)
-
Fuel Capacity: 1.2 gallons (4.5L)
Technical Specifications
| Category | Specification |
|---|---|
| Engine | 125cc 4-stroke SOHC |
| Bore x Stroke | 56.5mm x 49.5mm |
| Compression Ratio | 9.8:1 |
| Fuel System | 26mm Carburetor |
| Transmission | 4-speed manual |
| Final Drive | #420 Gold X-Ring Chain |
| Suspension (F/R) | Inverted Hydraulic / Monoshock |
| Brakes (F/R) | Hydraulic Disc (220mm/190mm) |
| Tires (F/R) | 70/100-17 / 90/100-14 |
| Wheelbase | 50" |
| Seat Height | 35" |
| Ground Clearance | 14.5" |
| Fuel Capacity | 1.2 gal (4.5L) |
| Dry Weight | 163 lbs |
| Recommended Age | 14+ |
Powerful 4 Stroke Engine
The engine is the lifeline of all powersports products and fun factor of everthing we ride.
Manual 4 Speed Transmission with Activated Clutch
Adjustable Suspension Front & Rear
The comfort and confidence you have in pushing your machine to its fullest potential comes from your suspension, so having a shock tht can adapt to your weight and speed is extremely important.
Adjustable Suspension Front & Rear
Hydraulic Disc Brakes Front & Rear
Having consistent and effective stopping power is as essential as a high-performance engine, nothing stops better then hydraulic disc brakes!
Folding & Adjustable Brake Levers
When a motorcycles falls over, it commonly breaks levers which makes operating the bike very difficult. Our bikes come with retactable brake levers, which reduce that possibility considerably.
Side Stand
Kickstands on motorcycles have been around since the first motorcycle was invented, making parking your bike extremely convenient. Many dirt bikes sold today do not have them, which is a big inconvenience.
Color-Matched Comfort Top Grips
Grips connect the rider to the machine, and our color matched comfort top grips achieve that goal in stride.
Throttle Assembly with Tapered Bearing
Controlling your throttle consistently is the most important thing you will do as a rider, and having a smooth, light throttle is a must in performing this task.
CNC Anodized Aluminum Brake Reservoir Caps
Gold Drive Chain
A motorcycle's chain connects the motor to the rear wheel and produces power to the ground. Denago used a high grade gold-plated chain to ensure that connection.
CNC Andoized Aluminum Chain Adjuster Blocks
Color matched aluminum chain adjuster blacks are one of many high end components on all Denago bikes! They work great and look amazing!
Powder Coated Black Wheels
All Denago bikes come equipped with high quality black anodized rims that work and look great
Powder Coated Black Exhaust System
Color Matched CNC Anodized Aluminum Fuel Vent Cap
High Performance Red Ignition Coil Wire
Keyed Ignition
CNC Andodized Aluminum Folding Shifter Lever
All Denago Bikes come standard with retractable length adjustable aluminum levers!
Stainless Steel Exhaust Pipe
Adjustable Triple Clamps
External Oil Cooler
