Left Front Cover / Stator Cover for Kayo K2 230
Kayo
$127.50
(No reviews yet)
Write a Review
Kayo
Left Front Cover / Stator Cover for Kayo K2 230
Left Front Cover / Stator Cover for Kayo K2 230
OEM PART# 101024-0353-02

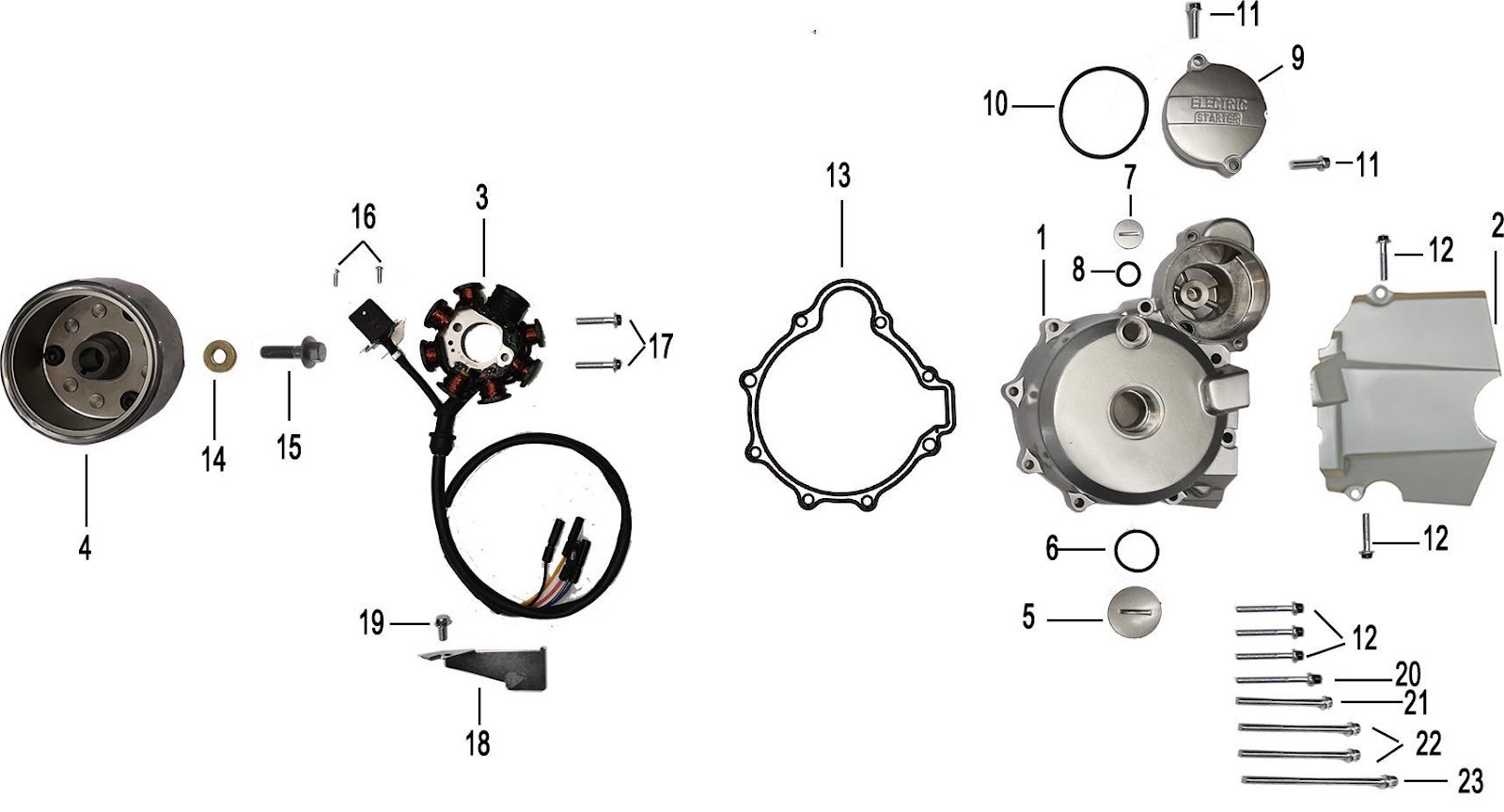

#1 shown in schematic
| No. | U8 Code | EN name | Qty/vehicle | QTY | Retail |
| 1 | 101024-0353-02 | Left front cover | 1 | /ea | $127.50 |
| 2 | 101024-0354 | left rear cover | 1 | /ea | $59.50 |
| 3 | 101024-0358 | Magneto stator assembly | 1 | /ea | $93.50 |
| 4 | 101024-0357 | Magneto rotor assembly | 1 | /ea | $110.50 |
| 4.1 | 101024-0375 | Starter clutch | 1 | /ea | $34.00 |
| 5 | 101024-0362 | Cover, hole plug | 1 | /ea | $17.00 |
| 6 | 101024-0367 | O-seal ring | 1 | /ea | $8.50 |
| 7 | 101024-0361 | Inspects windows cover | 1 | /ea | $13.60 |
| 8 | 101024-0368 | O-seal ring | 1 | /ea | $8.50 |
| 9 | 101024-0376 | Double gear cover | 1 | /ea | $30.60 |
| 10 | 101024-0379 | O-seal ring | 1 | /ea | $8.50 |
| 11 | 101024-0520 | Bolt | 2 | /ea | $5.10 |
| 12 | 101024-0521 | Bolt | 5 | /ea | $5.10 |
| 13 | 101024-0366 | Front left cover gasket | 1 | /ea | $20.40 |
| 14 | 101024-0506 | iron washer | 1 | /ea | $5.10 |
| 15 | 101024-0526 | Bolt | 1 | /ea | $5.10 |
| 16 | 101024-0515 | cross recess pan head screw | 2 | /ea | $5.10 |
| 17 | 101024-0521 | Bolt | 2 | /ea | $5.10 |
| 18 | 101024-0359 | Wiring harness press plate | 1 | /ea | $10.20 |
| 19 | 101024-0518 | Bolt | 1 | /ea | $5.10 |
| 20 | 101024-0527 | Bolt | 1 | /ea | $5.10 |
| 21 | 101024-0522 | Bolt | 1 | /ea | $5.10 |
| 22 | 101024-0524 | Bolt | 2 | /ea | $5.10 |
| 23 | 101024-0525 | Bolt | 1 | /ea | $5.10 |
