Stator Cover / Left Crankcase Cover for Kayo TT140
Kayo
$51.00
(No reviews yet)
Write a Review
Kayo
Stator Cover / Left Crankcase Cover for Kayo TT140
Stator Cover / Left Crankcase Cover for Kayo TT140
OEM Part# 101020-0342

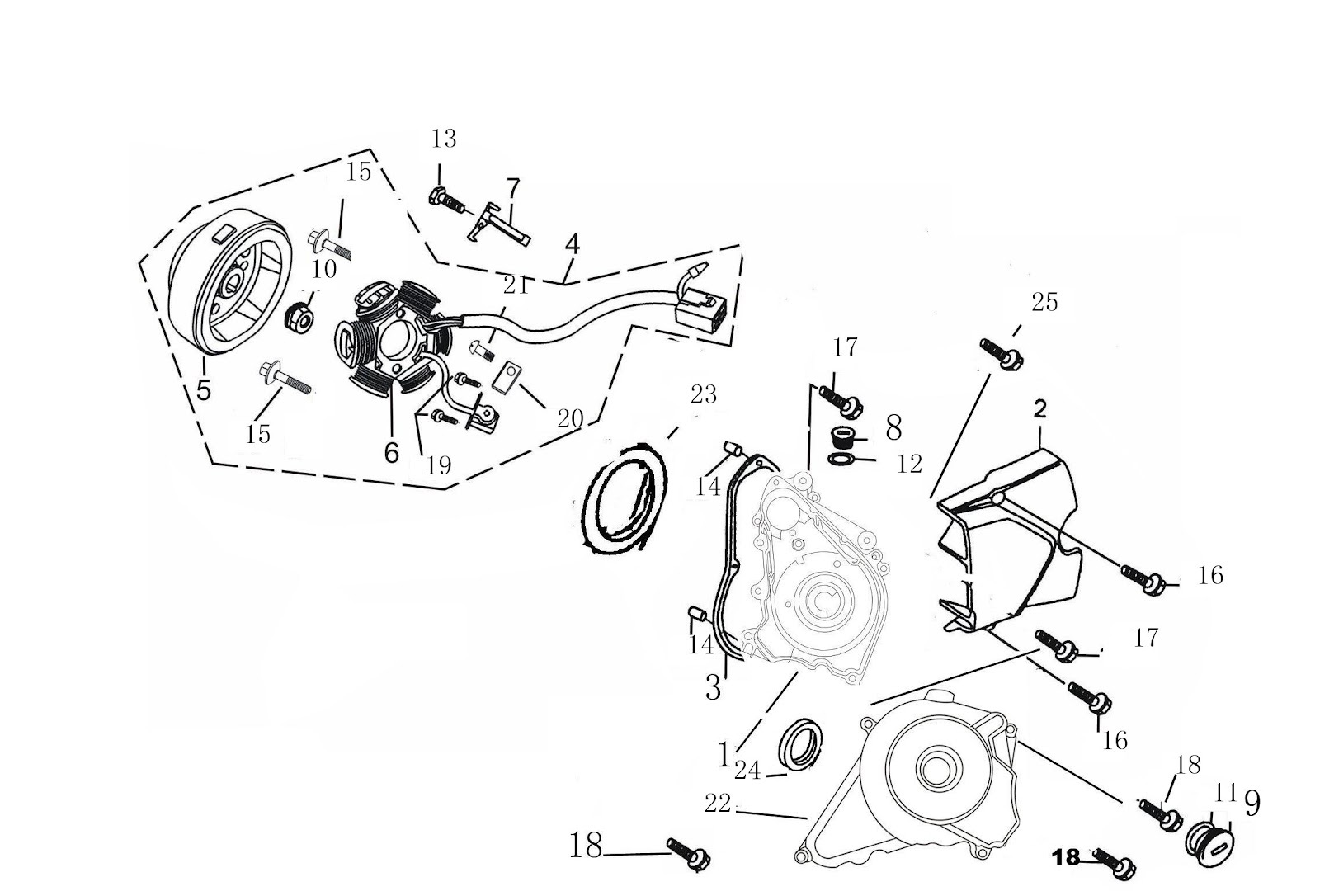

#1 shown in parts schematic
| NO. | U8 Parts No. | ENGLISH DESCRIPTION | Qty/vehicle | QTY | Retail |
| 1 | 101020-0342 | Left Crankcase Cover Plate | 1 | /ea | $ 51.00 |
| 2 | 101020-0343 | Rear Cober.LH | 1 | /ea | $ 34.00 |
| 3 | 101020-0559 | Gasket,Crankcase,LH(EPA) | 1 | /ea | $ 17.00 |
| 4 | 101020-0345 | Magneto Assy | 1 | /ea | $ 85.00 |
| 5 | 101020-0346 | Rotor,Magneto | 1 | /ea | $ 42.50 |
| 6 | 101020-0562 | Stator,Magneto(EPA) | 1 | /ea | $ 51.00 |
| 7 | 101020-0348 | Wire Clamp 6 | 1 | /ea | $ 8.50 |
| 8 | 101020-0349 | A.c generator cap | 1 | /ea | $ 8.50 |
| 9 | 101020-0350 | hole plug | 1 | /ea | $ 17.00 |
| 10 | 101020-0351 | Lock Nut | 1 | /ea | $ 8.50 |
| 11 | 101020-0352 | O-ring 27.4×2.4 | 1 | /ea | $ 8.50 |
| 12 | 101020-0353 | O-ring 13.8×2.5 | 1 | /ea | $ 8.50 |
| 13 | 101020-0354 | Bolt M6×16 | 1 | /ea | $ 6.80 |
| 14 | 101020-0355 | Set Pin 8×12 | 2 | /ea | $ 6.80 |
| 15 | 101020-0356 | Bolt M6×20 | 2 | /ea | $ 6.80 |
| 16 | 101020-0357 | Bolt M6×28 | 2 | /ea | $ 6.80 |
| 17 | 101020-0358 | Bolt M6×32 | 2 | /ea | $ 6.80 |
| 18 | 101020-0359 | Bolt M6×40 | 3 | /ea | $ 6.80 |
| 19 | 101020-0360 | Screw M5×16 | 2 | /ea | $ 6.80 |
| 20 | 101020-0361 | Wire Clamp 5 | 1 | /ea | $ 6.80 |
| 21 | 101020-0362 | Screw M5×6 | 1 | /ea | $ 6.80 |
| 22 | 101020-0363-02 | Crankcase Cover,LH | 1 | /ea | $ 59.50 |
| 23 | 101020-0364 | O-ring 107×2 | 1 | /ea | $ 8.50 |
| 24 | 101020-0365 | Oil seal 30×42×4.5 | 1 | /ea | $ 17.00 |
| 25 | 101020-0366 | Bolt M6×105 | 1 | /ea | $ 8.50 |
