Engine Internal Parts Schematics (SR125R/SR125RB)

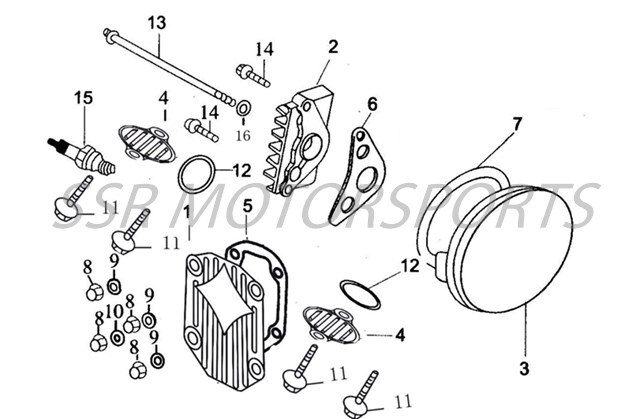

| CYLINDER HEAD COVERS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01648-09-00 | CYLINDER HEAD COVER | 1 | Pc. | $21.00 | |
| 2 | A01650-09-00 | RIGHT CYLINDER HEAD COVER | 1 | Pc. | $20.00 | |
| 3 | A02929-09-00 | LEFT CYLINDER HEAD COVER | MATTE | 1 | Pc. | $18.00 |
| 4 | A01651-09-00 | VALVE COVER | 2 | Pcs. | $8.00 | |
| 5 | A00162-13-00 | CYLINDER HEAD COVER GASKET | 1 | Pc. | $8.00 | |
| 6 | A00164-13-00 | RIGHT CYLINDER HEAD COVER GASKET | 1 | Pc. | $8.00 | |
| 7 | A00163-13-00 | LEFT CYLINDER HEAD COVER GASKET | 1 | Pc. | $8.00 | |
| 8 | A00003-22-36 | FLANGE CAP NUT | M7 | 4 | Pcs. | $1.50 |
| 9 | A00008-21-01 | WASHER | M7.2X14X2 | 3 | Pcs. | $1.50 |
| 10 | A00269-21-01 | COPPER WASHER | M7.3X14X2 | 1 | Pc. | $1.50 |
| 11 | A00003-19-05 | FLANGE BOLT | M6X16 | 4 | Pcs. | $1.50 |
| 12 | A00094-27-00 | O-RING | 29.6X3.2 | 2 | Pcs. | $4.00 |
| 13 | A00135-19-01 | BOLT | M6X110 | 1 | Pc. | $1.50 |
| 14 | A00421-19-08 | CASE FLANGE BOLT | M6X25 | 2 | Pcs. | $1.50 |
| 15 | C7HSA | SPARK PLUG | SUB FOR: TORCH A7TC | 1 | Pc. | $8.00 |
| 16 | A01177-09-00 | ALUMINUM WASHER | M6X13X2 | 1 | Pc. | $1.50 |

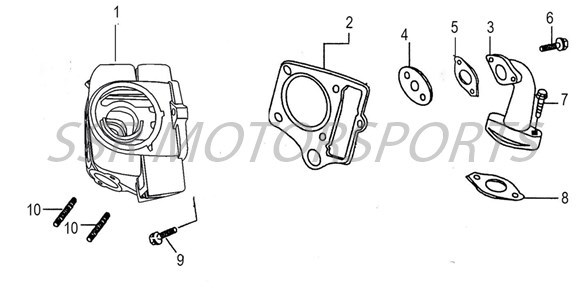

| CYLINDER HEAD | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01644-09-00 | CYLINDER HEAD ASSY | W/ VALVES | 1 | Assy. | $206.00 |
| 2 | A00161-13-00 | CYLINDER HEAD GASKET | 1 | Pc. | $10.00 | |
| 3 | A00293-14-00 | INTAKE MANIFOLD | YX-02 | 1 | Pc. | $36.00 |
| 4 | A00231-14-00 | INTAKE INSULATOR | Φ28 7MM | 1 | Pcs. | $8.00 |
| 5 | A00274-13-00 | CARBURETOR GASKET | 1 | Pc. | $4.00 | |
| 6 | A00424-19-08 | CASE FLANGE BOLT | M6X32 | 2 | Pc. | $1.50 |
| 7 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pc. | $1.50 |
| 8 | A00292-14-00 | INTAKE MANIFOLD GASKET | 1 | Pc. | $4.00 | |
| 9 | A00002-19-03 | BOLT | M6X23 - HEX / PHILLIPS | 1 | Pcs. | $1.50 |
| 10 | A00019-19-04 | STUD | M6X38 | 2 | Pcs. | $1.50 |

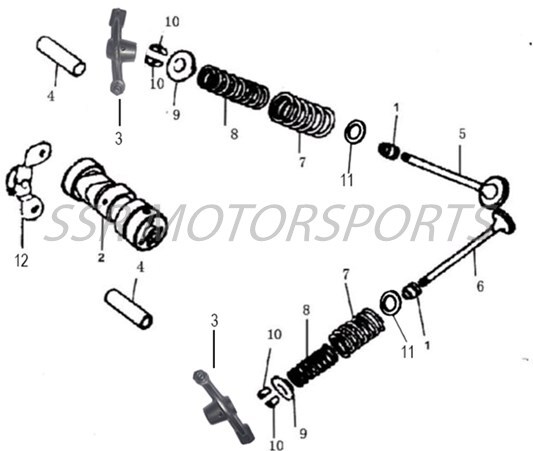

| VALVES | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02880-09-00 | VALVE STEM SEAL | 2 | Pcs. | $2.50 | |
| 2 | A02873-09-00 | CAMSHAFT | 1 | Pc. | $63.00 | |
| 3 | A02871-09-00 | ROCKER ARM ASSY | 2 | Assy. | $21.00 | |
| 4 | A02872-09-00 | ROCKER SHAFT | 2 | Pcs. | $6.00 | |
| 5 | A02863-09-00 | INTAKE VALVE | 1 | Pc. | $13.00 | |
| 6 | A02864-09-00 | EXHAUST VALVE | 1 | Pc. | $13.00 | |
| 7 | A02877-09-00 | OUTER VALVE SPRING | 2 | Pcs. | $6.00 | |
| 8 | A02878-09-00 | INNER VALVE SPRING | 2 | Pcs. | $6.00 | |
| 9 | A02876-09-00 | UPPER VALVE SPRING RETAINER | 2 | Pcs. | $7.00 | |
| 10 | A02874-09-00 | COLLET | 4 | Pcs. | $2.00 | |
| 11 | A02881-09-00 | LOWER VALVE SPRING RETAINER | 2 | Pcs. | $7.00 | |
| 12 | A01654-09-00 | ROCKER SHAFT RETAINER PLATE | 1 | Pc. | $6.00 | |

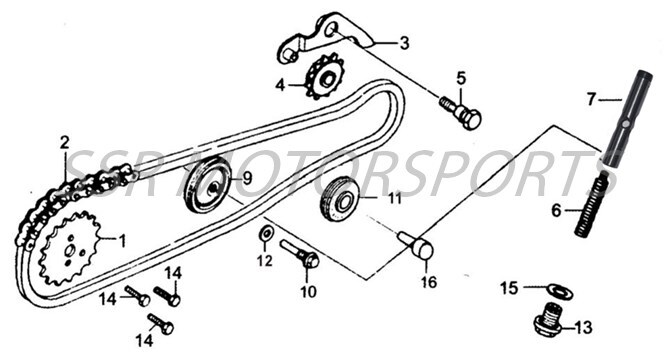

| TIMING CHAIN & TENSIONER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01329-09-00 | CAMSHAFT SPROCKET | 28T | 1 | Pcs. | $21.00 |
| 2 | A01255-09-00 | TIMING CHAIN | 84L | 1 | Pc. | $30.00 |
| 3 | A02444-09-00 | CAM CHAIN TENSIONER ARM | 1 | Pc. | $8.00 | |
| 4 | A01257-09-00 | TENSIONER SPROCKET | RUBBER | 1 | Pc. | $10.00 |
| 5 | A01321-09-00 | CHAIN TENSIONER ARM BOLT | 1 | Pc. | $2.00 | |
| 6 | A01322-09-00 | TENSIONER SPRING | M0.6X111.7 | 1 | Pc. | $2.50 |
| 7 | A01323-09-00 | TENSIONER ROD | 1 | Pc. | $7.00 | |
| 9 | A01300-09-00 | CHAIN ROLLER GUIDE | RUBBER | 1 | Pc. | $14.00 |
| 10 | A01303-09-00 | ROLLER GUIDE BOLT | 1 | Pc. | $1.50 | |
| 11 | A01304-09-00 | GUIDE SPROCKET | RUBBER | 1 | Pc. | $10.00 |
| 12 | A00094-21-01 | WASHER | M8X14X2 | 1 | Pc. | $1.50 |
| 13 | A02455-09-00 | TENSIONER BOLT | M14X1.5 | 1 | Pc. | $2.50 |
| 14 | A00025-19-03 | BOLT | M5X12 | 3 | Pcs. | $1.50 |
| 15 | A01307-09-00 | TENSIONER SEAL | 14.2X20X1.5 | 1 | Pc. | $1.50 |
| 16 | Mandrel, chain tensioning roller II | 泰ⅡC/左箱 | 1 | $1.50 | ||
| CYLINDER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02891-09-00 | CYLINDER | 1 | Pc. | $98.00 | |
| 2 | A00289-13-00 | CYLINDER BASE GASKET | 1 | Pc. | $11.00 | |
| 3 | A00002-19-03 | BOLT | M6X23 | 1 | Pc. | $1.50 |
| 4 | A00042-27-00 | O-RING | 9X1.6 | 1 | Pc. | $1.50 |
| 5 | A00001-23-00 | DOWEL PIN | M8X14 | 2 | Pcs. | $1.50 |
| 6 | A00008-27-00 | O-RING | 14.5X18.5X2.4 | 1 | Pc. | $1.50 |
| 7 | A00009-27-00 | O-RING | 11.5X16X2.5 | 1 | Pc. | $1.50 |
| 8 | A00003-23-00 | DOWEL PIN | 8X12 | 2 | Pcs. | $1.50 |

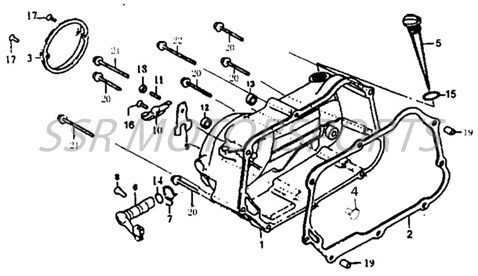

| RIGHT CRANKCASE COVER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01308-09-00 | CLUTCH COVER | 1 | Pc. | $85.00 | |
| 2 | A00120-13-00 | CLUTCH COVER GASKET | 1 | Pc. | $14.00 | |
| 3 | A01309-09-00 | CLUTCH ADJUSTMENT COVER | SSR LOGO | 1 | Pc. | $21.00 |
| 4 | A01278-09-00 | CLUTCH PUSH ROD | 1 | Pc. | $6.00 | |
| 5 | A01311-09-00 | OIL LEVEL DIPSTICK | 1 | Pc. | $8.00 | |
| 6 | A01312-09-00 | CLUTCH ACTUATOR | 1 | Pc. | $27.00 | |
| 7 | A01313-09-00 | CLUTCH ACTUATOR SPRING | 1 | Pc. | $1.50 | |
| 8 | A01314-09-00 | CLUTCH ACTUATOR PIN | 1 | Pc. | $1.50 | |
| 9 | A01315-09-00 | CLUTCH PRESSURE PLATE | 1 | Pc. | $10.00 | |
| 10 | A01316-09-00 | CLUTCH DETENT | 1 | Pc. | $11.00 | |
| 11 | A01317-09-00 | CLUTCH ACTUATOR SCREW | 1 | Pc. | $1.50 | |
| 12 | A00081-26-00 | OIL SEAL | 12X21X4 | 1 | Pc. | $6.00 |
| 13 | A00005-26-00 | OIL SEAL | 13.7X24X5 | 1 | Pc. | $6.00 |
| 14 | A00092-27-00 | O-RING | 13.7X1.5 | 1 | Pc. | $1.50 |
| 15 | A00090-27-00 | O-RING | 18X3 | 1 | Pc. | $2.50 |
| 16 | A00003-20-01 | SCREW | M6X16 | 1 | Pc. | $1.50 |
| 17 | A00007-20-01 | CS SCREW | M5X12 | 2 | Pcs. | $1.50 |
| 18 | A00001-22-01 | NUT | M6 | 1 | Pc. | $1.50 |
| 19 | A00003-23-00 | DOWEL PIN | 8X12 | 2 | Pcs. | $1.50 |
| 20 | A00426-19-08 | CASE FLANGE BOLT | M6X40 | 5 | Pcs. | $1.50 |
| 21 | A00436-19-08 | CASE FLANGE BOLT | M6X80 | 2 | Pcs. | $2.00 |
| 22 | A00430-19-08 | CASE FLANGE BOLT | M6X65 | 1 | Pc. | $2.00 |

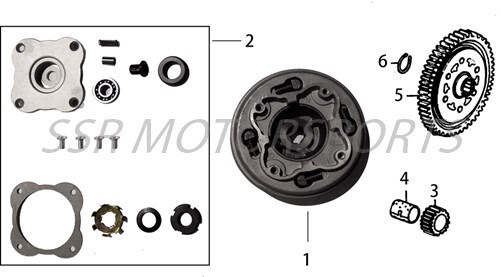

| CLUTCH | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02714-09-00 | CLUTCH ASSY | 1 | Assy. | $98.00 | |
| 2 | A03016-09-00 | CLUTCH LIFTER PLATE ASSY | 1 | Assy. | $30.00 | |
| 3 | A01302-09-00 | GEAR | 18T | 1 | Pc. | $18.00 |
| 4 | A01271-09-00 | PRIMARY DRIVE GEAR BUSHING | 1 | Pc. | $6.00 | |
| 5 | A01301-09-00 | GEAR | 67T | 1 | Pc. | $21.00 |
| 6 | A01285-09-00 | CIRCLIP | 1 | Pc. | $1.50 | |

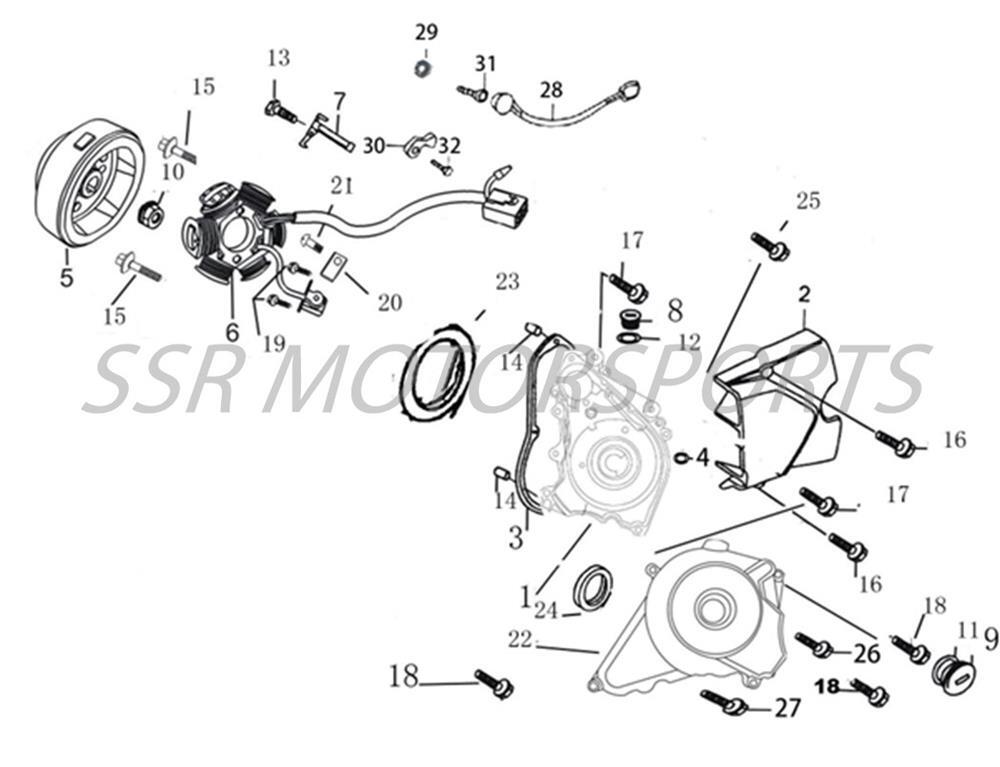

| LEFT CRANKCASE COVER & ELECTRICAL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02504-09-00 | STARTER MOTOR BRACKET | 1 | Pc. | $27.00 | |
| 2 | A02989-09-00 | COUNTERSHAFT SPROCKET COVER | 1 | Pc. | $26.00 | |
| 3 | A00244-13-00 | STATOR COVER GASKET | 1 | Pc. | $10.00 | |
| 4 | A00022-27-00 | O-RING | 7.5X1.8 | 1 | Pc. | $1.50 |
| 5 | A02513-09-00 | FLYWHEEL/STARTER CLUTCH | 1 | Pc. | $63.00 | |
| 6 | A02501-09-00 | STATOR ASSY | 1 | Assy. | $85.00 | |
| 7 | A02509-09-00 | STATOR WIRE CLAMP | 1 | Pc. | $2.50 | |
| 8 | A02512-09-00 | TIMING PLUG | 1 | Pc. | $4.00 | |
| 9 | A02310-09-00 | CRANK INSPECTION PLUG | 1 | Pc. | $14.00 | |
| 10 | A00004-22-08 | SPECIAL NUT | M10 | 1 | Pc. | $1.50 |
| 11 | A00055-27-00 | O-RING | 27X2.4 | 1 | Pc. | $1.50 |
| 12 | A00056-27-00 | O-RING | 13.8X2.5 | 1 | Pc. | $2.50 |
| 13 | A00025-19-01 | FLANGE BOLT | M6X14 | 1 | Pc. | $1.50 |
| 14 | A00003-23-00 | DOWEL PIN | 8X12 | 3 | Pcs. | $1.50 |
| 15 | A00420-19-08 | CASE FLANGE BOLT | M6X22 | 2 | Pcs. | $1.50 |
| 16 | A00422-19-08 | CASE FLANGE BOLT | M6X28 | 2 | Pcs. | $1.50 |
| 17 | A00064-19-01 | CASE FLANGE BOLT | M6X32 | 3 | Pcs. | $1.50 |
| 18 | A00425-19-08 | CASE FLANGE BOLT | M6X35 | 1 | Pc. | $1.50 |
| 19 | A00065-19-01 | BOLT | M5X12 | 2 | Pcs. | $1.50 |
| 20 | A00033-24-03 | WIRE CLAMP | 1 | Pc. | $1.50 | |
| 21 | A00121-19-01 | BOLT | M5X6 | 2 | Pcs. | $1.50 |
| 22 | A02514-09-00 | STATOR COVER | 1 | Pc. | $48.00 | |
| 23 | A00010-27-00 | O-RING | 107X2 | 1 | Pc. | $8.00 |
| 24 | A00059-26-00 | OIL SEAL | 30X42X4.5 | 1 | Pc. | $4.00 |
| 25 | A00437-19-08 | CASE FLANGE BOLT | M6X105 | 1 | Pc. | $2.00 |
| 26 | A00421-19-08 | CASE FLANGE BOLT | M6X25 | 1 | Pc. | $1.50 |
| 27 | A00428-19-08 | CASE FLANGE BOLT | M6X50 | 1 | Pc. | $1.50 |
| 28 | A02920-09-00 | RUBBER PLUG | 1 | Pc. | $4.00 | |
| 29 | A00011-21-01 | WASHER | 6X18X1.5 | 1 | Pc. | $1.50 |
| 30 | Baffle, valve camshaft | K170 | 1 | Pc. | $1.50 | |
| 31 | A00453-19-03 | HEX BOLT | M6X16 | 1 | Pc. | $4.00 |
| 32 | A00445-19-08 | CASE FLANGE BOLT | M6X12 | 1 | Pc. | $1.50 |

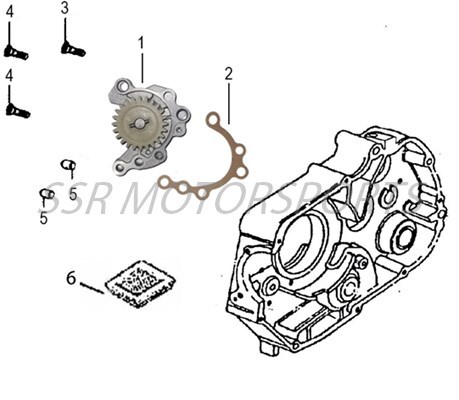

| OIL PUMP | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01867-09-00 | OIL PUMP ASSY | 1 | Assy. | $42.00 | |
| 2 | A00278-13-00 | OIL PUMP GASKET | 1 | Pc. | $6.00 | |
| 3 | A00142-19-01 | FLANGE BOLT | M6X30 | 1 | Pc. | $1.50 |
| 4 | A00143-19-01 | FLANGE BOLT | M6X35 | 2 | Pcs. | $2.50 |
| 5 | A00003-23-00 | DOWEL PIN | M8X12 | 2 | Pcs. | $1.50 |
| 6 | A01753-09-00 | OIL SCREEN | 1 | Pc. | $10.00 | |

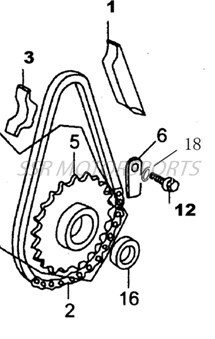

| STARTER CLUTCH | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02517-09-00 | CHAIN SLIDER | 1 | Pc. | $6.00 | |
| 2 | A03057-09-00 | STARTER CHAIN | 64L | 1 | Pc. | #N/A |
| 3 | A02515-09-00 | CHAIN TENSIONER SLIDER | 1 | Pc. | $6.00 | |
| 5 | A02518-09-00 | STARTER PINION GEAR | 1 | Pc. | $8.00 | |
| 6 | A02516-09-00 | GEAR RETAINER PLATE | 1 | Pc. | $6.00 | |
| 12 | A00417-19-08 | CASE FLANGE BOLT | M6X10 | 1 | Pc. | $1.50 |
| 16 | A00003-26-00 | OIL SEAL | 18.9X30X5 | 1 | Pc. | $4.00 |
| STARTER MOTOR | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A03058-09-00 | STARTER MOTOR | 1 | Assy. | $85.00 | |
| 2 | A00421-19-08 | CASE FLANGE BOLT | M6X25 | 2 | Pcs. | $1.50 |

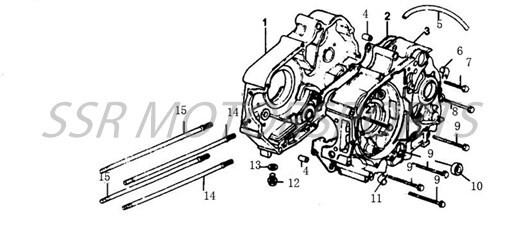

| CRANKCASE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01681-09-00 | RIGHT CRANKCASE HALF | 1 | Pc. | $126.00 | |
| 2 | A00166-13-00 | CRANKCASE GASKET | 1 | Pc. | $16.00 | |
| 3 | A01682-09-00 | LEFT CRANKCASE HALF | 1 | Pc. | $150.00 | |
| 4 | A00002-23-00 | DOWEL PIN | 10X14 | 1 | Pc. | $1.50 |
| 5 | A01683-09-00 | CRANKCASE VENT HOSE | M7X11X190 | 1 | Pc. | $10.00 |
| 6 | A01685-09-00 | HOSE RETAINER | 1 | Pc. | $1.50 | |
| 7 | A00428-19-08 | CASE FLANGE BOLT | M6X50 | 1 | Pc. | $1.50 |
| 8 | A00429-19-08 | CASE FLANGE BOLT | M6X60 | 2 | Pcs. | $2.00 |
| 9 | A00430-19-08 | CASE FLANGE BOLT | M6X65 | 3 | Pcs. | $2.00 |
| 10 | A00002-26-00 | OIL SEAL | 11.6X24X10 | 1 | Pcs. | $4.00 |
| 11 | A01100-09-00 | PIPE CLAMP | 1 | Pc. | $1.50 | |
| 12 | A01102-09-00 | OIL DRAIN BOLT | M12X1.5 | 1 | Pc. | $4.00 |
| 13 | A00012-21-04 | CRUSH WASHER | 12X20X1.5 | 1 | Pc. | $1.50 |
| 14 | A00137-19-04 | CYLINDER STUD A | 212MM | 2 | Pcs. | $11.00 |
| 15 | A00138-19-04 | CYLINDER STUD B | 204MM | 2 | Pcs. | $11.00 |

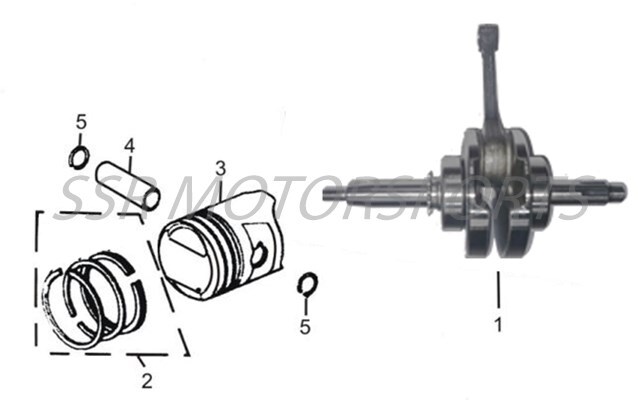

| CRANKSHAFT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01688-09-00 | CRANKSHAFT ASSY | 1 | Assy. | $142.00 | |
| 2 | A01689-09-00 | PISTON RING SET | 1 | Set | $51.00 | |
| 3 | A01690-09-00 | PISTON | 1 | Pc. | $51.00 | |
| 4 | A01691-09-00 | PISTON PIN | 1 | Pc. | $6.00 | |
| 5 | A01692-09-00 | PISTON PIN CLIP | 2 | Pcs. | $1.50 | |

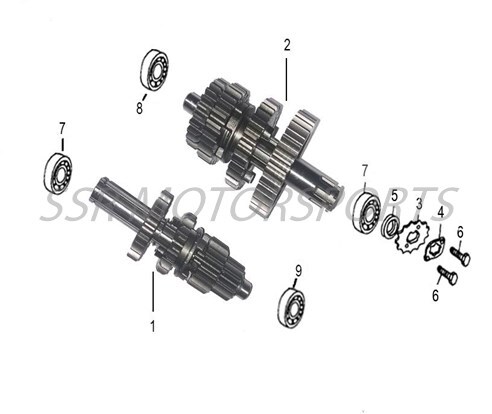

| TRANSMISSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00305-17-00 | MAIN SHAFT ASSY | 1 | Assy. | $98.00 | |
| 2 | A00306-17-00 | COUNTERSHAFT ASSY | 1 | Assy. | $98.00 | |
| 3 | A00307-07-00 | COUNTERSHAFT SPROCKET | 14T | 1 | Pc. | $14.00 |
| 4 | A00214-17-00 | SPROCKET RETAINER PLATE | 1 | Pc. | $4.00 | |
| 5 | A00001-26-00 | OIL SEAL | 17X29X5 | 1 | Pc. | $4.00 |
| 6 | A00015-19-03 | BOLT | M6X10 | 2 | Pcs. | $1.50 |
| 7 | A00008-28-00 | BEARING | 6203 | 2 | Pcs. | $27.00 |
| 8 | A00005-28-00 | BEARING | 6201 | 1 | Pc. | $8.00 |
| 9 | A00003-28-00 | LEFT MAINSHAFT BEARING | 6001 | 1 | Pc. | $8.00 |

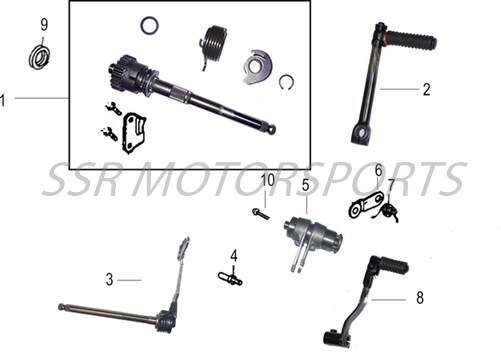

| GEARSHIFT DRUM & KICKSTARTER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01747-09-00 | KICKSTART SHAFT ASSEMBLY | L=209.5MM | 1 | Assy. | $98.00 |
| 2 | A00321-05-00 | KICKSTARTER LEVER ASSY | 1 | Assy. | $23.00 | |
| 3 | A01132-09-00 | GEARSHIFT SHAFT ASSY | 1 | Pc. | $63.00 | |
| 4 | A01140-09-00 | RETURN SPRING STOPPER | 1 | Pc. | $2.50 | |
| 5 | A01141-09-00 | GEARSHIFT DRUM ASSY | 1 | Assy. | $59.00 | |
| 6 | A01145-09-00 | GEAR SETTING ARM | BOLT ATTACHED | 1 | Pc. | $8.00 |
| 7 | A01147-09-00 | TORSION SETTING PLATE SPRING | C100 | 1 | Pcs. | $1.50 |
| 8 | A00389-05-00 | SHIFTER LEVER | 1 | Assy. | $27.00 | |
| 9 | A00005-26-00 | OIL SEAL | 13.7X24X5 | 1 | Pc. | $6.00 |
| 10 | A00453-19-03 | HEX BOLT | M6X16 | 1 | Pc. | $4.00 |
| ENGINE PART SETS | ||||||
 |

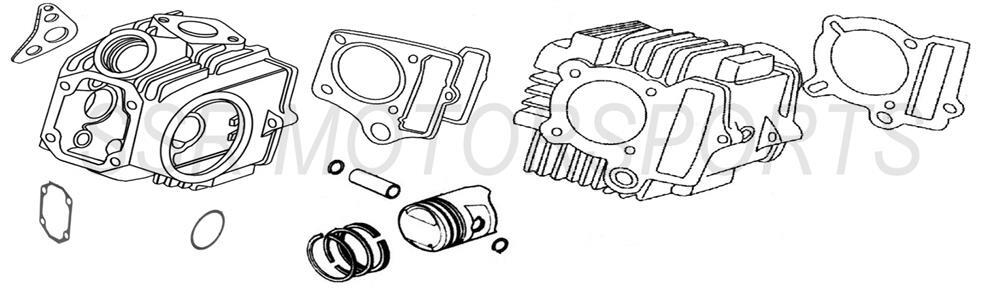

||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | COMPLETE TOP END KIT | 1 | Kit | $205.00 | ||
| 2 | COMPLETE ENGINE GASKET SET | 1 | Set | $63.00 | ||
| 3 | COMPLETE ENGINE SEALS SET | 1 | Set | $14.00 | ||
| 4 | COMPLETE TOP END GASKET SET | 1 | Set | $39.00 | ||
