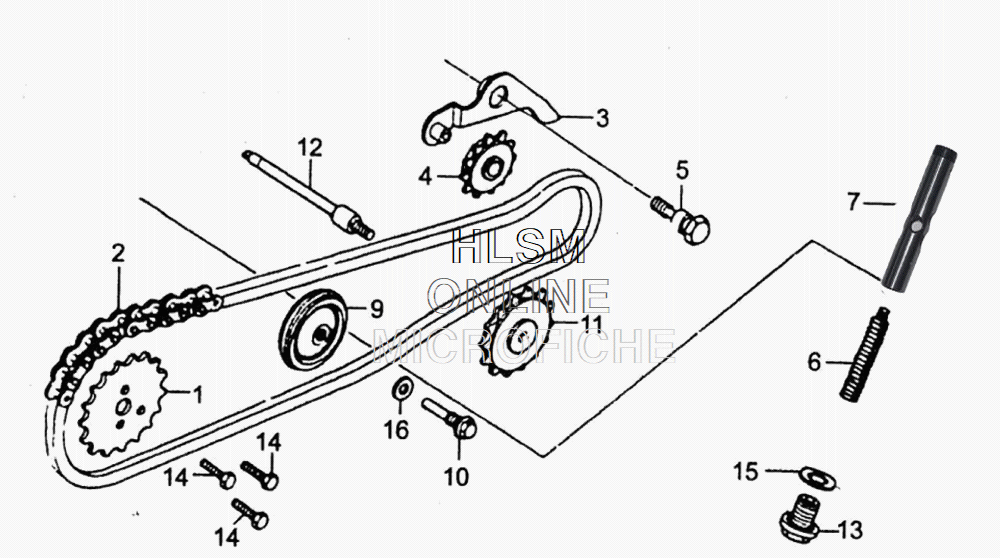

Cam Chain & Tensioner
CAM- CHAIN AND TENSIONER
| REF. NO. |
PART NO. / DESCRIPTION | PRICE EACH |
TS 90 |
| 1 |
101017-0268
TIMING DRIVEN SPROCKET
|
25.50 | 1 |
| 2 |
101017-0269
TIMING CHAIN
|
25.50 | 1 |
| 3 |
101017-0270
TENSIONING ARM
|
17.00 | 1 |
| 4 |
101017-0271
TENSIONING ROLLER
|
25.50 | 1 |
| 5 |
101017-0272
MANDREL, TENSIONING ARM
|
13.60 | 1 |
| 6 |
101017-0273
SPRING
|
17.00 | 1 |
| 7 |
101017-0274
TENSIONING BAR
|
25.50 | 1 |
| 9 |
101017-0275
CHAIN GUIDE ROLLER ASSEMBLY
|
17.00 | 1 |
| 10 |
101017-0276
PIN SHAFT, CHAIN GUIDE ROLLER
|
13.60 | 1 |
| 11 |
101017-0277
SPROCKET, OIL PUMP
|
25.50 | 1 |
| 12 |
101017-0278
SPROCKET SHAFT, OIL PUMP
|
17.00 | 1 |
| 13 |
101017-0279
SEAL SOCKET PLUG
|
17.00 | 1 |
| 14 |
101017-0280
HEXAGON HEAD BOLT (FULL-THREAD)
|
5.10 | 3 |
| 15 |
101017-0397
ALUMINUM WASHER
|
5.10 | 1 |
| 16 |
101017-0398
ALUMINUM WASHER
|
5.10 | 1 |
