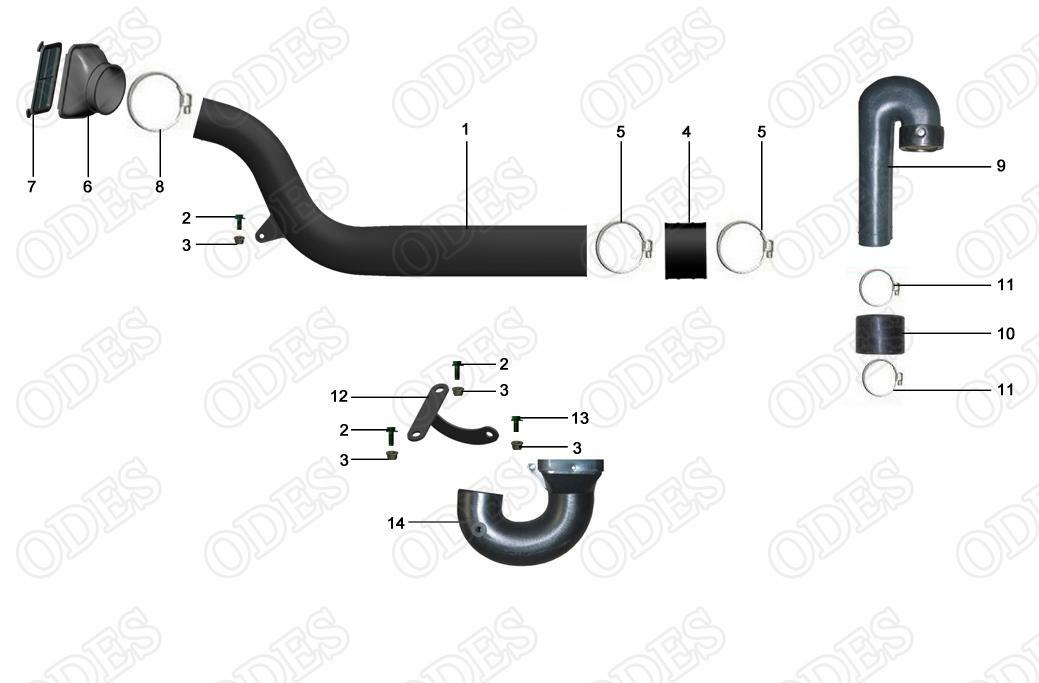

CVT INLET & OUTLET SYSTEM
| Item # | Part Number |
Description |
Specification |
Quantity |
Fits Models |
| 1 | 15107030000 | Cvt Air Inlet Pipe | 1 | 800-3C/800-4C/1000-11A（19）/1000-3A/1000-4A/800-3A/800-4A | |
| 2 | 01254060206 | Hex Flange Bolt | M6x20 | 3 | 800-3C(19)/800-4C(19)/ATV800(19)/1000-11A（19）/1000-3A(19)/1000-4A(19)/800-3A(19)/800-4A(19) |
| 3 | 04612060026 | Hex Flange Locking Nut | M6 | 4 | 800-3C(19)/800-4C(19)/ATV800(19)/1000-11A（19）/1000-3A(19)/1000-4A(19)/800-3A(19)/800-4A(19) |

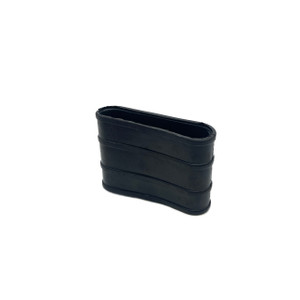

| 4 | 14607030010 | Cvt Air Inlet Pipe Boot | φ68 | 1 | 800-7/800-3C/800-4C/1000-11A（19）/1000-3A/1000-4A/800-3A/800-4A |
| 5 | 10907030020 | Clamp | φ64-φ76 | 2 | 800-7/800-3C/800-4C/ATV800/1000-11A/1000-3A/1000-4A/800-3A/800-4A |

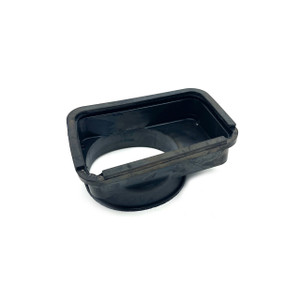

| 6 | 15107030030 | Cvt Air Inlet Vent | 1 | 800-3C/800-4C/1000-11A（19）/1000-3A/1000-4A/800-3A/800-4A | |

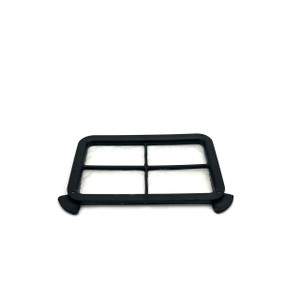

| 7 | 14607030040 | Cvt Air Inlet Pipe Filter | 1 | 800-7/800-3C/800-4C/1000-11A（19）/1000-3A/1000-4A/800-3A/800-4A | |
| 8 | 14507030210 | Clamp | φ70-φ89 | 1 | 800-7/800-3C/800-4C/1000-11A（19）/1000-3A/1000-4A/800-3A/800-4A |
| 9 | 10907040001 | Exhaust Pipe, Cvt | 1 | 800-3C/800-4C/800-3A/800-4A | |
| 10 | 10907040010 | Cvt Exhaust Pipe Boot | φ53 | 1 | 800-3C/800-4C/800-3A/800-4A |
| 11 | 10907040020 | Clamp | φ51-φ70 | 2 | 800-7/800-3C/800-4C/1000-11A/1000-3A/1000-4A/800-3A/800-4A |
| 12 | 10907030031 | Air Filter Air Intake Pipe Bracket | 1 | 800-3C/800-4C/800-3A/800-4A | |
| 13 | 01254060166 | Hex Flange Bolt | M6x16 | 1 | 800-3C(19)/800-4C(19)/ATV800(19)/1000-11A（19）/1000-3A(19)/1000-4A(19)/800-3A(19)/800-4A(19) |
| 14 | 21040401302 | Air Filter Air Inlet Pipe | 1 | 800-3C/800-4C/800-3A/800-4A |
