ELECTRICAL SYSTEM (2023 Aodes Trailcross 250)

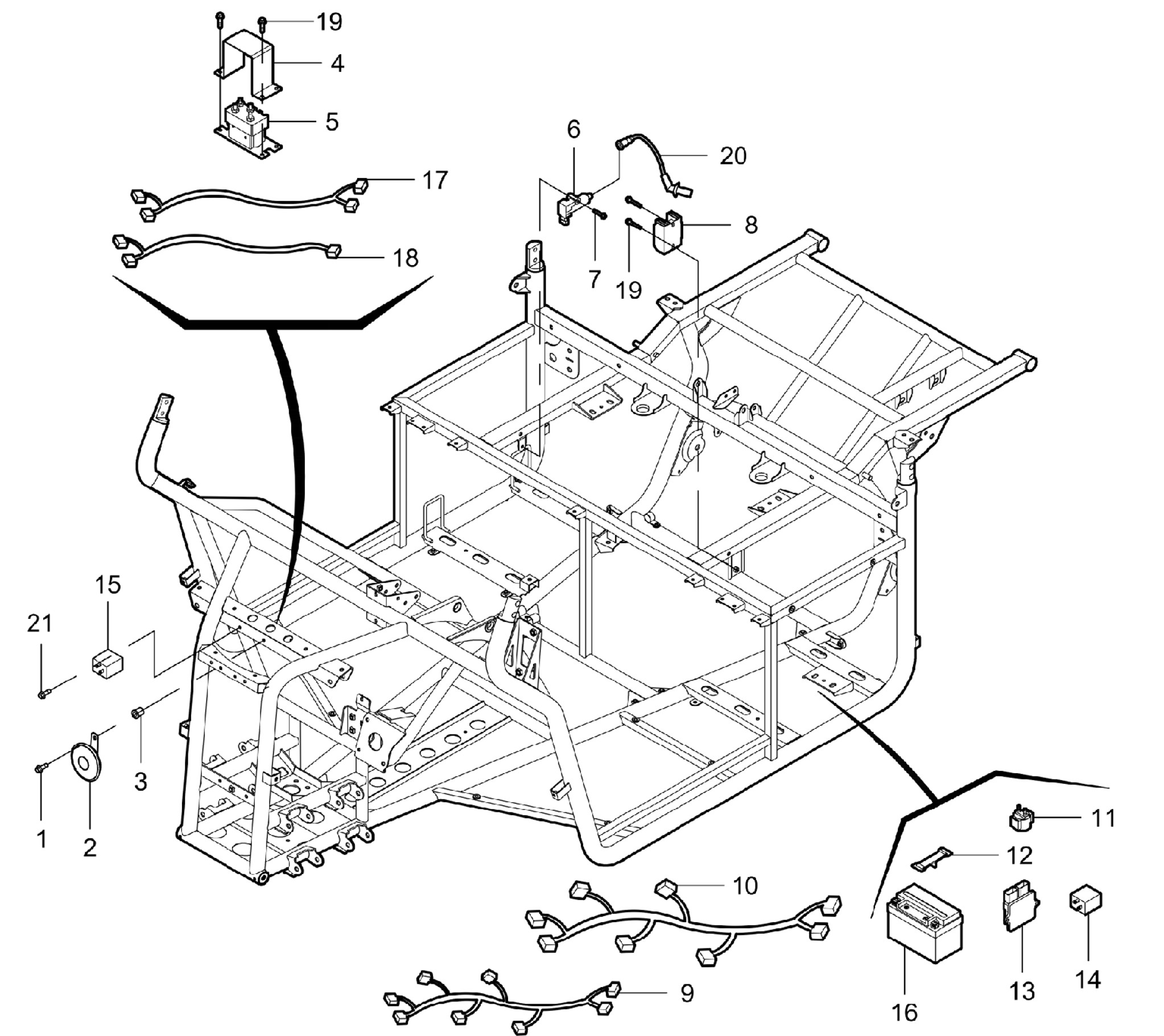

? AODES F15 Electrical System — Schematic Parts Breakdown
| # | Part Name | SKU | Description / Function | Price (USD) |
|---|---|---|---|---|
| 1 | Hex Flange Bolt M8×16 | 01224080166 | Frame mounting bolt for horn bracket | $0.60 |
| 2 | Horn (USA 1000cc/800cc/600cc) | 16109100000 | Main vehicle horn assembly | $11.31 |
| 3 | Rivet Nut M6 | 04512060127 | Frame insert for securing components | $0.60 |
| 4 | Winch Controller Box Cap | 10914150010 | Protective cap for winch control unit | $1.28 |
| 5 | Winch Controller Box | 10914150020 | Main control unit for winch operation | $77.30 |
| 6 | Ignition Coil | 21040400201 | Steps up voltage for spark plug ignition | $44.55 |
| 7 | Hex Flange Bolt M6×40 | 01214060406 | Mounting bolt for ignition/relay components | $0.60 |
| 8 | Voltage Regulator | 21020901701 | Regulates alternator output voltage | $48.86 |
| 9 | Engine Wire Harness | 16109410002 | Main engine connection harness | $147.14 |
| 10 | Wire Harness | 16109020040 | Primary chassis harness (lighting, ignition, etc.) | $216.00 |
| 11 | Start Relay | 10409350000 | Controls starter motor power from ignition switch | $14.57 |
| 12 | Battery Strap | 11909090010 | Secures battery in tray | $0.60 |
