FRONT DRIVE SYSTEM(GOLF VERSION) (2023 Aodes Trailcross 250)

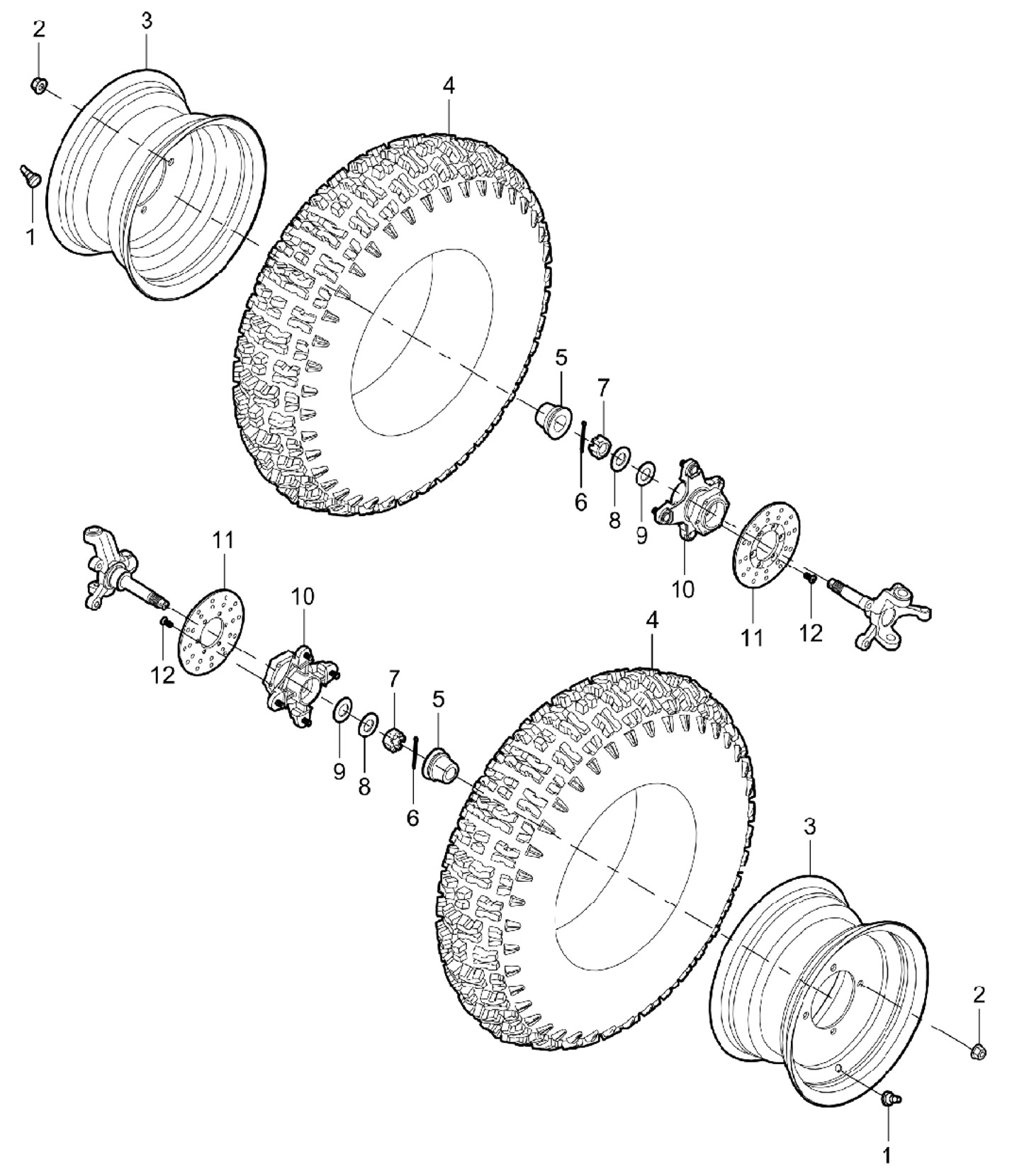

AODES Trailcross 250 FRONT DRIVE SYSTEM (Golf Version) — Parts Breakdown
| # | Part Name | SKU | Description / Function | Price (USD) |
|---|---|---|---|---|
| 1 | Air Valve | 10405230030 | Tire valve stem for inflation | $0.60 |
| 2 | Hexagonal Cap Nut M10×1.25 | 04322100021 | Locking nut for wheel or hub assembly | $0.60 |
| 3 | Alloy Wheel | 16105040400 | Lightweight alloy front wheel rim | $127.32 |
| 4 | Road Tire | 16105040390 | Front tire designed for paved or light trail use | $139.07 |
| 5 | Wheel Dust-Proof Cover | 16105040410 | Protects hub from dust and debris | $1.26 |
| 6 | Cotter Pin φ3.2×40 | 05011320405 | Safety pin to secure castle nut | $0.60 |
| 7 | Castle Nut 16×1.5 | 04722160022 | Locking nut for axle shaft | $0.60 |
| 8 | Washer φ16.3×31.5×1.75 | 16101140050 | Spacer washer for hub assembly | $0.60 |
| 9 | Washer φ16×φ36×3 | 06219163605 | Reinforced washer for hub retention | $0.60 |
| 10 | Front Hub | 16101030080 | Front wheel hub assembly | $118.80 |
| 11 | Front Disc | 16106010020 | Brake disc rotor for front braking system | $30.17 |
| 12 | Sunk Head Screw M6×12 | 03324060124 | Mounting bolt for brake disc or hub | — |
