FRONT DRIVE SYSTEM(DUMP BED VERSION) (2023 Aodes Trailcross 250)

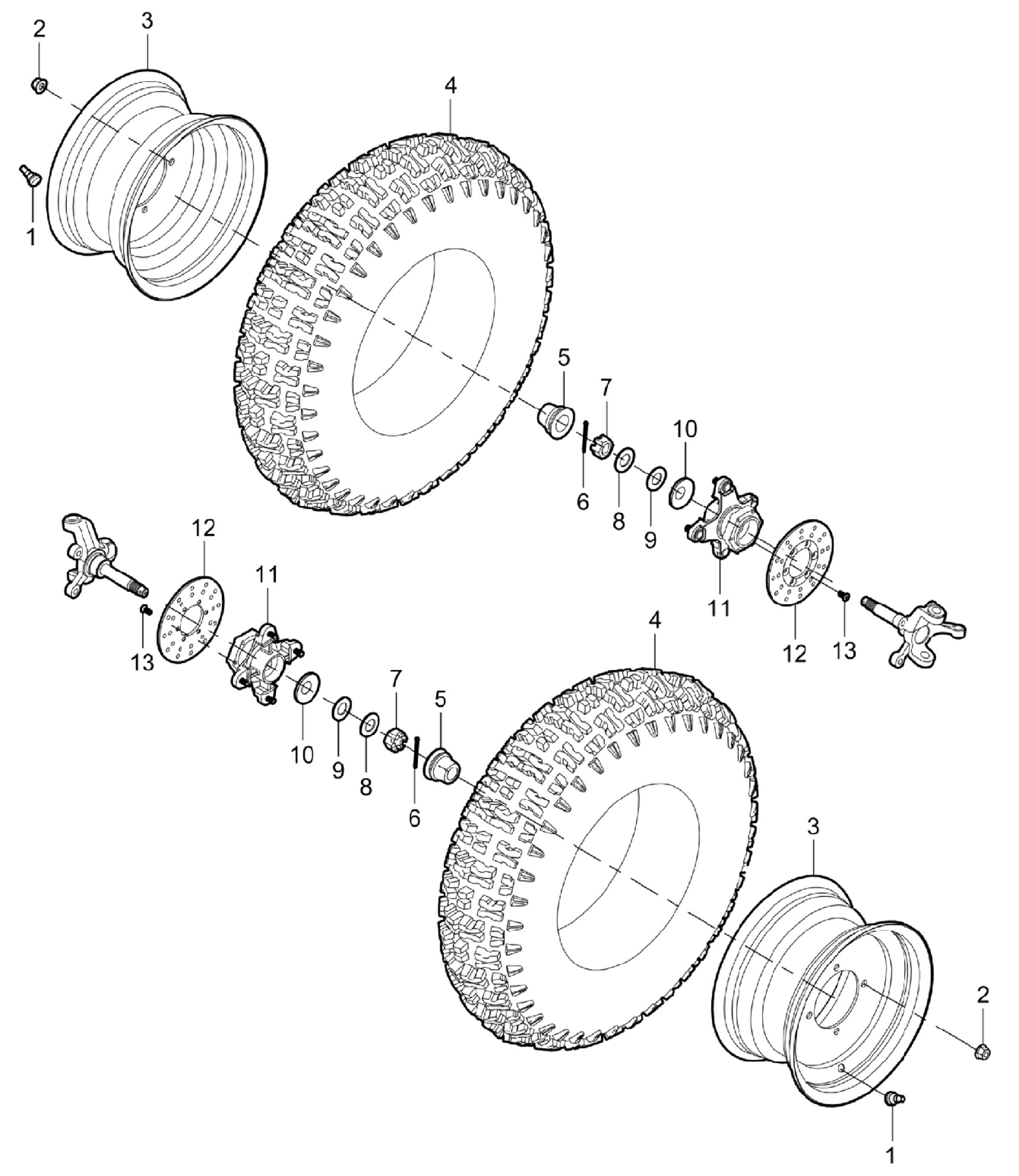

AODES F15 FRONT DRIVE SYSTEM (Dump Bed Version) — Parts Breakdown
| # | Part Name | SKU | Description / Function | Price (USD) |
|---|---|---|---|---|
| 1 | Air Valve | 10405230030 | Valve stem for front tire inflation | $0.60 |
| 2 | Hexagon Flange Locking Nut M10×1.25 | 04622100026 | Lock nut for securing front hub or wheel | $0.60 |
| 3 | Front Rim 10×5.5 | 16105030610 | Standard steel front wheel rim | $97.75 |
| 3 (Alt) | Alloy Wheel 10×5.5 | 16105030591 | Aluminum alloy upgrade front wheel | $135.70 |
| 4 | Front Tire 22×7-10 | 11905030080 | OEM front tire (rubber, treaded) | $101.20 |
| 4 (Alt) | Front Tire 22×7-10 | 16105030080 | Alternate SKU front tire | $138.00 |
| 5 | Wheel Dust-Proof Cover | 10405230020 | Protects wheel hub from debris | $14.14 |
| 6 | Cotter Pin φ3.2×40 | 05011320405 | Secures castle nut on hub shaft | $0.60 |
| 7 | Castle Nut 16×1.5 | 04722160022 | Locking nut for axle/hub assembly | $0.60 |
| 8 | Washer φ16.3×31.5×1.75 | 16101140050 | Spacer washer for hub | $0.60 |
| 9 | Washer φ16×φ36×3 | 06219163605 | Reinforced hub washer | $0.60 |
| 10 | Back Dust-Proof Bowl Gasket φ18.5×φ46 | 11905040030 | Gasket seal for front hub dust cover | $0.60 |
| 11 | Front Hub | 16101030080 | Main hub assembly for front wheel | $118.80 |
| 12 | Front Disc | 16106010020 | Brake disc rotor for front wheel | $30.17 |
| 13 | Sunk Head Screw M6×12 | 03324060124 | Bolt for securing disc or hub | — |
