Kayo Bull 125 EFI Parts Schematic

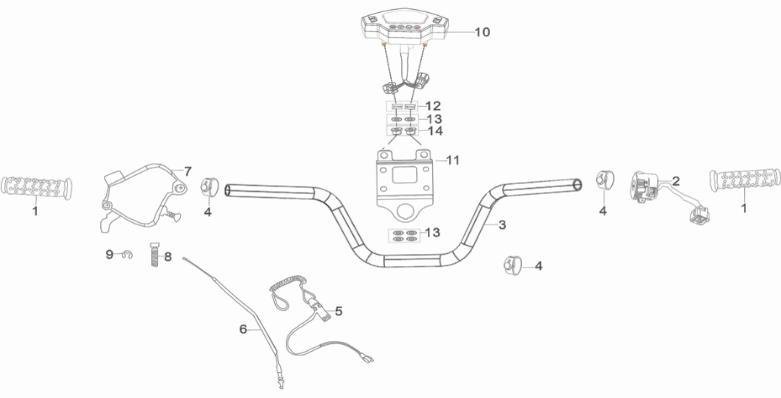

| No. | Parts No. | Model | EN name | Qty/vehicle | QTY | Retail |
| 1 | 602006-0032 | AU125-D | grip | 2 | /ea | $ 10.20 |
| 2 | 313001-0020 | AU125-D | multi-functional switch | 1 | /ea | $ 34.00 |
| 3 | 602001-0019 | AU125-D | handlebar | 1 | /ea | $ 42.50 |
| 4 | 908007-0071 | AU125-D | cable belt 91*12*2 | 3 | /ea | $ 1.70 |
| 5 | 313003-0011-02 | AU125-D | stop switch | 1 | /ea | $ 17.00 |
| 6 | 602014-0047 | AU125-D | throttle cable | 1 | /ea | $ 17.00 |
| 7 | 602011-0013 | AU125-D | accelerator | 1 | /ea | $ 25.50 |
| 8 | 903020-0060 | AU125-D | screw M4*20 | 1 | /ea | $ 8.50 |
| 9 | 903004-0009 | AU125-D | split circlip Φ2.5*6*0.3 | 1 | /ea | $ 6.80 |
| 10 | 311001-0037 | AU125-D | instrument | 1 | /ea | $ 127.50 |
| 11 | 315011-0008 | AU125-D | instrument bracket | 1 | /ea | $ 13.60 |
| 12 | 908007-0010 | AU125-D | rubber ring | 2 | /ea | $ 3.40 |
| 13 | 903002-0004-03 | AU125-D | washer Φ8*16*1.5 | 6 | /ea | $ 3.40 |
| 14 | 903006-0002-03 | AU125-D | nut M6 | 2 | /ea | $ 3.40 |

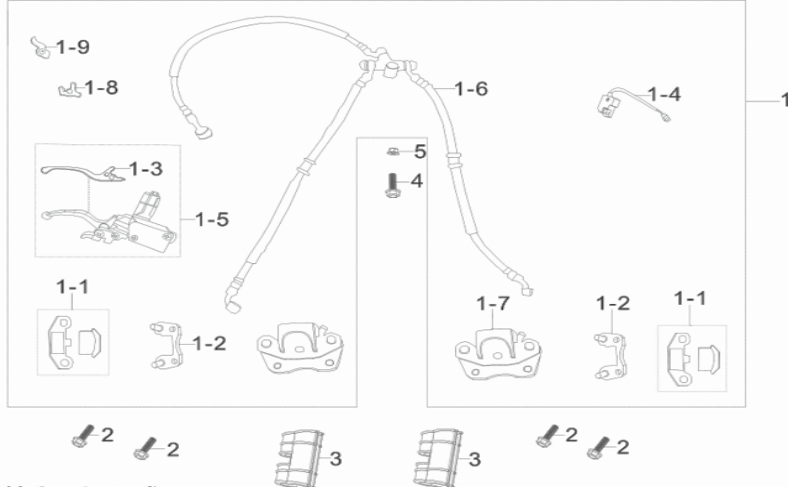

| No. | Parts No. | Model | EN name | Qty/vehicle | QTY | Retail |
| 1 | 404000-0204 | AU125-D | front brake assy | 1 | /ea | $ 110.50 |
| 1-1 | 404007-0011 | AU125-D | front brake pad | 2 | /ea | $ 13.60 |
| 1-2 | 404008-0011 | AU125-D | front brake bracket | 2 | /ea | $ 13.60 |
| 1-3 | 404002-0039 | AU125-D | front brake lever | 1 | /ea | $ 17.00 |
| 1-4 | 404011-0022 | AU125-D | front brake switch | 1 | /ea | $ 10.20 |
| 1-5 | 404003-0007 | AU125-D | front brake master cylinder | 1 | /ea | $ 28.90 |
| 1-6 | 404005-0035 | AU125-D | front brake oil pipe | 1 | /ea | $ 34.00 |
| 1-7 | 404006-0008 | AU125-D | front brake caliper | 1 | /ea | $ 34.00 |
| 1-8 | 404011-0009 | AU125-D | front brake lock tab/bracket | 1 | /ea | $ 13.60 |
| 1-9 | 404011-0010 | AU125-D | front brake lock kit | 1 | /ea | $ 13.60 |
| 2 | 903019-0012-03 | AU125-D | bolt M8*16 | 4 | /ea | $ 3.40 |
| 3 | 405010-0006 | AU125-D | front brake oil pipe clamp | 2 | /ea | $ 6.80 |
| 4 | 903018-0011-02 | AU125-D | bolt M8*35 | 1 | /ea | $ 5.10 |
| 5 | 903007-0005 | AU125-D | nut M8 | 1 | /ea | $ 3.40 |

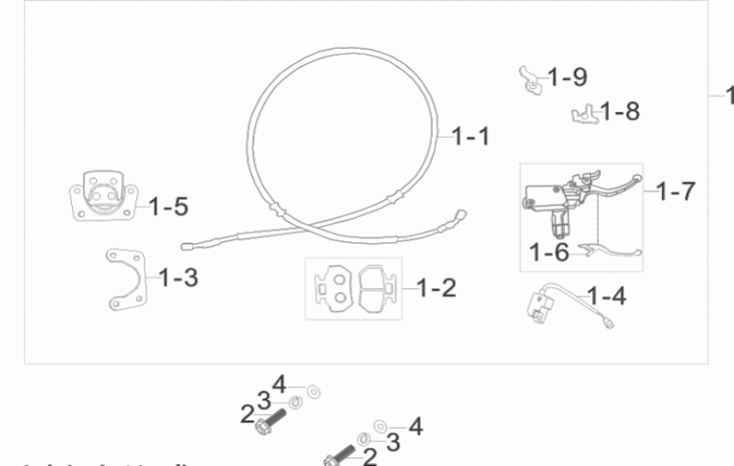

| No. | Parts No. | Model | EN name | Qty/vehicle | QTY | Retail |
| 1 | 405000-0110-02 | AU125-D | rear brake assy | 1 | /ea | $ 93.50 |
| 1-1 | 405006-0016 | AU125-D | rear brake oil pipe | 1 | /ea | $ 30.60 |
| 1-2 | 405008-0007 | AU125-D | rear brake pad | 1 | /ea | $ 13.60 |
| 1-3 | 405009-0019 | AU125-D | rear brake bracket | 1 | /ea | $ 13.60 |
| 1-4 | 405012-0016 | AU125-D | rear brake switch | 1 | /ea | $ 8.50 |
| 1-5 | 405007-0014 | AU125-D | rear brake caliper | 1 | /ea | $ 42.50 |
| 1-6 | 405002-0013 | AU125-D | rear brake lever | 1 | /ea | $ 17.00 |
| 1-7 | 405004-0011 | AU125-D | rear brake master cylinder | 1 | /ea | $ 28.90 |
| 1-8 | 405012-0008 | AU125-D | rear brake lock tab/bracket | 1 | /ea | $ 8.50 |
| 1-9 | 405012-0005 | AU125-D | rear brake lock kit | 1 | /ea | $ 13.60 |
| 2 | 903019-0014-03 | AU125-D | bolt M8*25 | 2 | /ea | $ 5.10 |
| 3 | 903001-0003-02 | AU125-D | washer Φ8*13*2 | 2 | /ea | $ 3.40 |
| 4 | 903002-0004-03 | AU125-D | washer Φ8*16*1.5 | 2 | /ea | $ 3.40 |

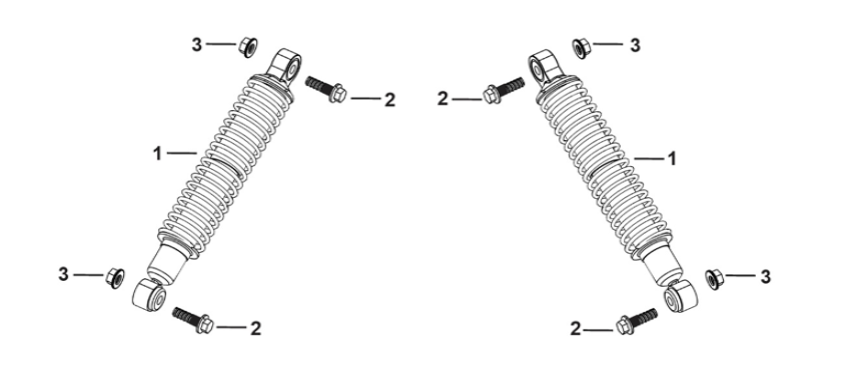

| No. | Parts No. | Model | EN name | Qty/vehicle | QTY | Retail |
| 1 | 501000-0094 | AU125-D | front shock L265 | 2 | /ea | $ 59.50 |
| 1 | 501000-0164 | AU125-D | front shock L275 (1.4.25~) | 2 | /ea | $ 59.50 |
| 2 | 903018-0032-02 | AU125-D | bolt M10*40*1.25 | 4 | /ea | $ 6.80 |
| 3 | 903007-0006-02 | AU125-D | nut M10*1.25 | 4 | /ea | $ 5.10 |

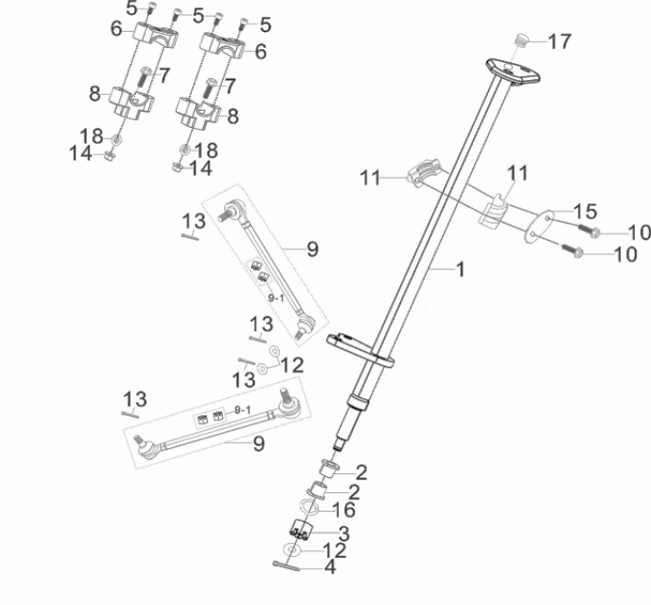

| No. | Parts No. | Model | EN name | Qty/vehicle | QTY | Retail |
| 1 | 566000-0013-02 | AU125-D | steering column | 1 | /ea | $ 68.00 |
| 1 | 566000-0036-01 | AU125-D | steering column(12.27.24~) | 1 | /ea | $ 68.00 |
| 2 | 902002-0031 | AU125-D | busher Φ15*29*H20+Ф21+H17 | 2 | /ea | $ 5.10 |
| 3 | 903008-0009-02 | AU125-D | nut M10*1.25 | 1 | /ea | $ 6.80 |
| 4 | 904002-0004-03 | AU125-D | cotter pin 3*20 | 1 | /ea | $ 3.40 |
| 5 | 903013-0022-03 | AU125-D | screw M8*35 | 4 | /ea | $ 5.10 |
| 6 | 601003-0023 | AU125-D | upper raiser | 2 | /ea | $ 10.20 |
| 7 | 903017-0011-02 | AU125-D | bolt M10*30*1.5 | 2 | /ea | $ 5.10 |
| 8 | 601004-0028 | AU125-D | lower raiser | 2 | /ea | $ 10.20 |
| 9 | 603001-0006 | AU125-D | steering linkage | 2 | /ea | $ 30.60 |
| 9-1 | 603005-0009 | AU125-D | nut M10*1.25*H9 | 4 | /ea | $ 5.10 |
| 10 | 903018-0015-03 | AU125-D | bolt M8*55 | 2 | /ea | $ 6.80 |
| 11 | 603004-0003 | AU125-D | steering raiser | 2 | /ea | $ 13.60 |
| 12 | 903002-0008-03 | AU125-D | washer Φ10*20*2 | 3 | /ea | $ 3.40 |
| 13 | 904002-0002-03 | AU125-D | cotter pin 2.5*24 | 4 | /ea | $ 3.40 |
| 14 | 903007-0007-03 | AU125-D | nut M10*1.5 | 2 | /ea | $ 5.10 |
| 15 | 568000-0001-02 | AU125-D | steering column lock plate | 1 | /ea | $ 8.50 |
| 16 | 903003-0003 | AU125-D | washer Φ15*21 | 1 | /ea | $ 6.80 |
| 17 | 908004-0003 | AU125-D | plug Φ10*Φ15*14 | 1 | /ea | $ 6.80 |
| 18 | 903001-0005-02 | AU125-D | washer Φ10.5*16*3 | 2 | /ea | $ 3.40 |

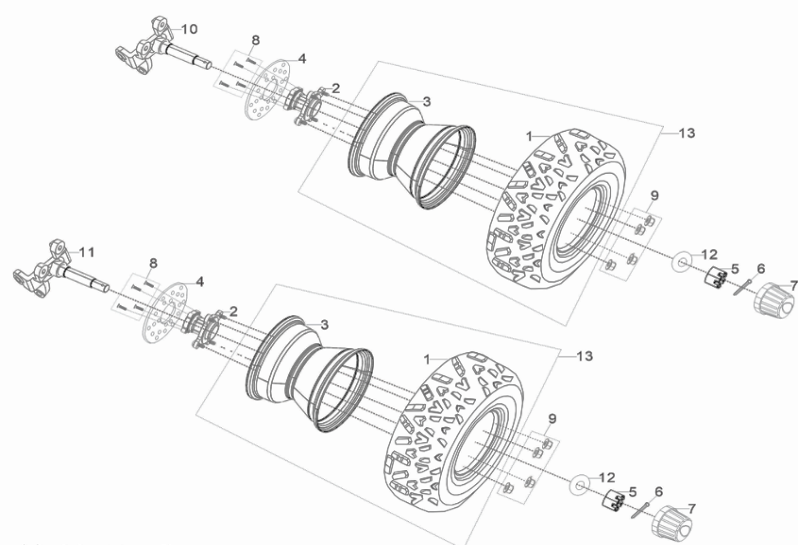

| No. | Parts No. | Model | EN name | Qty/vehicle | QTY | Retail |
| 1 | 401006-0030 | AU125-D | front tyre AT19*7.0-8 | 2 | /ea | $ 76.50 |
| 2 | 401003-0008 | AU125-D | front hub seat | 2 | /ea | $ 51.00 |
| 3 | 401000-0058 | AU125-D | front rim 8*5.5AT-4/88 /67/+20 | 2 | /ea | $ 59.50 |
| 4 | 404001-0014 | AU125-D | front brake disc Φ40.4*Φ110/50 | 2 | /ea | $ 27.20 |
| 5 | 903008-0011-02 | AU125-D | nut M14*1.5*H18 | 2 | /ea | $ 8.50 |
| 6 | 904002-0004-03 | AU125-D | cotter pin 3*20 | 2 | /ea | $ 3.40 |
| 7 | 401011-0001 | AU125-D | hub cover | 2 | /ea | $ 8.50 |
| 8 | 903014-0001-03 | AU125-D | screw M6*16 | 8 | /ea | $ 5.10 |
| 9 | 903007-0005 | AU125-D | nut M8 | 8 | /ea | $ 3.40 |
| 10 | 603002-0009 | AU125-D | left knuckle | 1 | /ea | $ 40.80 |
| 11 | 603002-0010 | AU125-D | right knuckle | 1 | /ea | $ 40.80 |
| 12 | 903002-0013-03 | AU125-D | washer Φ15*30*2.5 | 2 | /ea | $ 6.80 |
| 13 | C90004-0032 | AU125-D | R-front wheel assy | 1 | /ea | $ 136.00 |
| 13 | C90004-0032 | AU125-D | L-front wheel assy | 1 | /ea | $ 136.00 |

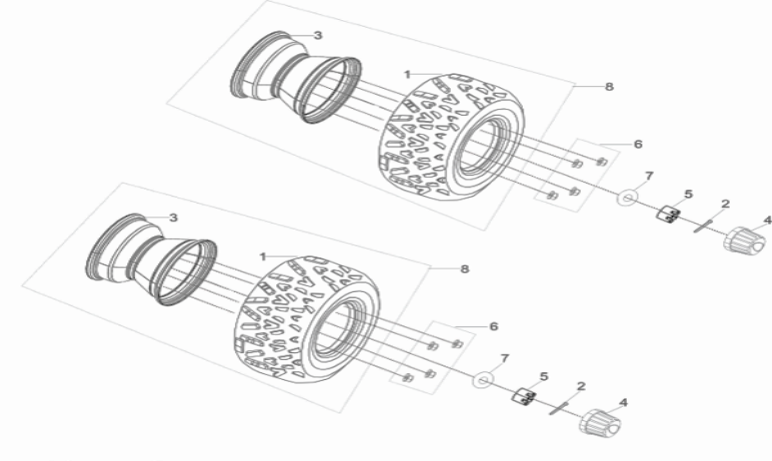

| No. | Parts No. | Model | EN name | Qty/vehicle | QTY | Retail |
| 1 | 402006-0020 | AU125-D | rear tyre AT18*9.5-8 | 2 | /ea | $ 85.00 |
| 2 | 904002-0006-03 | AU125-D | cotter pin 4*28 | 2 | /ea | $ 3.40 |
| 3 | 402000-0064 | AU125-D | rear rim 8*7.0AT-4/110 90/+20 | 2 | /ea | $ 59.50 |
| 4 | 401011-0001 | AU125-D | hub cover | 2 | /ea | $ 8.50 |
| 5 | 903008-0030-02 | AU125-D | nut M16*1.5*H18 | 2 | /ea | $ 8.50 |
| 6 | 903007-0006-02 | AU125-D | nut M10*1.25 | 8 | /ea | $ 6.80 |
| 7 | 903002-0014-02 | AU125-D | washer Φ17*48*3 | 2 | /ea | $ 5.10 |
| 8 | C90004-0033 | AU125-D | R-rear wheel assy | 1 | /ea | $ 144.50 |
| 8 | C90004-0033 | AU125-D | L-rear wheel assy | 1 | /ea | $ 144.50 |

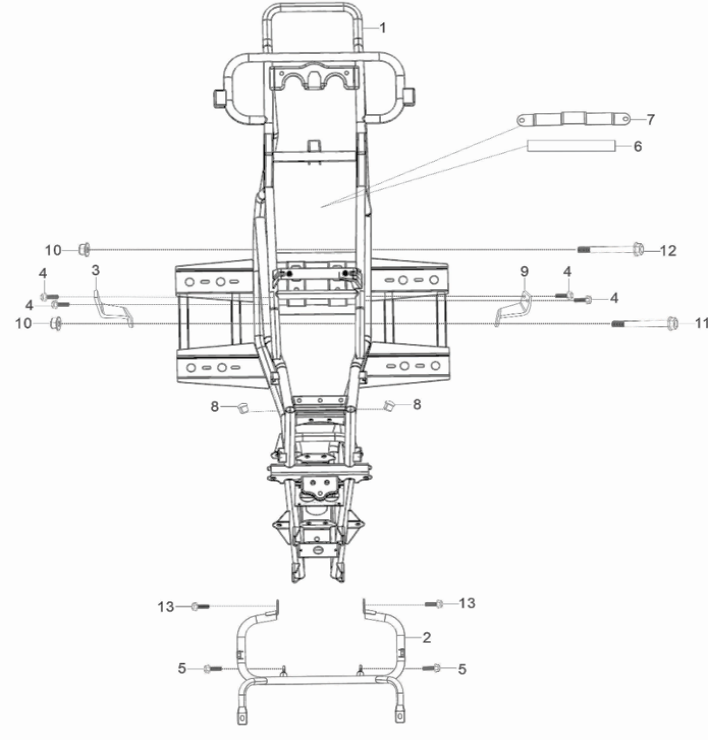

| No. | Parts No. | Model | EN name | Qty/vehicle | QTY | Retail |
| 1 | 561000-0141-01 | AU125-D | frame | 1 | /ea | $ 493.00 |
| 2 | 704000-0015 | AU125-D | front subframe | 1 | /ea | $ 68.00 |
| 3 | 568000-0005 | AU125-D | right engine lug 54*34*42/3*Φ9 | 1 | /ea | $ 17.00 |
| 4 | 903020-0030-02 | AU125-D | bolt M8*16 | 4 | /ea | $ 3.40 |
| 5 | 903019-0012-03 | AU125-D | bolt M8*16 | 2 | /ea | $ 3.40 |
| 6 | 909010-0011 | AU125-D | EVA 240*25*2mm | 1 | /ea | $ 5.10 |
| 7 | 568000-0068 | AU125-D | seat front limit bracket | 1 | /ea | $ 17.00 |
| 8 | 908007-0015 | AU125-D | rubber plug Φ14*Φ19*17 | 2 | /ea | $ 5.10 |
| 9 | 568000-0003 | AU125-D | engine lug | 1 | /ea | $ 17.00 |
| 10 | 903007-0005 | AU125-D | nut M8 | 2 | /ea | $ 6.80 |
| 11 | 903018-0023 | AU125-D | bolt M8*110 | 1 | /ea | $ 13.60 |
| 12 | 903018-0022 | AU125-D | bolt M8*105 | 1 | /ea | $ 20.40 |
| 13 | 903019-0011-03 | AU125-D | bolt M8*12 | 2 | /ea | $ 3.40 |

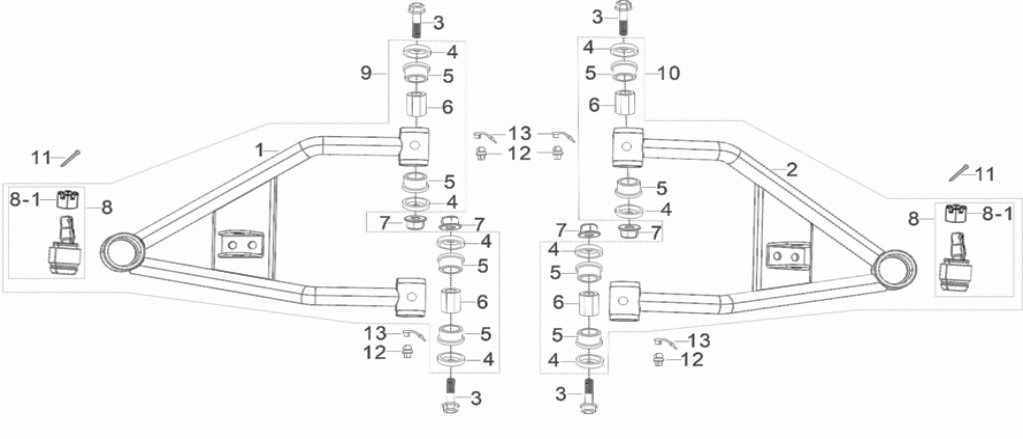

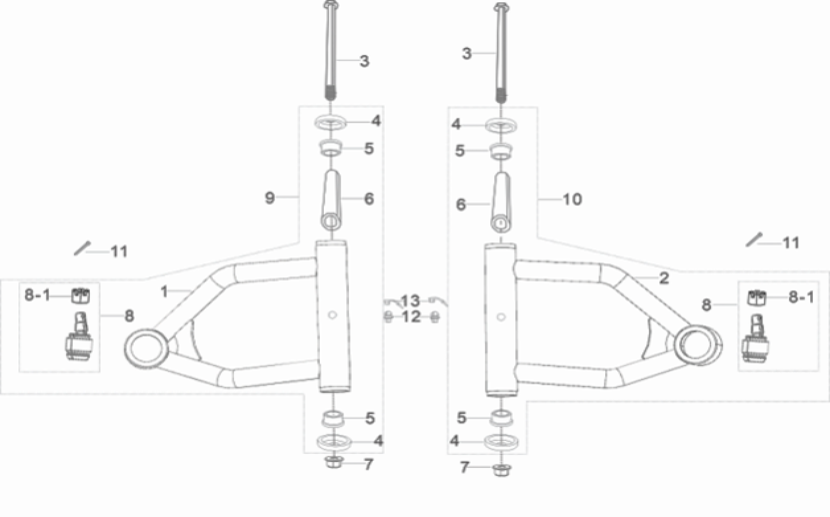

| No. | Parts No. | Model | EN name | Qty/vehicle | QTY | Retail |
| 1 | 565000-0101-01 | AU125-D | right lower rocker arm | 1 | /ea | $ 59.50 |
| 2 | 565000-0100-01 | AU125-D | left lower rocker arm | 1 | /ea | $ 59.50 |
| 3 | 903018-0035-02 | AU125-D | bolt M10*70*1.25 | 4 | /ea | $ 6.80 |
| 4 | 908007-0006 | AU125-D | sealing cover | 8 | /ea | $ 5.10 |
| 5 | 902002-0029 | AU125-D | busher Φ16*27*14+Ф23+H11 | 8 | /ea | $ 5.10 |
| 6 | 902001-0026 | AU125-D | steel busher Φ10.2*16*H46 | 4 | /ea | $ 6.80 |
| 7 | 903007-0006-02 | AU125-D | nut M10*1.25 | 4 | /ea | $ 5.10 |
| 8 | 603003-0011 | AU125-D | linkage ball | 2 | /ea | $ 25.50 |
| 8-1 | 603005-0009 | AU125-D | nut M10*1.25*H9 | 2 | /ea | $ 6.80 |
| 9 | C90004-0222 | AU125-D | right lower rocker arm assy. | 1 | /ea | $ 76.50 |
| 10 | C90004-0221 | AU125-D | left lower rocker arm assy. | 1 | /ea | $ 76.50 |
| 11 | 904002-0002-03 | AU125-D | cotter pin 2.5*24 | 2 | /ea | $ 3.40 |
| 12 | 906004-0012 | AU125-D | Grease nipple M6 | 4 | /ea | $ 5.10 |
| 13 | 906004-0013 | AU125-D | Grease nipple coverΦ6.5 | 4 | /ea | $ 3.40 |
| No. | Parts No. | Model | EN name | Qty/vehicle | QTY | Retail |
| 1 | 565000-0099-01 | AU125-D | right upper rocker arm | 1 | /ea | $ 59.50 |
| 2 | 565000-0098-01 | AU125-D | left upper rocker arm | 1 | /ea | $ 59.50 |
| 3 | 901001-0005 | AU125-D | flange axle | 2 | /ea | $ 13.60 |
| 4 | 908007-0006 | AU125-D | sealing cover | 4 | /ea | $ 5.10 |
| 5 | 902002-0038 | AU125-D | plastic busher | 4 | /ea | $ 5.10 |
| 6 | 902001-0040 | AU125-D | steel busher Φ10.5*16*H163 | 2 | /ea | $ 13.60 |
| 7 | 903007-0006-02 | AU125-D | nut M10*1.25 | 2 | /ea | $ 5.10 |
| 8 | 603003-0011 | AU125-D | linkage ball | 2 | /ea | $ 25.50 |
| 8-1 | 603005-0009 | AU125-D | nut M10*1.25*H9 | 2 | /ea | $ 6.80 |
| 9 | C90004-0220 | AU125-D | right upper rocker arm assy | 1 | /ea | $ 76.50 |
| 10 | C90004-0219 | AU125-D | left upper rocker arm assy | 1 | /ea | $ 76.50 |
| 11 | 904002-0002-03 | AU125-D | cotter pin 2.5*24 | 2 | /ea | $ 3.40 |
| 12 | 906004-0012 | AU125-D | Grease nipple M6 | 2 | /ea | $ 5.10 |
| 13 | 906004-0013 | AU125-D | Grease nipple coverΦ6.5 | 2 | /ea | $ 3.40 |

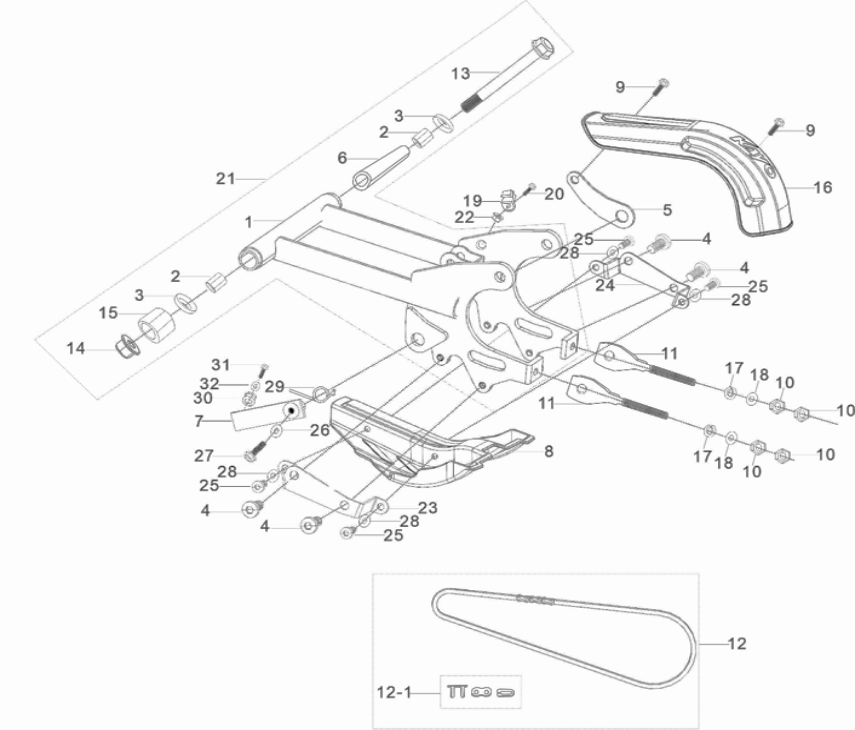

| No. | Parts No. | Model | EN name | Qty/vehicle | QTY | Retail |
| 1 | 563000-0041-02 | AU125-D | fork | 1 | /ea | $ 76.50 |
| 2 | 902001-0053 | AU125-D | busher Φ12.3*24*29 | 2 | /ea | $ 6.80 |
| 3 | 908007-0007 | AU125-D | sealing coverΦ12*35*H8+Φ27.5*6.5 | 2 | /ea | $ 6.80 |
| 4 | 903015-0005-02 | AU125-D | screw M8*16 | 4 | /ea | $ 3.40 |
| 5 | 568000-0209-02 | AU125-D | chain cover bracket | 1 | /ea | $ 6.80 |
| 6 | 901003-0007 | AU125-D | inner lining pipe Φ12.5*19*L143 | 1 | /ea | $ 17.00 |
| 7 | 568000-0015 | AU125-D | Chain tensioner | 1 | /ea | $ 25.50 |
| 7-1 | 568000-0219 | AU125-D | chain tensioner bracket | 1 | /ea | $ 13.60 |
| 7-1 | 568000-0219-02 | AU125-D | chain tensioner bracket(12.27.24~) | 1 | /ea | $ 13.60 |
| 8 | 803002-0019 | AU125-D | fork lower protector | 1 | /ea | $ 25.50 |
| 9 | 903018-0003-03 | AU125-D | bolt M6*12 | 2 | /ea | $ 3.40 |
| 10 | 903005-0006-02 | AU125-D | nut M8 | 4 | /ea | $ 3.40 |
| 11 | 203003-0009 | AU125-D | chain adjuster | 2 | /ea | $ 11.90 |
| 12 | 203000-0086 | AU125-D | chain 420-86 | 1 | /ea | $ 42.50 |
| 12 | 203000-0118 | AU125-D | chain 420-88(11.30.24~0 | 1 | /ea | $ 42.50 |
| 12-1 | 203001-0002 | AU125-D | chain joint | 1 | /ea | $ 6.80 |
| 13 | 901001-0022 | AU125-D | flange axle | 1 | /ea | $ 20.40 |
| 14 | 903007-0008-02 | AU125-D | nut M12*1.25 | 1 | /ea | $ 8.50 |
| 15 | 203004-0024 | AU125-D | chain guide slider | 1 | /ea | $ 20.40 |
| 16 | 203004-0064 | AU125-D | chain cover | 1 | /ea | $ 17.00 |
| 17 | 903001-0003-02 | AU125-D | washer Φ8*13*2 | 2 | /ea | $ 3.40 |
| 18 | 903002-0004-03 | AU125-D | washer Φ8*16*1.5 | 2 | /ea | $ 3.40 |
| 19 | 405010-0001 | AU125-D | clamp Φ10 | 1 | /ea | $ 5.10 |
| 20 | 903019-0004 | AU125-D | bolt M6*16 | 1 | /ea | $ 3.40 |
| 21 | C90004-0215 | AU125-D | fork assy | 1 | /ea | $ 127.50 |
| 22 | 903007-0003 | AU125-D | nut M6 | 1 | /ea | $ 3.40 |
| 23 | 568000-0210 | AU125-D | left chain bracket holding | 1 | /ea | $ 8.50 |
| 24 | 568000-0211 | AU125-D | right chain bracket holding | 1 | /ea | $ 8.50 |
| 25 | 903015-0002-02 | AU125-D | screw M6*16 | 4 | /ea | $ 3.40 |
| 26 | 903002-0005-03 | AU125-D | washer Φ8*28*1.5 | 1 | /ea | $ 3.40 |
| 27 | 903019-0011-03 | AU125-D | bolt M8*12 | 1 | /ea | $ 3.40 |
| 28 | 908003-0002 | AU125-D | washer Φ5.5*14.5*2 | 4 | /ea | $ 2.55 |
| 29 | 407003-0018 | AU125-D | chain tensioner twist spring(11.9.24~) | 1 | /ea | $ 8.50 |
| 30 | 203004-0013 | AU125-D | chain roller(11.9.24~) | 1 | /ea | $ 10.20 |
| 31 | 903019-0002 | AU125-D | bolt M6*12(11.9.24~) | 1 | /ea | $ 3.40 |
| 32 | 903002-0001-03 | AU125-D | washerΦ6*12*1.5(11.9.24~) | 1 | /ea | $ 3.40 |
| No. | Parts No. | Model | EN name | Qty/vehicle | QTY | Retail |
| 1 | 502000-0049 | AU125-D | rear shock L265 | 1 | /ea | $ 64.60 |
| 1 | 502000-0116 | AU125-D | rear shock L275 | 1 | /ea | $ 64.60 |
| 2 | 903018-0032-02 | AU125-D | bolt M10*40*1.25 | 2 | /ea | $ 6.80 |
| 3 | 903007-0006-02 | AU125-D | nut M10*1.25 | 2 | /ea | $ 5.10 |
| No. | Parts No. | Model | EN name | Qty/vehicle | QTY | Retail |
| 1 | I01000-0030 | AU125-D | engine | 1 | /ea | $ 544.00 |
| 2 | 201001-0009 | AU125-D | manual engine shift lever | 1 | /ea | $ 34.00 |
| 3 | 903001-0003-02 | AU125-D | washer Φ8*13*2 | 2 | /ea | $ 3.40 |
| 4 | 903002-0004-03 | AU125-D | washer Φ8*16*1.5 | 2 | /ea | $ 3.40 |
| 5 | 903019-0013-03 | AU125-D | bolt M8*20 | 2 | /ea | $ 3.40 |

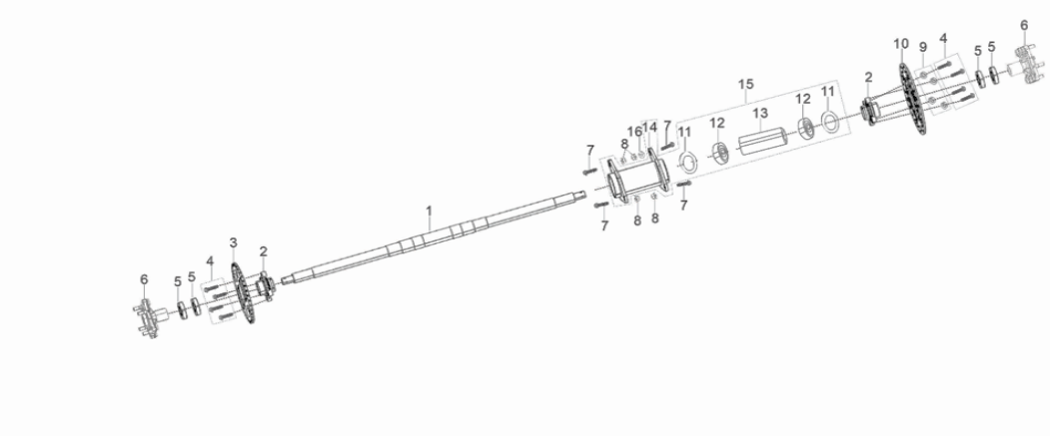

| No. | Parts No. | Model | EN name | Qty/vehicle | QTY | Retail |
| 1 | 505001-0011 | AU125-D | rear wheel shaft | 1 | /ea | $ 61.20 |
| 2 | 205003-0004 | AU125-D | chain pulley seat | 2 | /ea | $ 22.10 |
| 3 | 205001-0004-03 | AU125-D | rear sprocket 420-37 | 1 | /ea | $ 34.00 |
| 3 | 205001-0030-02 | AU125-D | rear sprocket 420-42(11.30.24~） | 1 | /ea | $ 39.10 |
| 4 | 903019-0012-03 | AU125-D | bolt M8*16 | 8 | /ea | $ 3.40 |
| 5 | 903008-0016 | AU125-D | nut M27*1.5*H10 | 4 | /ea | $ 6.80 |
| 6 | 402003-0021 | AU125-D | rear hub | 2 | /ea | $ 34.00 |
| 7 | 903019-0025-02 | AU125-D | bolt M12*30*1.25 | 4 | /ea | $ 5.10 |
| 8 | 903007-0008-02 | AU125-D | nut M12*1.25 | 4 | /ea | $ 8.50 |
| 9 | 903001-0003-02 | AU125-D | washer Φ8*13*2 | 4 | /ea | $ 3.40 |
| 10 | 405001-0012 | AU125-D | rear brake disc Φ48.4*180 | 1 | /ea | $ 34.00 |
| 11 | 908001-0010 | AU125-D | oil seal 55*35*8 | 2 | /ea | $ 8.50 |
| 12 | 907001-0010 | AU125-D | bearing 6006RS | 2 | /ea | $ 13.60 |
| 13 | 901003-0009 | AU125-D | inner lining pipe Φ31*35*L88 | 1 | /ea | $ 25.50 |
| 14 | 564000-0002 | AU125-D | rear axle | 1 | /ea | $ 51.00 |
| 15 | C90004-0025 | AU125-D | rear axle assy | 1 | /ea | $ 119.00 |
| 16 | 903002-0010-03 | AU125-D | washer Φ12*24*2 | 1 | /ea | $ 3.40 |

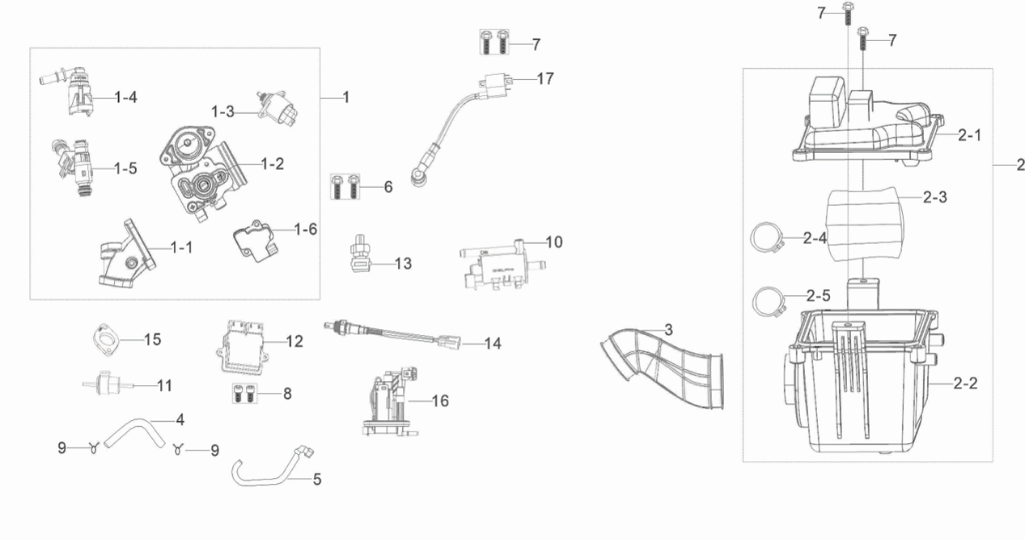

| No. | Parts No. | Model | EN name | Qty/vehicle | QTY | Retail |
| 1 | 107001-0101 | AU125-D | Valve manifold assembly | 1 | /ea | $ 260.10 |
| 1-1 | 107001-0083 | AU125-D | Manifold body | 1 | /ea | $ 34.00 |
| 1-2 | 107001-0084 | AU125-D | Valve body | 1 | /ea | $ 59.50 |
| 1-3 | 107001-0089 | AU125-D | IACV stepper motor | 1 | /ea | $ 42.50 |
| 1-4 | 107001-0085 | AU125-D | Oil cap | 1 | /ea | $ 17.00 |
| 1-5 | 107001-0090 | AU125-D | Injector | 1 | /ea | $ 61.20 |
| 1-6 | 107001-0091 | AU125-D | Three-in-one sensor | 1 | /ea | $ 45.90 |
| 2 | 105000-0041 | AU125-D | Waterproof air filter | 1 | /ea | $ 42.50 |
| 2-1 | 105001-0009 | AU125-D | air filter cover | 1 | /ea | $ 17.00 |
| 2-2 | 105001-0010 | AU125-D | air filter shell | 1 | /ea | $ 25.50 |
| 2-3 | 105002-0016 | AU125-D | air filter element | 1 | /ea | $ 25.50 |
| 2-4 | 906001-0007 | AU125-D | clamp Φ33-57 | 1 | /ea | $ 6.80 |
| 2-5 | 906001-0011 | AU125-D | clamp Φ40-64 | 1 | /ea | $ 6.80 |
| 3 | 105003-0029 | AU125-D | Air filter intake hose | 1 | /ea | $ 17.00 |
| 4 | 908002-0012 | AU125-D | Formed high pressure tubing 1 | 1 | /ea | $ 17.00 |
| 5 | 908002-0013 | AU125-D | Formed high pressure tubing 2 | 1 | /ea | $ 22.10 |
| 6 | 903018-0007 | AU125-D | bolt M6*25 | 2 | /ea | $ 3.40 |
| 7 | 903019-0004 | AU125-D | bolt M6*16 | 4 | /ea | $ 3.40 |
| 8 | 903013-0006-03 | AU125-D | screw M6*16 | 2 | /ea | $ 3.40 |
| 9 | 906002-0009 | AU125-D | clip Φ12 | 2 | /ea | $ 2.55 |
| 10 | 107001-0086 | AU125-D | carbon canister solenoid valve | 1 | /ea | $ 51.00 |
| 11 | 107001-0087 | AU125-D | fuel fine filter | 1 | /ea | $ 17.00 |
| 12 | 107001-0105 | AU125-D | engine electronic control module | 1 | /ea | $ 297.50 |
| 13 | 107001-0099 | AU125-D | temperature sensor | 1 | /ea | $ 17.00 |
| 14 | 107001-0093 | AU125-D | Oxygen Sensor | 1 | /ea | $ 59.50 |
| 15 | 107001-0082 | AU125-D | heat insulation pad | 1 | /ea | $ 8.50 |
| 16 | 107001-0095 | AU125-D | MRA fuel pump support assembly | 1 | /ea | $ 93.50 |
| 17 | 107001-0098 | AU125-D | ignition coil | 1 | /ea | $ 20.40 |

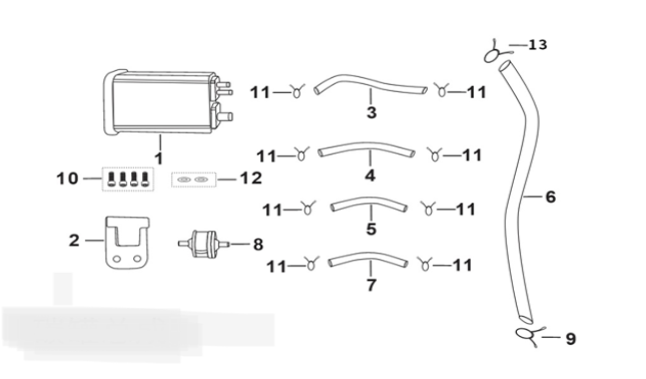

| No. | Parts No. | Model | EN name | Qty/vehicle | QTY | Retail |
| 1 | 107001-0076 | AU125-D | carbon tank | 1 | /ea | $ 34.00 |
| 2 | 568000-0168 | AU125-D | Carbon tank solenoid valve fixing bracket | 1 | /ea | $ 10.20 |
| 3 | 908002-0024 | AU125-D | oil tube Φ5*Φ10*208 | 1 | /ea | $ 13.60 |
| 4 | 908002-0019 | AU125-D | oil tube Φ5*Φ10*164.9 | 1 | /ea | $ 11.90 |
| 5 | 908002-0025 | AU125-D | oil tube Φ5*Φ10*112 | 1 | /ea | $ 10.20 |
| 6 | 908002-0017 | AU125-D | oil tube Φ9*Φ14*649.2 | 1 | /ea | $ 25.50 |
| 7 | 908002-0026 | AU125-D | oil tube Φ5*Φ10*138 | 1 | /ea | $ 11.90 |
| 8 | 805005-0003 | AU125-D | Two-way vent valve | 1 | /ea | $ 13.60 |
| 9 | 906002-0009 | AU125-D | clip Φ12 | 2 | /ea | $ 2.55 |
| 10 | 903013-0004-02 | AU125-D | screw M6*12 | 4 | /ea | $ 3.40 |
| 11 | 906001-0010 | AU125-D | clamp Φ10-16 | 8 | /ea | $ 2.55 |
| 11 | 906001-0014 | AU125-D | clamp Φ8-12（12.18.24~） | 8 | /ea | $ 2.55 |
| 12 | 903002-0001-03 | AU125-D | washerΦ6*12*1.5 | 2 | /ea | $ 3.40 |
| 13 | 906002-0007 | AU125-D | Clip Φ15 | 1 | /ea | $ 2.55 |

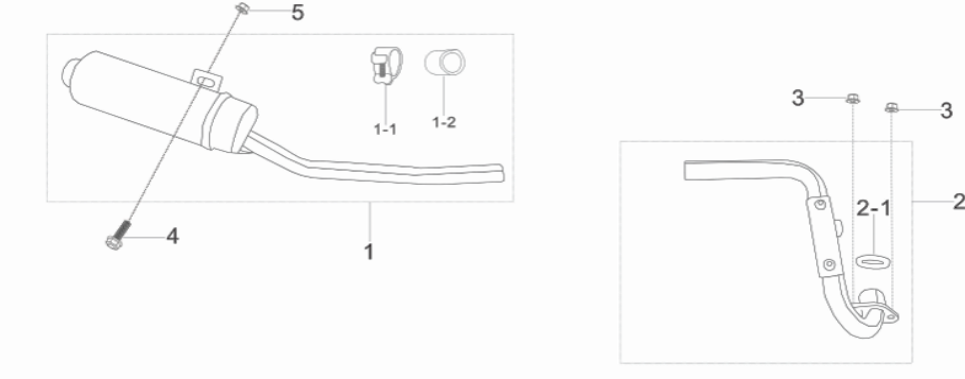

| No. | Parts No. | Model | EN name | Qty/vehicle | QTY | Retail |
| 1 | 106002-0067 | AU125-D | muffler | 1 | /ea | $ 59.50 |
| 1-1 | 106004-0001 | AU125-D | muffler hoop 36-39 | 1 | /ea | $ 10.20 |
| 1-2 | 106006-0002 | AU125-D | muffler sleeve Φ28*35.5*35 | 1 | /ea | $ 8.50 |
| 2 | 106001-0129 | AU125-D | exhaust pipe | 1 | /ea | $ 51.00 |
| 2-1 | 106003-0002 | AU125-D | gasket Φ24*33*5.5 | 1 | /ea | $ 8.50 |
| 3 | 903007-0003 | AU125-D | nut M6 | 2 | /ea | $ 3.40 |
| 4 | 903019-0013-03 | AU125-D | bolt M8*20 | 1 | /ea | $ 3.40 |
| 5 | 903007-0005 | AU125-D | nut M8 | 1 | /ea | $ 3.40 |
| No. | Parts No. | Model | EN name | Qty/vehicle | QTY | Retail |
| 1 | 309001-0210 | AU125-D | main cable | 1 | /ea | $ 127.50 |
| 1 | 309001-0210-02 | AU125-D | mani cable(11.22.24~） | 1 | /ea | $ 144.50 |
| 2 | 302001-0016 | AU125-D | voltage regulator | 1 | /ea | $ 34.00 |
| 3 | 314001-0003-04 | AU125-D | electric switch | 1 | /ea | $ 17.00 |
| 4 | 312001-0040 | AU125-D | battery | 1 | /ea | $ 64.60 |
| 5 | 315003-0004 | AU125-D | CDI bracket piece | 1 | /ea | $ 8.50 |
| 6 | 909010-0001 | AU125-D | EVA 30*30 | 2 | /ea | $ 5.10 |
| 7 | 301001-0001 | AU125-D | relay | 1 | /ea | $ 20.40 |
| 8 | 308002-0012-02 | AU125-D | tail light | 2 | /ea | $ 25.50 |
| 9 | 903006-0001-03 | AU125-D | nut M5 | 2 | /ea | $ 3.40 |
| 10 | 909010-0008 | AU125-D | EVA 82*65*4 | 1 | /ea | $ 8.50 |
| 11 | 903018-0003-03 | AU125-D | bolt M6*12 | 2 | /ea | $ 3.40 |
| 12 | 308001-0027-03 | AU125-D | front light | 2 | /ea | $ 42.50 |
| 13 | 903006-0002-03 | AU125-D | nut M6 | 2 | /ea | $ 3.40 |
| 14 | 315012-0018 | AU125-D | battery fixed plate | 1 | /ea | $ 17.00 |
| 15 | 568000-0205 | AU125-D | fixed support | 1 | /ea | $ 5.10 |
| 16 | 905001-0003 | AU125-D | blind rivet Φ3.5*12 | 3 | /ea | $ 3.40 |
| 17 | 909010-0011 | AU125-D | EVA 240*25*2mm | 1 | /ea | $ 5.10 |
| 18 | 316001-0009-02 | AU125-D | remote controller | 1 | /ea | $ 42.50 |
| 19 | 903013-0001-02 | AU125-D | screw M5*12 | 2 | /ea | $ 3.40 |
| 20 | 301001-0009 | AU125-D | relay | 2 | /ea | $ 20.40 |
| 21 | 315003-0001 | AU125-D | CDI bracket | 1 | /ea | $ 6.80 |
| No. | Parts No. | Model | EN name | Qty/vehicle | QTY | Retail |
| 1 | 805002-0029 | AU125-D | fuel tank | 1 | /ea | $ 68.00 |
| 1 | 805002-0029-02 | AU125-D | fuel tank（11.28.24~） | 1 | /ea | $ 68.00 |
| 2 | 805003-0021 | AU125-D | fuel tank cover | 1 | /ea | $ 13.60 |
| 3 | 103003-0001 | AU125-D | oil cooler busher | 2 | /ea | $ 3.40 |
| 4 | 903019-0007 | AU125-D | bolt M6*25 | 2 | /ea | $ 3.40 |
| 5 | 903002-0004-03 | AU125-D | washer Φ8*16*1.5 | 2 | /ea | $ 3.40 |
| 6 | 909010-0034 | AU125-D | heat-insulating film | 1 | /ea | $ 13.60 |
| 7 | 903013-0002-02 | AU125-D | screw M5*20 | 4 | /ea | $ 3.40 |
| 8 | 903020-0003-03 | AU125-D | bolt M6*16 | 2 | /ea | $ 3.40 |
| 9 | 908003-0021 | AU125-D | seal ring（12.10.24~） | 1 | /ea | $ 5.10 |

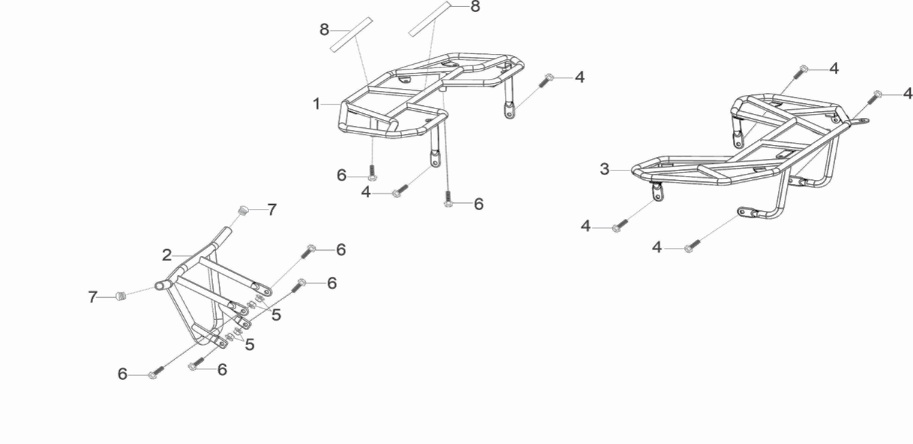

| No. | Parts No. | Model | EN name | Qty/vehicle | QTY | Retail |
| 1 | 702000-0013-02 | AU125-D | front rack | 1 | /ea | $ 76.50 |
| 2 | 704000-0014 | AU125-D | front guard | 1 | /ea | $ 59.50 |
| 3 | 703000-0035 | AU125-D | rear rack | 1 | /ea | $ 76.50 |
| 4 | 903019-0012-03 | AU125-D | bolt M8*16 | 6 | /ea | $ 3.40 |
| 5 | 903007-0005 | AU125-D | nut M8 | 4 | /ea | $ 3.40 |
| 6 | 903019-0013-03 | AU125-D | bolt M8*20 | 6 | /ea | $ 3.40 |
| 7 | 908004-0003 | AU125-D | plug Φ10*Φ15*14 | 2 | /ea | $ 3.40 |
| 8 | 909010-0011 | AU125-D | EVA | 2 | /ea | $ 5.10 |

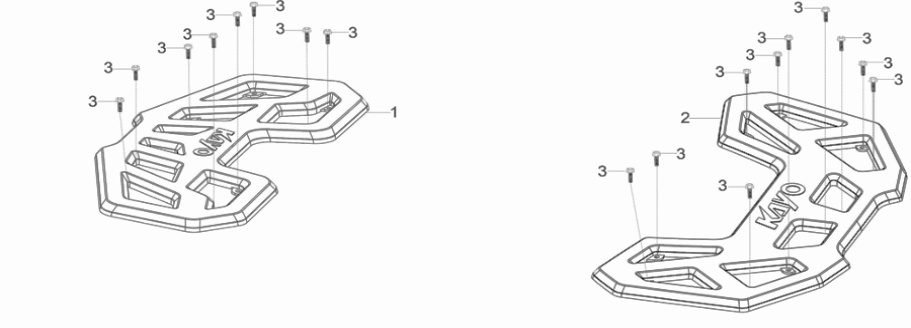

| No. | Parts No. | Model | EN name | Qty/vehicle | QTY | Retail |
| 1 | 803004-0014 | AU125-D | plastic front rack cover | 1 | /ea | $ 47.60 |
| 2 | 803004-0015 | AU125-D | plastic rear rack cover | 1 | /ea | $ 47.60 |
| 3 | 903018-0004-03 | AU125-D | bolt M6*16 | 18 | /ea | $ 3.40 |

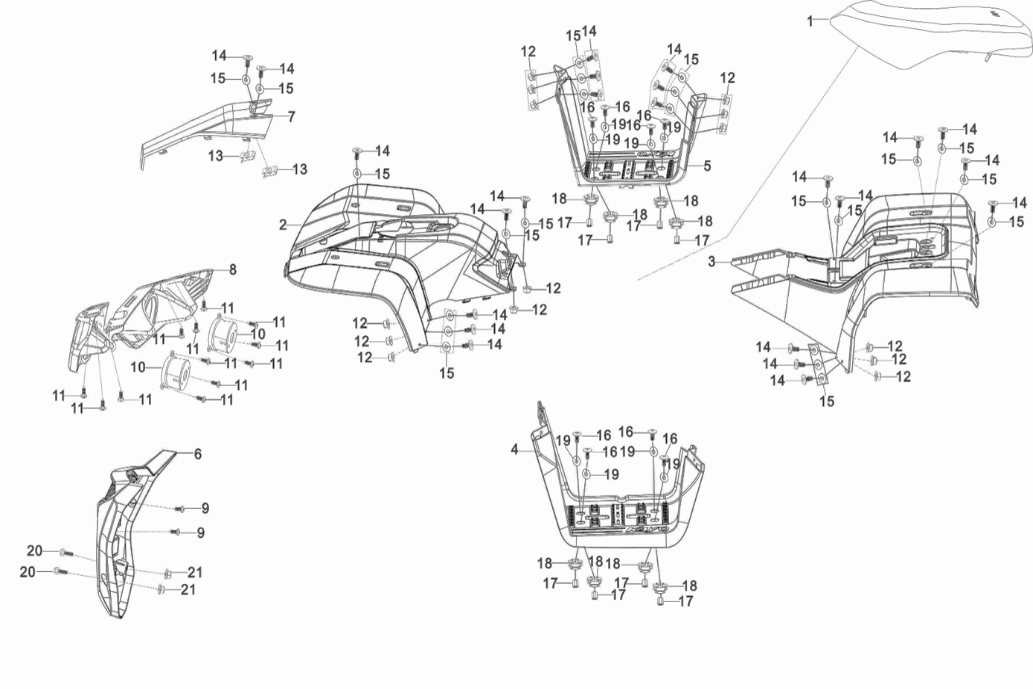

| No. | Parts No. | Model | EN name | Qty/vehicle | QTY | Retail |
| 1 | 701000-0041 | AU125-D | seat | 1 | /ea | $ 59.50 |
| 2 | 803004-0010-04 | AU125-D | front cover white | 1 | /ea | $ 76.50 |
| 2 | 803004-0010-02 | AU125-D | front cover black | 1 | /ea | $ 76.50 |
| 3 | 803004-0011-02 | AU125-D | rear cover | 1 | /ea | $ 76.50 |
| 4 | 803004-0016 | AU125-D | left plastic footpeg | 1 | /ea | $ 47.60 |
| 5 | 803004-0017 | AU125-D | right plastic footpeg | 1 | /ea | $ 47.60 |
| 6 | 803004-0013 | AU125-D | bumper cover | 1 | /ea | $ 42.50 |
| 7 | 803004-0012-04 | AU125-D | head cover | 1 | /ea | $ 30.60 |
| 8 | 308006-0016-02 | AU125-D | front light bracket | 1 | /ea | $ 37.40 |
| 9 | 903010-0006-03 | AU125-D | screw ST4.8*12 | 2 | /ea | $ 3.40 |
| 10 | 308006-0017 | AU125-D | headlight cover | 2 | /ea | $ 13.60 |
| 11 | 903010-0004-03 | AU125-D | screw ST4.2*12 | 12 | /ea | $ 3.40 |
| 12 | 903006-0002-03 | AU125-D | nut M6 | 14 | /ea | $ 3.40 |
| 13 | 903008-0019-02 | AU125-D | nut M6 11*17.2*1.0 | 2 | /ea | $ 3.40 |
| 14 | 903020-0055 | AU125-D | bolt M6*16 | 23 | /ea | $ 3.40 |
| 15 | 908003-0002 | AU125-D | washer Φ5.5*14.5*2 | 23 | /ea | $ 2.55 |
| 16 | 903012-0013-02 | AU125-D | screw TM6*30 | 8 | /ea | $ 3.40 |
| 17 | 902001-0190 | AU125-D | busher Φ6.3*Φ10*H14 | 8 | /ea | $ 3.40 |
| 18 | 908003-0016 | AU125-D | Shock absorbing rubber block | 8 | /ea | $ 3.40 |
| 19 | 903002-0002-03 | AU125-D | washer Φ6*18*1.5 | 8 | /ea | $ 3.40 |
| 20 | 903018-0004-03 | AU125-D | bolt M6*16 | 2 | /ea | $ 3.40 |
| 21 | 903007-0003 | AU125-D | nut M6 | 2 | /ea | $ 3.40 |

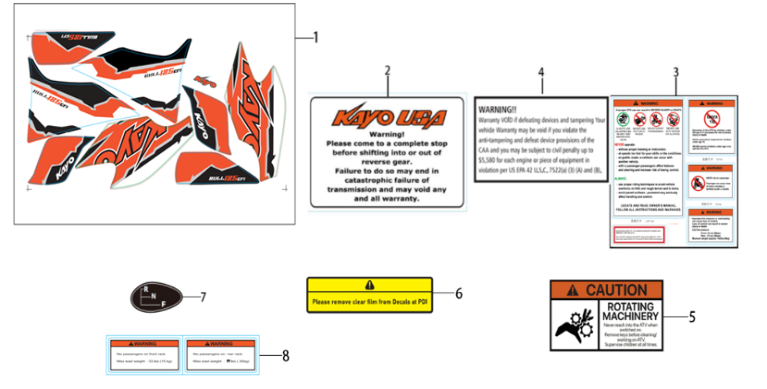

| No. | Parts No. | Model | EN name | Qty/vehicle | QTY | Retail |
| 1 | 804008-0042 | AU125-D | sticker | 1 | /ea | $ 51.00 |
| 2 | 802013-0047 | AU125-D | safety sticker | 1 | /ea | $ 8.50 |
| 3 | 909006-0004 | AU125-D | safety sticker | 1 | /ea | $ 8.50 |
| 3 | 909006-0004-02 | AU125-D | safety sticker(11.26.24~) | 1 | /ea | $ 8.50 |
| 4 | 802013-0077 | AU125-D | safety sticker | 1 | /ea | $ 8.50 |
| 5 | 804019-0078 | AU125-D | safety sticker | 1 | /ea | $ 8.50 |
| 6 | 802013-0081 | AU125-D | safety sticker | 1 | /ea | $ 8.50 |
| 7 | 804019-0106 | AU125-D | shift plastic label | 1 | /ea | $ 8.50 |
| 8 | 804019-0108 | AU125-D | safety sticker | 1 | /ea | $ 8.50 |
| No. | Parts No. | Model | EN name | Qty/vehicle | QTY | Retail |
| 1 | 308006-0010 | AU125-D | rear centrual reflector | 1 | /ea | $ 6.80 |
| 2 | 308006-0011 | AU125-D | front reflector | 2 | /ea | $ 6.80 |
| 3 | 308006-0012 | AU125-D | rear reflector | 2 | /ea | $ 6.80 |
| 4 | 903006-0001-03 | AU125-D | nut M5 | 2 | /ea | $ 3.40 |
| 5 | 308006-0024 | AU125-D | front center reflector | 1 | /ea | $ 8.50 |
| 6 | 903002-0002-03 | AU125-D | washer Φ6*18*1.5 | 1 | /ea | $ 3.40 |
