Description

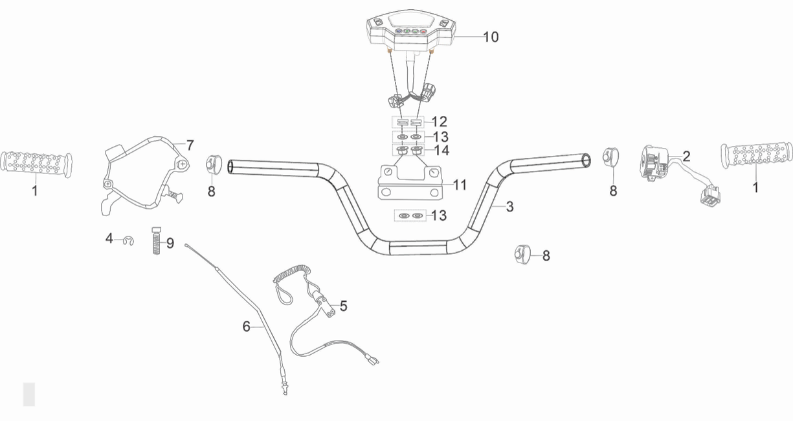

No. Parts No. Model EN name Qty/
vehicle		 QTY Retail
1 602006-0032 AT125-D grip 2 /ea $ 10.20
2 313001-0020 AT125-D multi-functional switch 1 /ea $ 34.00
3 602001-0019 AT125-D handlebar 1 /ea $ 42.50
4 903004-0009 AT125-D split circlip Φ2.5*6*0.3 1 /ea $ 6.80
5 313003-0011-02 AT125-D stop switch 1 /ea $ 17.00
6 602014-0047 AT125-D throttle cable 1 /ea $ 17.00
7 602011-0013 AT125-D accelerator 1 /ea $ 25.50
8 908007-0071 AT125-D cable belt 91*12*2 3 /ea $ 1.70
9 903020-0060 AT125-D screw M4*20 1 /ea $ 8.50
10 311001-0037 AT125-D instrument 1 /ea $ 127.50
11 315011-0007 AT125-D instrument bracket 1 /ea $ 10.20
12 908007-0010 AT125-D rubber ring Φ9*12+Φ18*H7 2 /ea $ 3.40
13 903002-0004-03 AT125-D washer Φ8*16*1.5 4 /ea $ 3.40
14 903006-0002-03 AT125-D nut M6 2 /ea $ 3.40

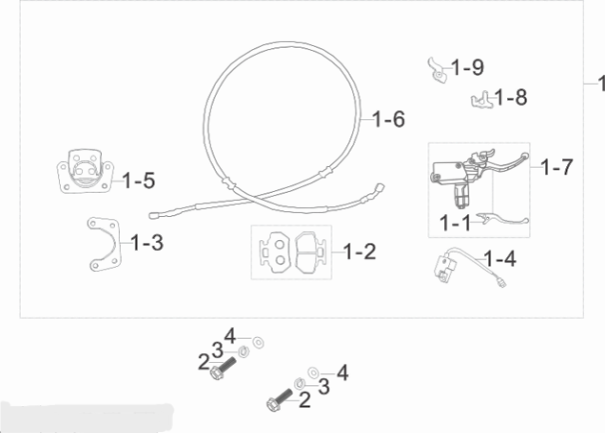

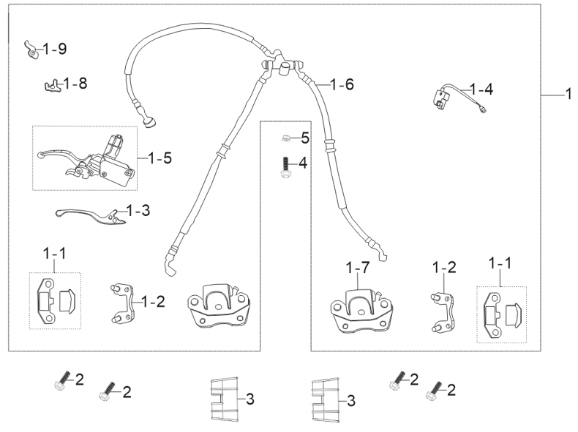

No. Parts No. Model EN name Qty/vehicle QTY Retail
1 404000-0204 AT125-D front brake assy 1 /ea $ 110.50
1-1 404007-0011 AT125-D front brake pad 2 /ea $ 13.60
1-2 404008-0011 AT125-D front brake bracket 2 /ea $ 13.60
1-3 404002-0039 AT125-D front brake lever 1 /ea $ 17.00
1-4 404011-0022 AT125-D front brake switch 1 /ea $ 10.20
1-5 404003-0007 AT125-D front brake master cylinder 1 /ea $ 28.90
1-6 404005-0035 AT125-D front brake oil pipe 1 /ea $ 34.00
1-7 404006-0008 AT125-D front brake caliper 1 /ea $ 34.00
1-8 404011-0009 AT125-D front brake lock tab/bracket 1 /ea $ 13.60
1-9 404011-0010 AT125-D front brake lock kit 1 /ea $ 13.60
2 903019-0012-03 AT125-D bolt M8*16 4 /ea $ 3.40
3 405010-0006 AT125-D front brake line clamp 2 /ea $ 6.80
4 903018-0011-02 AT125-D bolt M8*35 1 /ea $ 5.10
5 903007-0005 AT125-D nut M8 1 /ea $ 3.40

No. Parts No. Model EN name Qty/vehicle QTY Retail
1 405000-0123-02 AT125-D rear brake 1 /ea $ 93.50
1-1 405002-0013 AT125-D rear brake lever 1 /ea $ 17.00
1-2 405008-0007 AT125-D rear brake pad 1 /ea $ 13.60
1-3 405009-0019 AT125-D rear brake bracket 1 /ea $ 13.60
1-4 405012-0016 AT125-D rear brake switch 1 /ea $ 8.50
1-5 405007-0014 AT125-D rear brake caliper 1 /ea $ 42.50
1-6 405006-0022 AT125-D rear brake oil pipe 1 /ea $ 30.60
1-7 405004-0011 AT125-D rear brake master cylinder 1 /ea $ 28.90
1-8 405012-0008 AT125-D rear brake lock tab/bracket 1 /ea $ 8.50
1-9 405012-0005 AT125-D rear brake lock kit 1 /ea $ 13.60
2 903019-0014-03 AT125-D bolt M8*25 2 /ea $ 5.10
3 903001-0003-02 AT125-D washer Φ8*13*2 2 /ea $ 3.40
4 903002-0004-03 AT125-D washer Φ8*16*1.5 2 /ea $ 3.40

No. Parts No. Model EN name Qty/vehicle QTY Retail

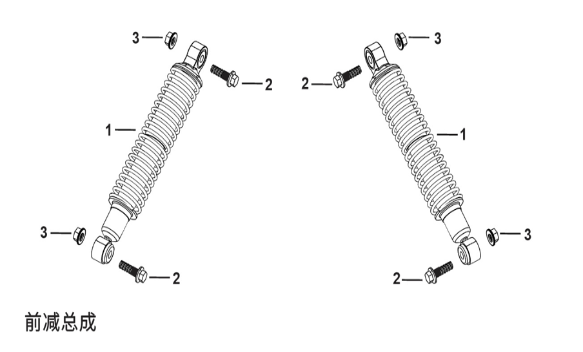

1 501000-0094 AT125-D front shock L265 2 /ea $ 59.50
1 501000-0164 AT125-D front shock(1.4.2025~) L275 2 /ea $ 59.50
2 903018-0032-02 AT125-D bolt M10*40*1.25 4 /ea $ 6.80
3 903007-0006-02 AT125-D nut M10*1.25 4 /ea $ 5.10

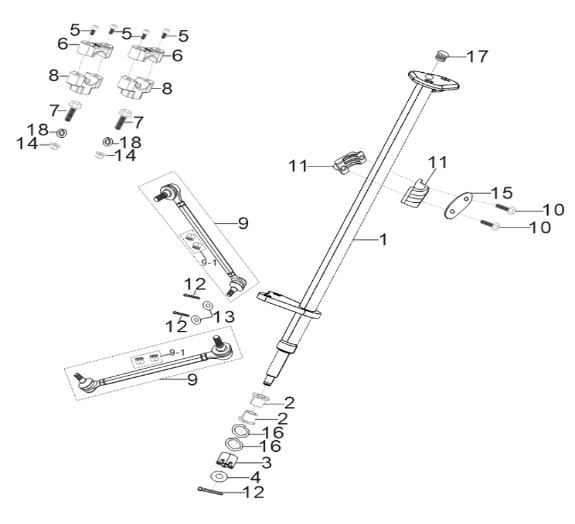

No. Parts No. Model EN name Qty/vehicle QTY Retail
1 566000-0013-02 AT125-D steering column 1 /ea $ 68.00
1 566000-0036-01 AT125-D steering column(12.27.24~) 1 /ea $ 68.00
2 902002-0031 AT125-D busher Φ15*29*H20+Ф21+H17 2 /ea $ 5.10
3 903008-0009-02 AT125-D nut M10*1.25 1 /ea $ 6.80
4 904002-0004-03 AT125-D cotter pin 3*20 1 /ea $ 3.40
5 903013-0022-03 AT125-D screw M8*35 4 /ea $ 5.10
6 601003-0023 AT125-D upper raiser 2 /ea $ 10.20
7 903017-0011-02 AT125-D bolt M10*30*1.5 2 /ea $ 5.10
8 601004-0028 AT125-D lower raiser 2 /ea $ 10.20
9 603001-0006 AT125-D steering linkage 2 /ea $ 30.60
9-1 603005-0009 AT125-D nut M10*1.25*H9 4 /ea $ 5.10
10 903018-0015-03 AT125-D bolt M8*55 2 /ea $ 6.80
11 603004-0003 AT125-D steering raiser 2 /ea $ 13.60
12 904002-0002-03 AT125-D cotter pin 2.5*24 5 /ea $ 3.40
13 903002-0008-03 AT125-D washer Φ10*20*2 3 /ea $ 3.40
14 903007-0007-03 AT125-D nut M10*1.5 2 /ea $ 5.10
15 568000-0001-02 AT125-D steering column lock plate 1 /ea $ 8.50
16 903003-0003 AT125-D washer Φ15*21 2 /ea $ 6.80
17 908004-0003 AT125-D plug Φ10*Φ15*14 1 /ea $ 6.80
18 903001-0005-02 AT125-D washer Φ10.5*16*3 2 /ea $ 3.40

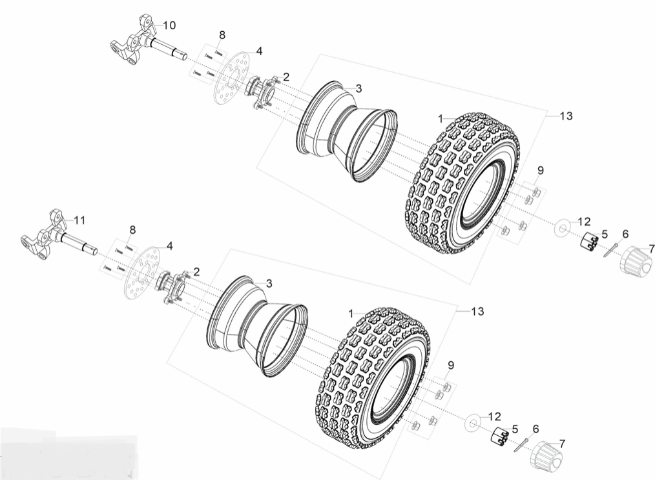

No. Parts No. Model EN name Qty/vehicle QTY Retail
1 401006-0062 AT125-D front tyre AT19*7.0-8 2 /ea $ 76.50
2 401003-0008 AT125-D front hub seat 2 /ea $ 51.00
3 401000-0058 AT125-D front rim 8*5.5AT-4/88 /67/+20 2 /ea $ 59.50
4 404001-0014 AT125-D front brake disc Φ40.4*Φ110/50 2 /ea $ 27.20
5 903008-0011-02 AT125-D nut M14*1.5*H18 2 /ea $ 8.50
6 904002-0004-03 AT125-D cotter pin 3*20 2 /ea $ 3.40
7 401011-0001 AT125-D hub cover 2 /ea $ 8.50
8 903014-0001-03 AT125-D screw M6*16 8 /ea $ 5.10
9 903007-0005 AT125-D nut M8 8 /ea $ 3.40
10 603002-0009 AT125-D left knuckle 1 /ea $ 40.80
11 603002-0010 AT125-D right knuckle 1 /ea $ 40.80
12 903002-0013-03 AT125-D washer Φ15*30*2.5 2 /ea $ 6.80
13 C90004-0217 AT125-D R-front wheel assy 1 /ea $ 136.00
13 C90004-0217 AT125-D L-front wheel assy 1 /ea $ 136.00

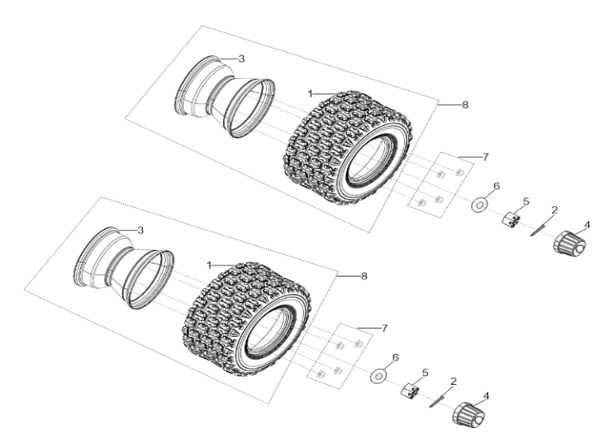

No. Parts No. Model EN name Qty/vehicle QTY Retail
1 402006-0048 AT125-D rear tyre AT18*9.5-8 2 /ea $ 85.00
2 904002-0006-03 AT125-D cotter pin 4*28 2 /ea $ 3.40
3 402000-0064 AT125-D rear rim8*7.0AT-4/110/90/+20 2 /ea $ 59.50
4 401011-0001 AT125-D hub cover 2 /ea $ 8.50
5 903008-0030-02 AT125-D nut M16*1.5*H18 2 /ea $ 8.50
6 903002-0014-02 AT125-D washer Φ17*48*3 2 /ea $ 6.80
7 903007-0006-02 AT125-D nut M10*1.25 8 /ea $ 5.10
8 C90004-0218 AT125-D R-rear wheel assy 1 /ea $ 144.50
8 C90004-0218 AT125-D L-rear wheel assy 1 /ea $ 144.50

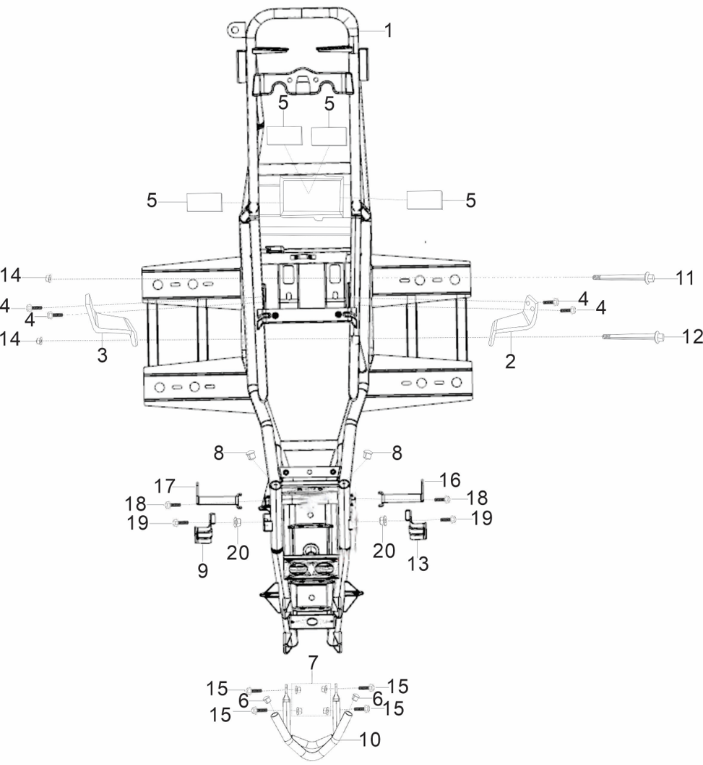

No. Parts No. Model EN name Qty/vehicle QTY Retail
1 561000-0139-01 AT125-D frame 1 /ea $ 493.00
2 568000-0003 AT125-D engine lug 1 /ea $ 17.00
3 568000-0005 AT125-D right engine lug 54*34*42/3*Φ9 1 /ea $ 17.00
4 903020-0030-02 AT125-D bolt M8*16 4 /ea $ 3.40
5 909010-0008 AT125-D EVA 82*65*4 4 /ea $ 6.80
6 908004-0003 AT125-D rubber plug Φ12*Φ15*14 2 /ea $ 5.10
7 903007-0005 AT125-D nut M8 4 /ea $ 3.40
8 908007-0015 AT125-D rubber plug Φ14*Φ19*17 2 /ea $ 5.10
9 568000-0070 AT125-D right front plastic mounting plate 1 /ea $ 17.00
10 704000-0012 AT125-D front guard 1 /ea $ 39.10
11 903018-0023 AT125-D bolt M8*110 1 /ea $ 13.60
12 903018-0022 AT125-D bolt M8*105 1 /ea $ 20.40
13 568000-0069 AT125-D left front plastic mounting plate 1 /ea $ 17.00
14 903007-0005 AT125-D nut M8 2 /ea $ 3.40
15 903019-0013-03 AT125-D bolt M8*20 4 /ea $ 3.40
16 568000-0166 AT125-D Plastic part front left support bracket(~12.24.24) 1 /ea $ 17.00
17 568000-0167 AT125-D Plastic part front right support bracket9~12.24.24） 1 /ea $ 17.00
18 903019-0011-03 AT125-D bolt M8*12 2 /ea $ 3.40
19 903018-0003-03 AT125-D bolt M6*12 2 /ea $ 3.40
20 903006-0002-03 AT125-D nut M6（12.24.24~） 2 /ea $ 3.40

No. Parts No. Model EN name Qty/vehicle QTY Retail

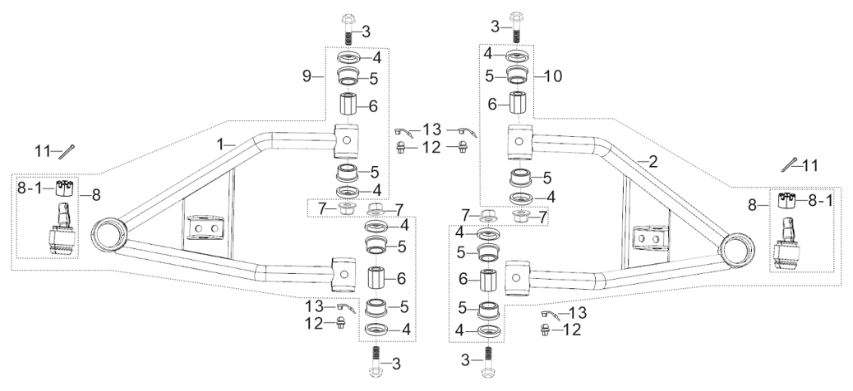

1 565000-0101-01 AT125-D right lower rocker arm 1 /ea $ 59.50
2 565000-0100-01 AT125-D left lower rocker arm 1 /ea $ 59.50
3 903018-0035-02 AT125-D bolt M10*70*1.25 4 /ea $ 6.80
4 908007-0006 AT125-D sealing cover 8 /ea $ 5.10
5 902002-0029 AT125-D busher Φ16*27*14+Ф23+H11 8 /ea $ 5.10
6 902001-0026 AT125-D steel busher Φ10.2*16*H46 4 /ea $ 6.80
7 903007-0006-02 AT125-D nut M10*1.25 4 /ea $ 5.10
8 603003-0011 AT125-D linkage ball 2 /ea $ 25.50
8-1 603005-0009 AT125-D nut M10*1.25*H9 2 /ea $ 6.80
9 C90004-0222 AT125-D right lower rocker arm assy. 1 /ea $ 76.50
10 C90004-0221 AT125-D left lower rocker arm assy. 1 /ea $ 76.50
11 904002-0002-03 AT125-D cotter pin 2.5*24 2 /ea $ 3.40
12 906004-0012 AT125-D Grease nipple M6 4 /ea $ 5.10
13 906004-0013 AT125-D Grease nipple coverΦ6.5 4 /ea $ 3.40

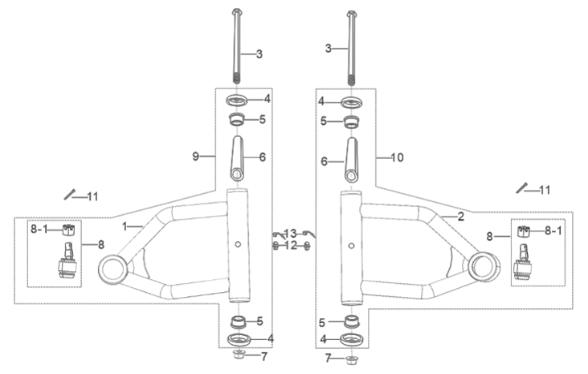

No. Parts No. Model EN name Qty/vehicle QTY Retail
1 565000-0099-01 AT125-D right upper rocker arm 1 /ea $ 59.50
2 565000-0098-01 AT125-D left upper rocker arm 1 /ea $ 59.50
3 901001-0005 AT125-D flange axle 2 /ea $ 13.60
4 908007-0006 AT125-D sealing cover 4 /ea $ 5.10
5 902002-0038 AT125-D plastic busher 4 /ea $ 5.10
6 902001-0040 AT125-D steel busher Φ10.5*16*H163 2 /ea $ 13.60
7 903007-0006-02 AT125-D nut M10*1.25 2 /ea $ 5.10
8 603003-0011 AT125-D linkage ball 2 /ea $ 25.50
8-1 603005-0009 AT125-D nut M10*1.25*H9 2 /ea $ 6.80
9 C90004-0220 AT125-D right upper rocker arm assy 1 /ea $ 76.50
10 C90004-0219 AT125-D left upper rocker arm assy 1 /ea $ 76.50
11 904002-0002-03 AT125-D cotter pin 2.5*24 2 /ea $ 3.40
12 906004-0012 AT125-D Grease nipple M6 2 /ea $ 5.10
13 906004-0013 AT125-D Grease nipple coverΦ6.5 2 /ea $ 3.40

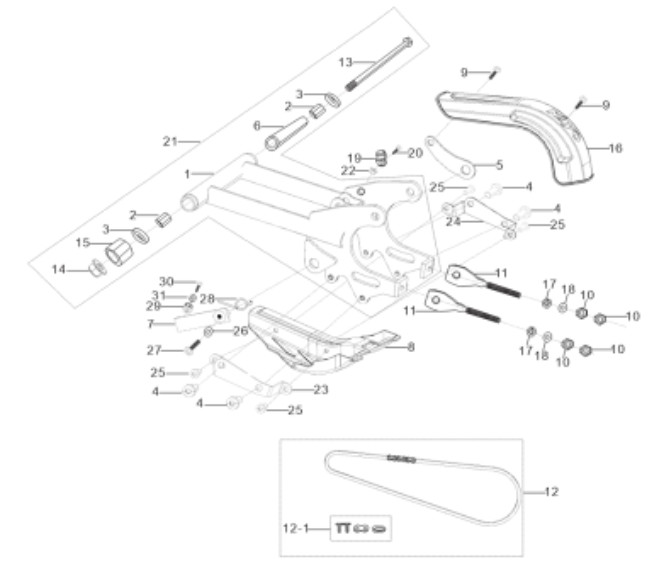

No. Parts No. Model EN name Qty/vehicle QTY Retail
1 563000-0041-02 AT125-D fork 1 /ea $ 76.50
2 902001-0053 AT125-D busher Φ12.3*24*29 2 /ea $ 6.80
3 908007-0007 AT125-D sealing coverΦ12*35*H8+Φ27.5*6.5 2 /ea $ 6.80
4 903015-0005-02 AT125-D screw M8*16 4 /ea $ 3.40
5 568000-0209-02 AT125-D chain cover bracket 1 /ea $ 6.80
6 901003-0007 AT125-D inner lining pipe Φ12.5*19*L143 1 /ea $ 17.00
7 568000-0015 AT125-D Chain tensioner 1 /ea $ 25.50
7-1 568000-0219 AT125-D chain tensioner bracket 1 /ea $ 13.60
7-1 568000-0219-02 AT125-D chain tensioner bracket(11.9.24~) 1 /ea $ 13.60
8 803002-0019 AT125-D fork lower protector 1 /ea $ 25.50
9 903018-0003-03 AT125-D bolt M6*12 2 /ea $ 3.40
10 903005-0006-02 AT125-D nut M8 4 /ea $ 3.40
11 203003-0009 AT125-D chain adjuster 2 /ea $ 11.90
12 203000-0086 AT125-D chain 420-86 1 /ea $ 42.50
12 203000-0118 AT125-D chain 420-88(11.9.24~) 1 /ea $ 42.50
12-1 203001-0002 AT125-D chain joint 420 1 /ea $ 6.80
13 901001-0022 AT125-D flange axle 1 /ea $ 20.40
14 903007-0008-02 AT125-D nut M12*1.25 1 /ea $ 8.50
15 203004-0024 AT125-D chain guide slider 1 /ea $ 20.40
16 203004-0064 AT125-D chain cover 1 /ea $ 17.00
17 903001-0003-02 AT125-D washer Φ8*13*2 2 /ea $ 3.40
18 903002-0004-03 AT125-D washer Φ8*16*1.5 2 /ea $ 3.40
19 405010-0001 AT125-D clamp Φ10 1 /ea $ 5.10
20 903019-0004 AT125-D bolt M6*16 1 /ea $ 3.40
21 C90004-0215 AT125-D fork assy 1 /ea $ 127.50
22 903007-0003 AT125-D nut M6 1 /ea $ 3.40
23 568000-0210 AT125-D left chain bracket holding 1 /ea $ 8.50
24 568000-0211 AT125-D right chain bracket holding 1 /ea $ 8.50
25 903015-0002-02 AT125-D screw M6*16 4 /ea $ 3.40
26 903002-0005-03 AT125-D washer Φ8*28*1.5 1 /ea $ 3.40
27 903019-0011-03 AT125-D bolt M8*12 1 /ea $ 3.40
28 407003-0018 AT125-D chain tensioner twist spring(11.9.24~) 1 /ea $ 8.50
29 203004-0013 AT125-D chain roller(11.9.24~) 1 /ea $ 10.20
30 903019-0002 AT125-D bolt M6*12(11.9.24~) 1 /ea $ 3.40
31 903002-0001-03 AT125-D washerΦ6*12*1.5(11.9.24~) 1 /ea $ 3.40

No. Parts No. Model EN name Qty/vehicle QTY Retail

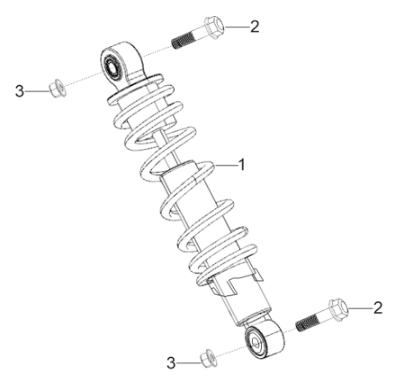

1 502000-0049 AT125-D rear shock L265 1 /ea $ 64.60
1 502000-0116 AT125-D rear shock L275 1 /ea $ 64.60
2 903018-0032-02 AT125-D bolt M10*40*1.25 2 /ea $ 6.80
3 903007-0006-02 AT125-D nut M10*1.25 2 /ea $ 5.10

No. Parts No. Model EN name Qty/vehicle QTY Retail

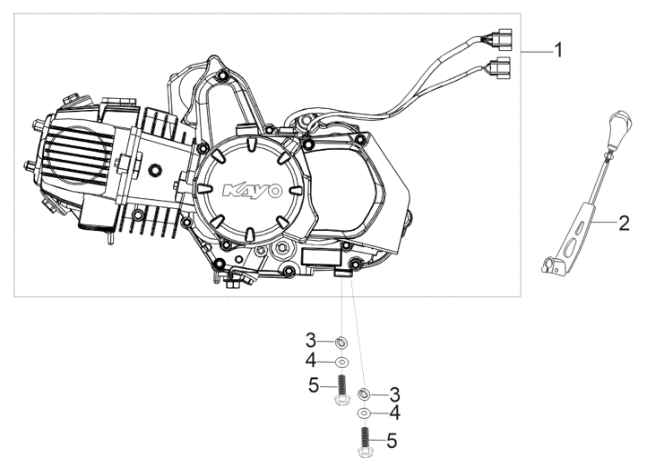

1 I01000-0030 AT125-D engine 1 /ea $ 544.00
2 201001-0009 AT125-D manual engine shift lever 1 /ea $ 34.00
3 903001-0003-02 AT125-D washer Φ8*13*2 2 /ea $ 3.40
4 903002-0004-03 AT125-D washer Φ8*16*1.5 2 /ea $ 3.40
5 903019-0013-03 AT125-D bolt M8*20 2 /ea $ 3.40

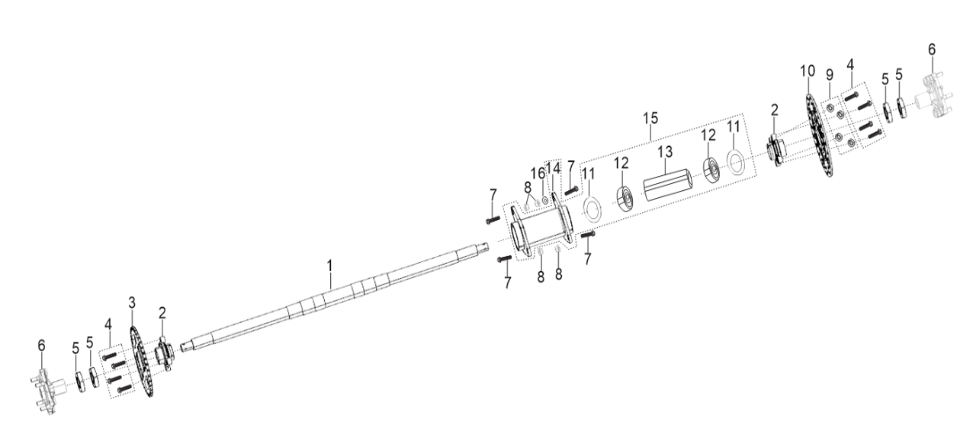

No. Parts No. Model EN name Qty/vehicle QTY Retail
1 505001-0011 AT125-D rear wheel shaft 1 /ea $ 61.20
2 205003-0004 AT125-D chain pulley seat 2 /ea $ 22.10
3 205001-0004-03 AT125-D rear sprocket 420-37 1 /ea $ 34.00
3 205001-0030-02 AT125-D rear sprocket 420-42(11.30.24~) 1 /ea $ 39.10
4 903019-0012-03 AT125-D bolt M8*16 8 /ea $ 3.40
5 903008-0016 AT125-D nut M27*1.5*H10 4 /ea $ 6.80
6 402003-0021 AT125-D rear hub 2 /ea $ 34.00
7 903019-0025-02 AT125-D bolt M12*30*1.25 4 /ea $ 5.10
8 903007-0008-02 AT125-D nut M12*1.25 4 /ea $ 8.50
9 903001-0003-02 AT125-D washer Φ8*13*2 4 /ea $ 3.40
10 405001-0012 AT125-D rear brake disc Φ48.4*180 1 /ea $ 34.00
11 908001-0010 AT125-D oil seal 55*35*8 2 /ea $ 8.50
12 907001-0010 AT125-D bearing 6006RS 2 /ea $ 13.60
13 901003-0009 AT125-D inner lining pipe Φ31*35*L88 1 /ea $ 25.50
14 564000-0002 AT125-D rear axle 1 /ea $ 51.00
15 C90004-0025 AT125-D rear axle assy 1 /ea $ 119.00
16 903002-0010-03 AT125-D washer Φ12*24*2 1 /ea $ 3.40

No. Parts No. Model EN name Qty/vehicle QTY Retail

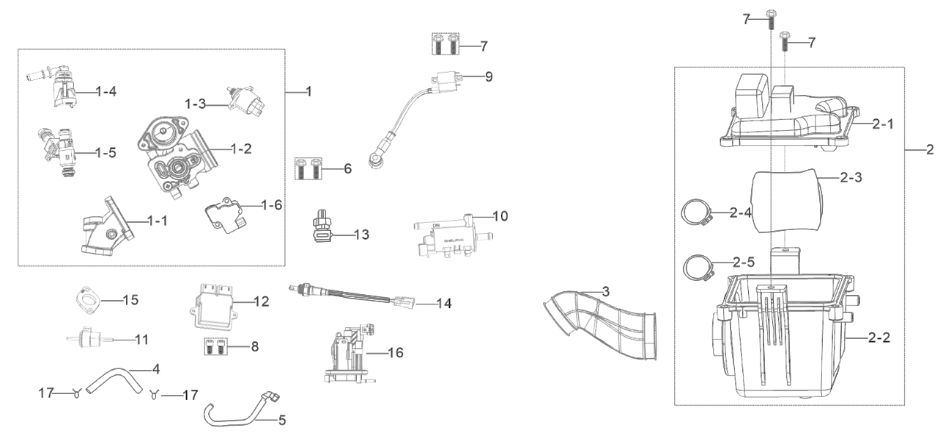

1 107001-0101 AT125-D Valve manifold assembly 1 /ea $ 260.10
1-1 107001-0083 AT125-D Manifold body 1 /ea $ 34.00
1-2 107001-0084 AT125-D Valve body 1 /ea $ 59.50
1-3 107001-0089 AT125-D IACV stepper motor 1 /ea $ 42.50
1-4 107001-0085 AT125-D Oil cap 1 /ea $ 17.00
1-5 107001-0090 AT125-D Injector 1 /ea $ 61.20
1-6 107001-0091 AT125-D Three-in-one sensor 1 /ea $ 45.90
2 105000-0041 AT125-D Waterproof air filter 1 /ea $ 42.50
2-1 105001-0009 AT125-D air filter cover 1 /ea $ 17.00
2-2 105001-0010 AT125-D air filter shell 1 /ea $ 25.50
2-3 105002-0016 AT125-D air filter element 1 /ea $ 25.50
2-4 906001-0007 AT125-D clamp Φ33-57 1 /ea $ 6.80
2-5 906001-0011 AT125-D clamp Φ40-64 1 /ea $ 6.80
3 105003-0029 AT125-D Air filter intake hose 1 /ea $ 17.00
4 908002-0012 AT125-D Formed high pressure tubing 1 1 /ea $ 17.00
5 908002-0013 AT125-D Formed high pressure tubing 2 1 /ea $ 22.10
6 903018-0007 AT125-D bolt M6*25 2 /ea $ 3.40
7 903019-0004 AT125-D bolt M6*16 4 /ea $ 3.40
8 903013-0006-03 AT125-D screw M6*16 2 /ea $ 3.40
9 107001-0098 AT125-D ignition coil 1 /ea $ 20.40
10 107001-0086 AT125-D carbon canister solenoid valve 1 /ea $ 51.00
11 107001-0087 AT125-D fuel fine filter 1 /ea $ 17.00
12 107001-0105 AT125-D engine electronic control module 1 /ea $ 297.50
13 107001-0099 AT125-D temperature sensor 1 /ea $ 17.00
14 107001-0093 AT125-D Oxygen Sensor 1 /ea $ 59.50
15 107001-0082 AT125-D heat insulation pad 1 /ea $ 8.50
16 107001-0095 AT125-D MRA fuel pump assembly 1 /ea $ 93.50
17 906002-0009 AT125-D clip Φ12 2 /ea $ 2.55
  304003-0008 AT125-D Speed Sensor 1 /ea $ 30.60

No. Parts No. Model EN name Qty/vehicle QTY Retail

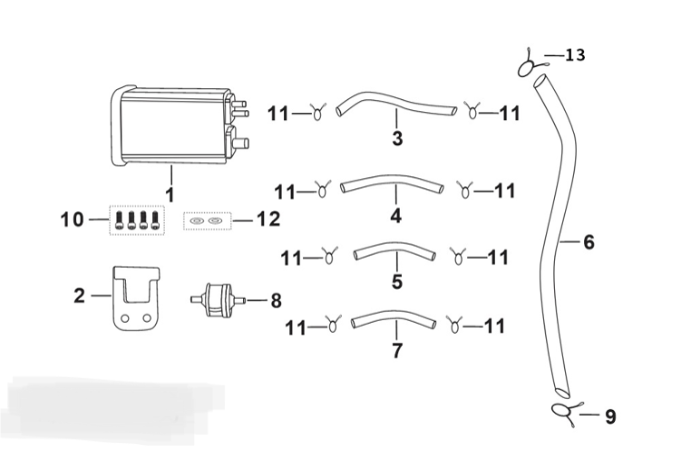

1 107001-0076 AT125-D carbon tank 1 /ea $ 34.00
2 568000-0168 AT125-D Carbon tank solenoid valve fixing bracket 1 /ea $ 10.20
3 908002-0024 AT125-D oil tube Φ5*Φ10*208 1 /ea $ 13.60
4 908002-0019 AT125-D oil tube Φ5*Φ10*164.9 1 /ea $ 11.90
5 908002-0025 AT125-D oil tube Φ5*Φ10*112 1 /ea $ 10.20
6 908002-0017 AT125-D oil tube Φ9*Φ14*649.2 1 /ea $ 25.50
7 908002-0026 AT125-D oil tube Φ5*Φ10*138 1 /ea $ 11.90
8 805005-0003 AT125-D Two-way vent valve 1 /ea $ 13.60
9 906002-0009 AT125-D clamp Φ12 2 /ea $ 2.55
10 903013-0004-02 AT125-D screw M6*12 4 /ea $ 3.40
11 906001-0010 AT125-D clamp Φ10-16 8 /ea $ 2.55
11 906001-0014 AT125-D clamp Φ8-12(12.18.24~) 8 /ea $ 2.55
12 903002-0001-03 AT125-D washer Φ6*12*1.5 2 /ea $ 3.40
13 906002-0007 AU125-D Clip Φ15 1 /ea $ 2.55

No. Parts No. Model EN name Qty/vehicle QTY Retail

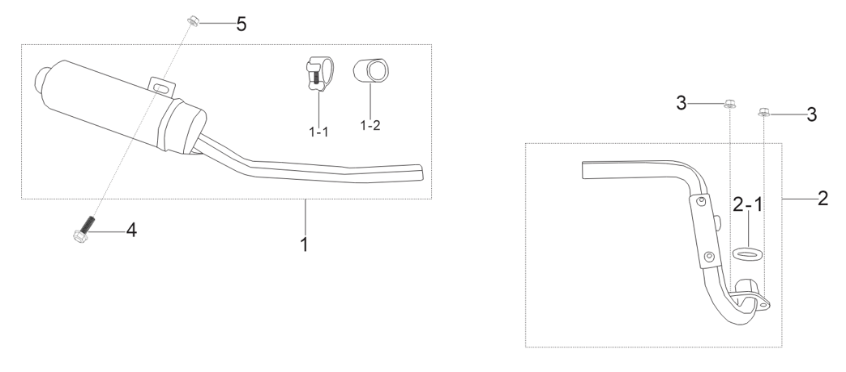

1 106002-0067 AT125-D muffler 1 /ea $ 59.50
1-1 106004-0001 AT125-D muffler hoop 36-39 1 /ea $ 10.20
1-2 106006-0002 AT125-D muffler sleeve Φ28*35.5*35 1 /ea $ 8.50
2 106001-0129 AT125-D exhaust pipe 1 /ea $ 51.00
2-1 106003-0002 AT125-D gasket Φ24*33*5.5 1 /ea $ 8.50
3 903007-0003 AT125-D nut M6 2 /ea $ 3.40
4 903019-0013-03 AT125-D bolt M8*20 1 /ea $ 3.40
5 903007-0005 AT125-D nut M8 1 /ea $ 3.40

No. Parts No. Model EN name Qty/vehicle QTY Retail

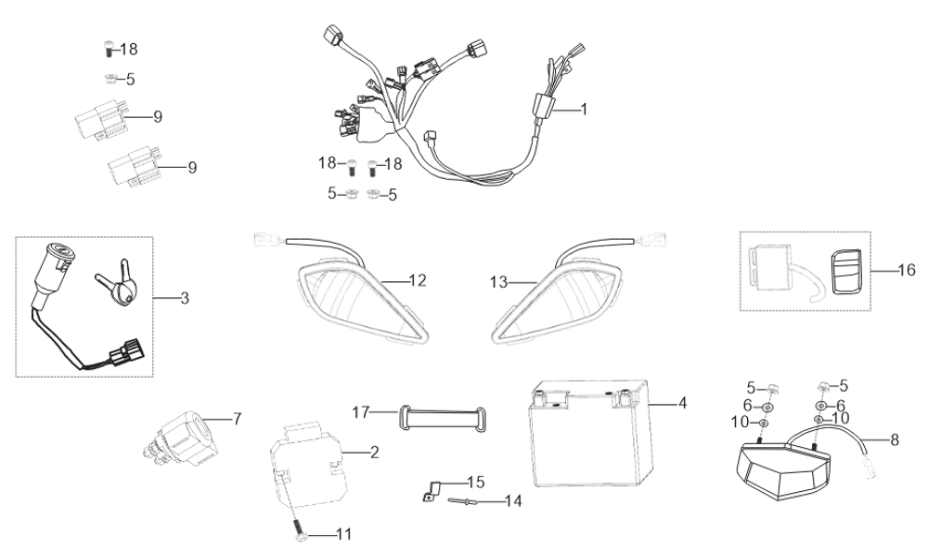

1 309001-0209 AT125-D main cable 1 /ea $ 127.50
1 309001-0209-02 AT125-D main cable(22.11.24~) 1 /ea $ 144.50
2 302001-0016 AT125-D voltage regulator 1 /ea $ 34.00
3 314001-0003-04 AT125-D electric switch 1 /ea $ 17.00
4 312001-0040 AT125-D battery 1 /ea $ 64.60
5 903006-0001-03 AT125-D nut M5 5 /ea $ 3.40
6 908003-0002 AT125-D washer Φ5.5*14.5*2 2 /ea $ 2.55
7 301001-0001 AT125-D relay 1 /ea $ 20.40
8 308002-0005-02 AT125-D tail light 1 /ea $ 30.60
9 301001-0009 AT125-D relay 2 /ea $ 20.40
10 903002-0002-03 AT125-D washer Φ6*18*1.5 2 /ea $ 3.40
11 903018-0003-03 AT125-D bolt M6*12 1 /ea $ 3.40
12 308001-0025-04 AT125-D front right light 1 /ea $ 42.50
13 308001-0024-04 AT125-D front left light 1 /ea $ 42.50
14 905001-0003 AT125-D blind rivet Φ3.5*12 1 /ea $ 3.40
15 568000-0205 AT125-D fixed support 1 /ea $ 5.10
16 316001-0009-02 AT125-D remote controller 1 /ea $ 42.50
17 908007-0021 AT125-D battery belt 1 /ea $ 10.20
18 903013-0001-02 AT125-D screw M5*12 3 /ea $ 3.40

No. Parts No. Model EN name Qty/vehicle QTY Retail

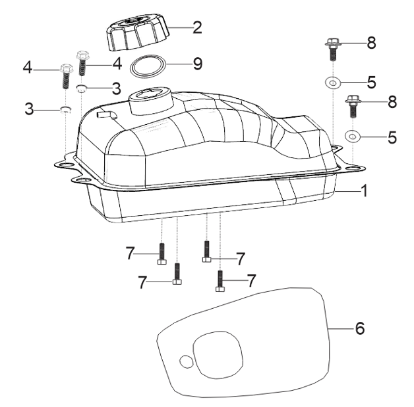

1 805002-0029 AT125-D fuel tank 1 /ea $ 68.00
1 805002-0029-02 AT125-D fuel tank(11.28.24~) 1 /ea $ 68.00
2 805003-0021 AT125-D fuel tank cover 1 /ea $ 13.60
3 103003-0001 AT125-D oil cooler busher 2 /ea $ 3.40
4 903019-0007 AT125-D bolt M6*25 2 /ea $ 3.40
5 903002-0004-03 AT125-D washer Φ8*16*1.5 2 /ea $ 3.40
6 909010-0034 AT125-D heat-insulating film 1 /ea $ 13.60
7 903013-0002-02 AT125-D screw M5*20 4 /ea $ 3.40
8 903020-0003-03 AT125-D bolt M6*16 2 /ea $ 3.40
9 908003-0021 AT125-D seal ring(12.10.24~) 1 /ea $ 5.10

No. Parts No. Model EN name Qty/vehicle QTY Retail

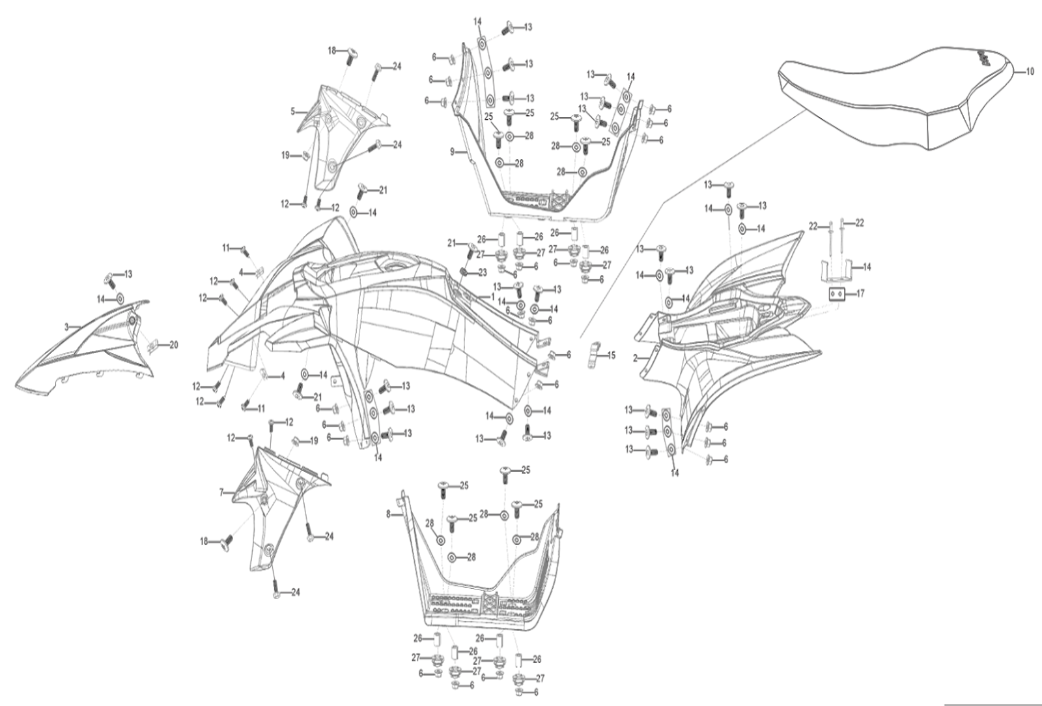

1 803002-0012-02W AT125-D front cover white 1 /ea $ 76.50
1 803002-0012-02B AT125-D front cover black 1 /ea $ 76.50
2 803002-0013 AT125-D rear cover black 1 /ea $ 76.50
3 803002-0016 AT125-D head cover black 1 /ea $ 25.50
4 903008-0018 AT125-D nut ST4.8 11*17*0.8 2 /ea $ 3.40
5 803002-0015-02W AT125-D right cover white 1 /ea $ 30.60
5 803002-0015-02B AT125-D right cover black 1 /ea $ 30.60
6 903006-0002-03 AT125-D nut M6 24 /ea $ 3.40
7 803002-0014-02W AT125-D left cover white 1 /ea $ 30.60
7 803002-0014-02B AT125-D left cover black 1 /ea $ 30.60
8 803002-0017 AT125-D left footpeg 1 /ea $ 40.80
9 803002-0018 AT125-D right footpeg 1 /ea $ 40.80
10 701000-0036-02 AT125-D seat 1 /ea $ 59.50
11 903010-0005-03 AT125-D screw ST4.2*16 2 /ea $ 3.40
12 903010-0004-03 AT125-D screw ST4.2*12 8 /ea $ 3.40
13 903020-0055 AT125-D bolt M6*16 21 /ea $ 3.40
14 908003-0002 AT125-D rubber washer Φ5.5*15*2 23 /ea $ 2.55
15 568000-0068 AT125-D seat front limit bracket 1 /ea $ 25.50
16 315003-0001 AT125-D CDI bracket 1 /ea $ 8.50
17 315003-0004 AT125-D CDI bracket piece 1 /ea $ 8.50
18 903012-0003-03 AT125-D screw TM5*16 2 /ea $ 3.40
19 903006-0001-03 AT125-D nut M5 2 /ea $ 3.40
20 903008-0020-03 AT125-D nut M6 20*16*1.0 1 /ea $ 3.40
21 903020-0056 AT125-D bolt M6*20 3 /ea $ 3.40
22 905001-0003 AT125-D blind rivet Φ3.5*12 2 /ea $ 3.40
23 902001-0119 AT125-D busher Φ6.2*8.2*H5 1 /ea $ 3.40
24 903018-0004-03 AT125-D bolt M6*16 4 /ea $ 3.40
25 903012-0013-02 AT125-D screw TM6*30 8 /ea $ 3.40
26 902001-0190 AT125-D busher Φ6.3*Φ10*H14 8 /ea $ 3.40
27 908003-0016 AT125-D Shock absorbing rubber block 8 /ea $ 3.40
28 903002-0002-03 AT125-D washer Φ6*18*1.5 8 /ea $ 3.40

No. Parts No. Model EN name Qty/vehicle QTY Retail

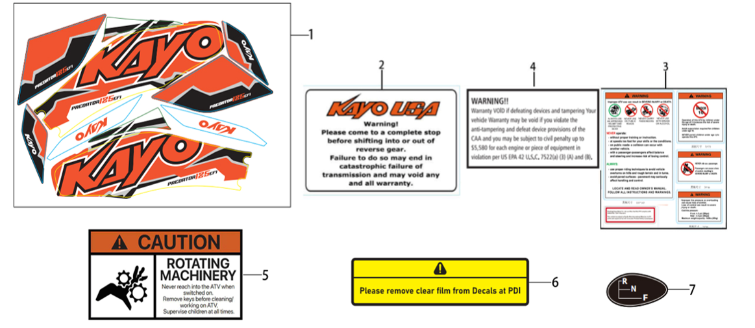

1 804002-0103 AT125-D sticker 1 /ea $ 51.00
2 802013-0047 AT125-D safety sticker 1 /ea $ 8.50
3 909006-0004 AT125-D safety sticker 1 /ea $ 8.50
3 909006-0004-02 AT125-D safety sticker(11.26.24~) 1 /ea $ 8.50
4 802013-0077 AT125-D safety sticker 1 /ea $ 8.50
5 804019-0078 AT125-D safety sticker 1 /ea $ 8.50
6 802013-0081 AT125-D safety sticker 1 /ea $ 8.50
7 804019-0106 AT125-D shift plastic label 1 /ea $ 8.50

No. Parts No. Model EN name Qty/vehicle QTY Retail

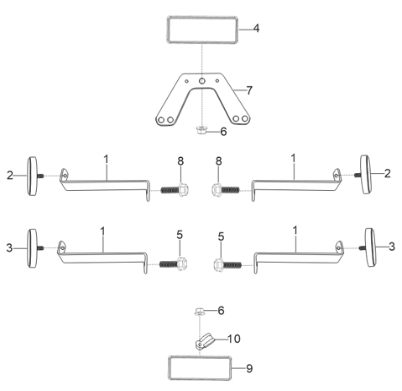

1 568000-0065 AT125-D side reflector fixing plate 4 /ea $ 10.20
2 308006-0011 AT125-D front reflector 2 /ea $ 6.80
3 308006-0012 AT125-D rear reflector 2 /ea $ 6.80
4 308006-0010 AT125-D rear centrual reflector 1 /ea $ 6.80
5 903019-0012-03 AT125-D bolt M8*16 2 /ea $ 3.40
6 903006-0001-03 AT125-D nut M5 2 /ea $ 3.40
7 568000-0066 AT125-D rear reflector mounting plate 1 /ea $ 10.20
8 903019-0011-03 AT125-D bolt M8*12 2 /ea $ 3.40
9 308006-0024 AT125-D front center reflector 1 /ea $ 8.50
10 908007-0072 AT125-D clip Φ18/R 1 /ea $ 5.10

No. Parts No. ENGLISH DESCRIPTION Qty/vehicle QTY Retail

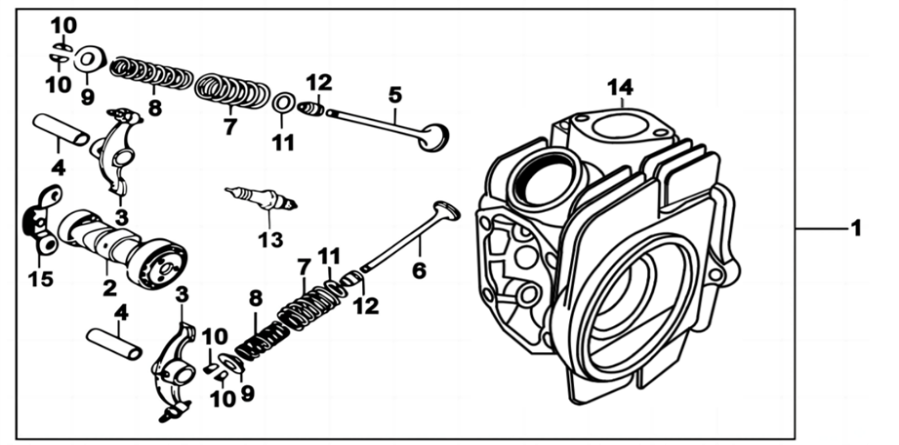

1 I01020-0010 Cylinder head assy 1 /ea $ 144.50
2 I01021-0030 Camshaft component 1 /ea $ 40.80
3 H01021-0040 Valve rocker arm 2 /ea $ 34.00
4 H01021-0050 Rocker arm shaft 2 /ea $ 8.50
5 I01021-0060 Intake valve 1 /ea $ 42.50
6 I01021-0070 Exhaust valve 1 /ea $ 42.50
7 H01021-0080 Valve outer spring 2 /ea $ 11.90
8 H01021-0090 Valve inner spring 2 /ea $ 11.90
9 H01021-0100 Valve spring seat 2 /ea $ 8.50
10 H01021-0110 Valve locker 4 /ea $ 6.80
11 H01021-0120 Valve spring gasket
16.5×23×0.8		 2 /ea $ 8.50
12 H01021-0020 Valve oil seal 2 /ea $ 10.20
13 H01020-0060 Spark plug 1 /ea $ 13.60
14 I01021-0010 Cylinder head 1 /ea $ 76.50
15 I01021-0130 Camshaft limiting device 1 /ea $ 13.60

No. Parts No. ENGLISH DESCRIPTION Qty/vehicle QTY Retail
1 I01020-0080 Cylinder head cover 1 /ea $ 30.60
2 I01020-0090 Right cylinder cover 1 /ea $ 25.50
3 I01020-0100 Left cylinder cover 1 /ea $ 25.50
4 I01020-0110 Valve cover 2 /ea $ 17.00
5 H01080-0020 Intake pipe 1 /ea $ 25.50
6 H01080-0030 Insulation pad 1 /ea $ 13.60
7 H01080-0040 Intake pipe gasket，Non asbest 2 /ea $ 6.80
8 I01080-0050 Carburetor gasket,Non asbest 1 /ea $ 6.80
9 I01080-0060 Insulation pad 1 /ea $ 13.60
10 I01020-0120 Cylinder head cover gasket，Non asbest 1 /ea $ 13.60
11 H01020-0130 Right cylinder cover gasket，Non asbest 1 /ea $ 13.60
12 I01020-0140 Left cylinder cover gasket，Non asbest 1 /ea $ 13.60
13 A00145-0701-24 Cap type nut M7 4 /ea $ 5.10
14 A00160-0701 Iron washer 7.2×14×2 3 /ea $ 5.10
15 A00160-0702 Copper washer 7.3×14×2 1 /ea $ 5.10
16 A00160-0604 Aluminium washer 6×13×2 1 /ea $ 5.10
17 A00280-3001 O-seal ring 29.6×3.2 2 /ea $ 6.80
18 A00103-0601-25 Bolt M6×110 1 /ea $ 17.00
19 A00103-0606-24 Bolt M6×25 2 /ea $ 5.10
20 A00103-0607-24 Bolt M6×28 4 /ea $ 5.10
21 A00108-0601-25 Stud M6×35 2 /ea $ 13.60

No. Parts No. ENGLISH DESCRIPTION Qty/vehicle QTY Retail

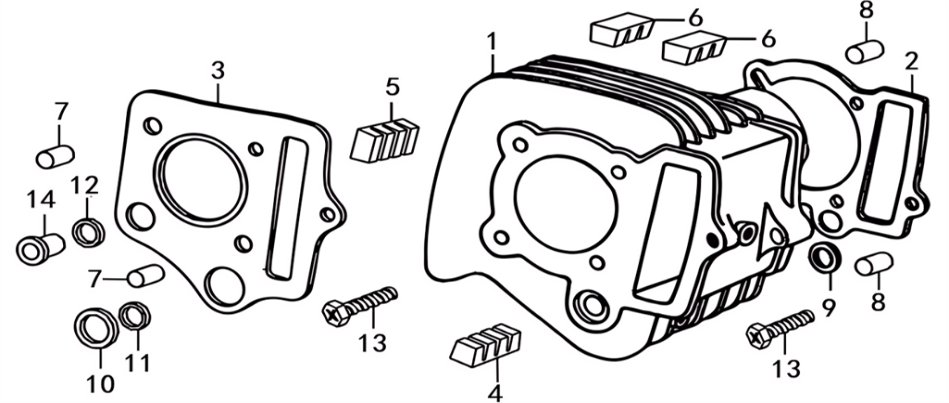

1 I01020-0020 Cylinder 1 /ea $ 93.50
2 I01020-0030 Cylinder gasket，Non asbest 1 /ea $ 17.00
3 I01020-0150 Cylinder head gasket，Non asbest 1 /ea $ 17.00
4 H01020-0050 Cylinder damping rubber A 1 /ea $ 8.50
5 H01020-0040 Cylinder damping rubber B 1 /ea $ 8.50
6 H01020-0210 Cylinder damping rubber C 2 /ea $ 8.50
7 A00206-0802 Dowel pin 8×14 2 /ea $ 5.10
8 A00206-0803 Dowel pin 8×12 2 /ea $ 5.10
9 H01020-0160 Seal ring 11.5×16×2.5 1 /ea $ 6.80
10 H01020-0170 Seal ring 14.5×18.5×2.5 1 /ea $ 6.80
11 A00181-1101 Squre iron ring 15×11×1.5 1 /ea $ 6.80
12 H01020-0180 Seal ring 9×11.5×1.5 1 /ea $ 6.80
13 A00128-0601-25 Connecting bolt M6×23 2 /ea $ 5.10
14 H01020-0070 Bush 1 /ea $ 5.10

No. Parts No. ENGLISH DESCRIPTION Qty/vehicle QTY Retail

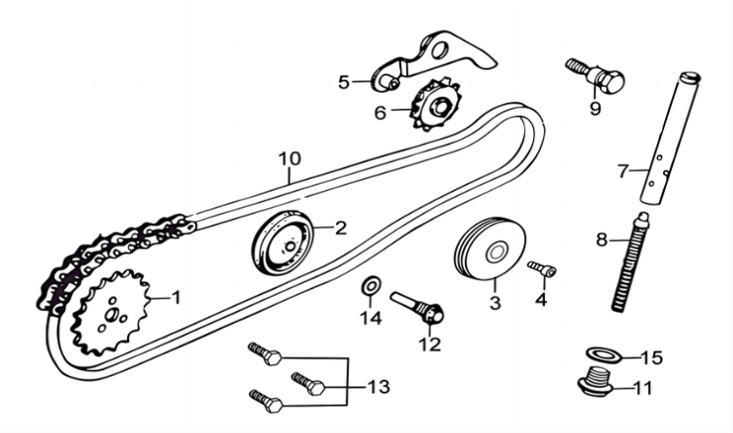

1 H01023-0010 Timing driven sprocket 28T 1 /ea $ 25.50
2 H01023-0090-01 Chain guide roller 1 /ea $ 13.60
3 I01023-0110 Chain tension roller Ⅱ 1 /ea $ 17.00
4 I01023-0120 Chain tension roller Ⅱ pin shaft 1 /ea $ 8.50
5 H01023-0030 Tensioning arm 1 /ea $ 17.00
6 H01023-0040 Tensioning Roller 1 /ea $ 17.00
7 H01023-0070 Tensioning bar 1 /ea $ 25.50
8 H01023-0060 Spring 1 /ea $ 17.00
9 H01023-0050 Tensioning arm pin shaft M8×20 1 /ea $ 13.60
10 H01023-0020 Timing chain 84-25 1 /ea $ 25.50
11 H01023-0130 Sealing screw plug M14×1.5 1 /ea $ 17.00
12 H01023-0100 Chain guide roller pin shaft M8×27 1 /ea $ 8.50
13 A00100-0501-65 Bolt M5×12 3 /ea $ 5.10
14 A00160-0802 Aluminum washer 8×14×2 1 /ea $ 5.10
15 A00160-1402 Aluminum washer 14×20×1.5 1 /ea $ 5.10

No. Parts No. ENGLISH DESCRIPTION Qty/vehicle QTY Retail

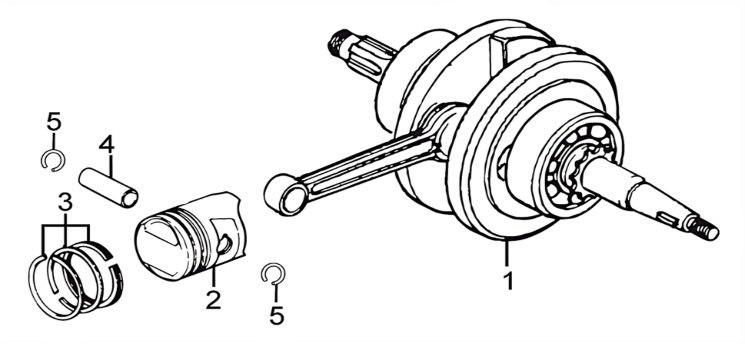

1 I01031-0010 Crank connecting rod assembly 1 /ea $ 110.50
2 I01030-0030 Piston 1 /ea $ 42.50
3 I01032-0010-01 Piston ring sets 1 /ea $ 34.00
4 I01030-0040 Piston pin 1 /ea $ 17.00
5 I01030-0050 Piston pin retaining ring 2 /ea $ 6.80

No. Parts No. ENGLISH DESCRIPTION Qty/vehicle QTY Retail
1 I01010-0020 Right crankcase 1 /ea $ 76.50
2 I01010-0010 Left crankcase 1 /ea $ 85.00
3 I01010-0100 Crankcase gasket，Non asbest 1 /ea $ 17.00
4 H01010-0140 Overflow pipe clamp 1 /ea $ 6.80
5 A00343-0701 Air pip 1 /ea $ 8.50
6 A00206-1001 Dowel pin 10×14 2 /ea $ 6.80
7 A00108-0702-86 Stud A M7×205 2 /ea $ 20.40
8 A00108-0701-86 Stud B M7×195 2 /ea $ 20.40
9 A00103-0616-24 Bolt M6×55 1 /ea $ 6.80
10 A00103-0613-24 Bolt M6×65 5 /ea $ 6.80
11 A00103-0614-24 Bolt M6×70 1 /ea $ 8.50
12 A00283-1201 Oil seal 11.6×24×10 1 /ea $ 17.00
13 A00283-1702 Oil seal 17×29×5 1 /ea $ 17.00
14 H01020-0190 Shock-absorbing rubber sleeve
（short）		 3 /ea $ 13.60
15 H01020-0200 Shock-absorbing rubber sleeve
（long）		 1 /ea $ 13.60

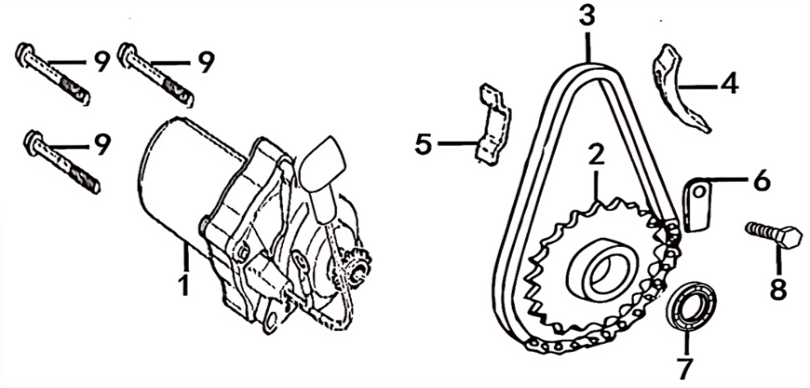

No. Parts No. ENGLISH DESCRIPTION Qty/vehicle QTY Retail
1 H0106D-0010 Starting motor 1 /ea $ 51.00
2 H0106D-0030 Starting sprocket 41T 1 /ea $ 34.00
3 H0106D-0020 Starting chain 1 /ea $ 17.00
4 H0106D-0040 Starter chain guide Ⅰ 1 /ea $ 13.60
5 H0106D-0050 Starter chain guide Ⅱ 1 /ea $ 13.60
6 H0106D-0060 Limit plate 1 /ea $ 8.50
7 A00283-1901 Oil seal 18.9×30×5 1 /ea $ 8.50
8 A00100-0604-24 Hexagon head bolt M6×12 1 /ea $ 5.10
9 A00103-0610-24 Bolt M6×50 3 /ea $ 6.80

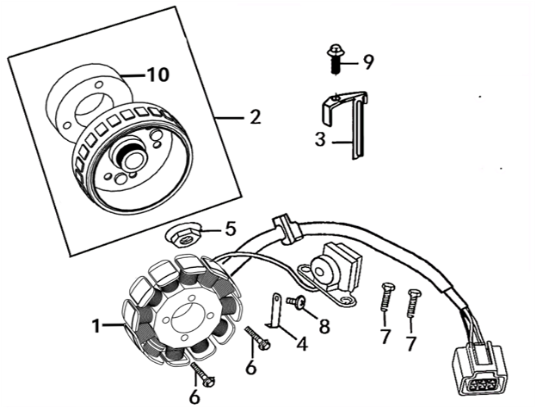

No. Parts No. ENGLISH DESCRIPTION Qty/vehicle QTY Retail
1 I01070-0020 Magneto stator 1 /ea $ 59.50
2 I01070-0010 Magneto rotor 1 /ea $ 68.00
3 H01070-0040 Pressing plate 1 /ea $ 6.80
4 H01070-0050 Pressing plate 1 /ea $ 5.10
5 A00159-1002-23 Nut M10×1.25 1 /ea $ 8.50
6 A00103-0605-24 Bolt M6×22 2 /ea $ 5.10
7 A00100-0501-24 Hexagon headed bolt M5×12 2 /ea $ 5.10
8 A00124-0501-24 Cross pan head screw M5×6 1 /ea $ 5.10
9 A00103-0602-24 Bolt M6×16 1 /ea $ 5.10
10 H02070-0011 One-way clutch 1 /ea $ 42.50

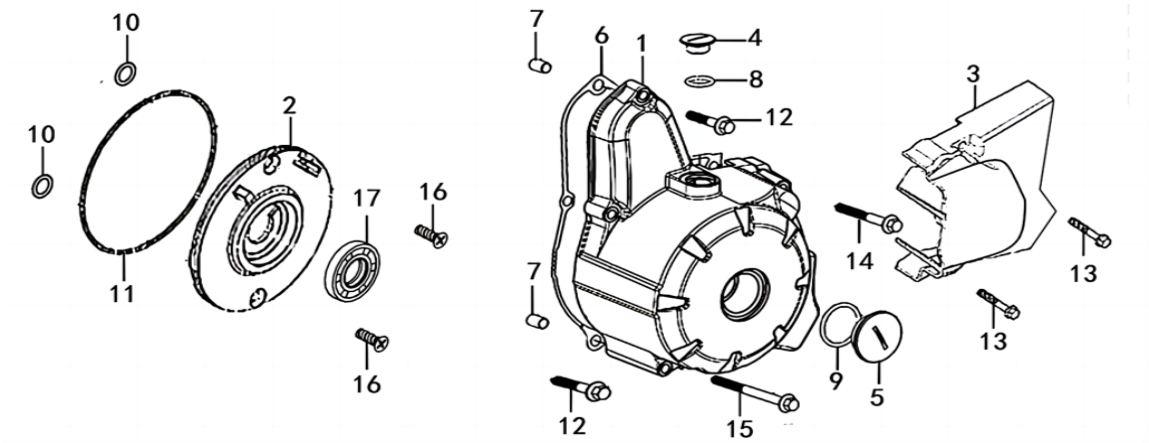

No. Parts No. ENGLISH DESCRIPTION Qty/vehicle QTY Retail
1 H01010-0030 Left front cover 1 /ea $ 59.50
2 H01010-0070 Sealing oil pan 1 /ea $ 13.60
3 H01010-0050 Left rear cover 1 /ea $ 30.60
4 H01010-0090 Cap, small view hole 1 /ea $ 13.60
5 H01010-0080 Cap，big view hole 1 /ea $ 17.00
6 H01010-0120 Left front cover gasket，Non asbest 1 /ea $ 17.00
7 A00206-0803 Dowel pin 8×12 2 /ea $ 5.10
8 A00280-1401 O-ring 13.8×2.5 1 /ea $ 6.80
9 A00280-2801 O-ring 27.4×2.4 1 /ea $ 6.80
10 A00280-0702 O-ring 6.8×1.9 2 /ea $ 5.10
11 A00280-0701 O-ring 107×2 1 /ea $ 6.80
12 A00103-0608-24 Bolt M6×32 2 /ea $ 5.10
13 A00103-0607-24 Bolt M6×28 2 /ea $ 5.10
14 A00103-0610-24 Bolt M6×50 1 /ea $ 6.80
15 A00103-0614-24 Bolt M6×70 1 /ea $ 8.50
16 A00126-0601-24 Countersunk head screw M6×16 2 /ea $ 5.10
17 A00283-3001 Oil seal 30×42×4.5 1 /ea $ 13.60

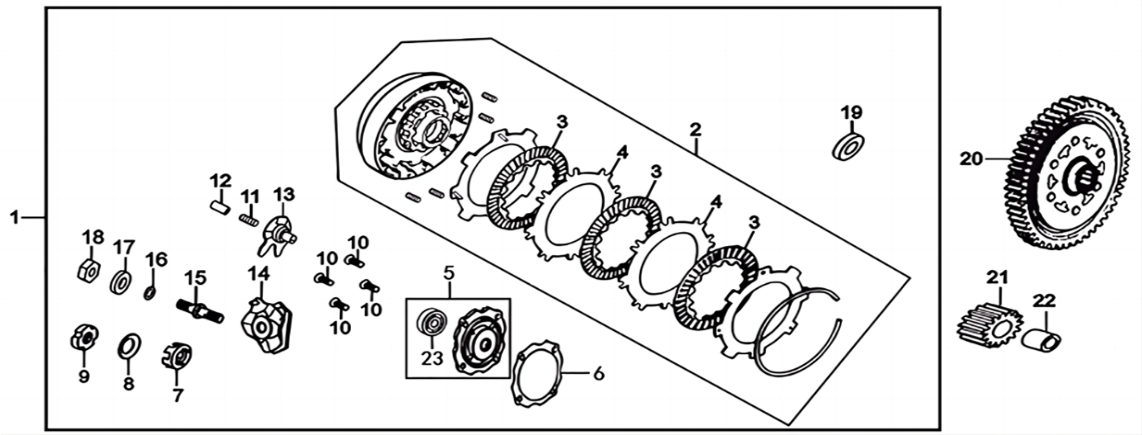

No. Parts No. ENGLISH DESCRIPTION Qty/vehicle QTY Retail
1 H01050-0000-01 Clutch components 1 /ea $ 161.50
2 H01050-0010-01 Clutch body 1 /ea $ 85.00
3 H01050-0012-01 Friction plate 3 /ea $ 10.20
4 H01050-0013-01 Steel sheet 2 /ea $ 10.20
5 H01050-0060 End Cover， Clutch 1 /ea $ 17.00
6 H01050-0070 End Cover gasket，Non asbest 1 /ea $ 17.00
7 A00163-1401 Stop washer 1 /ea $ 6.80
8 A00164-1401 Dish washer 1 /ea $ 6.80
9 A00159-1401 Lock nut 1 /ea $ 8.50
10 A00126-0501-24 Screw M5×12 4 /ea $ 5.10
11 A00440-0601 Spring 1 /ea $ 6.80
12 H01051-0060 Tubing 1 /ea $ 6.80
13 H01051-0021 Cam plate assembly 1 /ea $ 13.60
14 H01051-0041 Tappet 1 /ea $ 20.40
15 H01051-0031 Adjusting bolt 1 /ea $ 8.50
16 A00280-0703 O-Ring 7.5×1.8 1 /ea $ 5.10
17 A00160-0803 Iron washer 8×16×2 1 /ea $ 5.10
18 A00140-0801-24 Nut M8 1 /ea $ 5.10
19 I01051-0050 Spacer sleeve 17×26×3 1 /ea $ 8.50
20 H01050-0020 Driven gear comp 69T 1 /ea $ 30.60
21 H01050-0050 Active gear 17T 1 /ea $ 18.70
22 H01050-0040 Bushing 1 /ea $ 6.80
23 A00260-1203 Bearing 6000 1 /ea $ 13.60

No. Parts No. ENGLISH DESCRIPTION Qty/vehicle QTY Retail
1 I01100-0010 Oil pump 1 /ea $ 51.00
2 I01100-0020 Gasket,Oil pump 1 /ea $ 8.50
3 H01020-0110 Valve cover 1 /ea $ 17.00
4 I01100-0030 Filter screen 1 /ea $ 8.50
5 I01100-0050 Filter screen spring 1 /ea $ 8.50
6 A00280-3001 O-ring 29.6×3.2 1 /ea $ 6.80
7 A00206-0803 Dowel pin 8×12 2 /ea $ 5.10
8 A00126-0603-24 Countersunk head screw M6×35 2 /ea $ 5.10
9 A00126-0602-24 Countersunk head screw M6×30 1 /ea $ 5.10

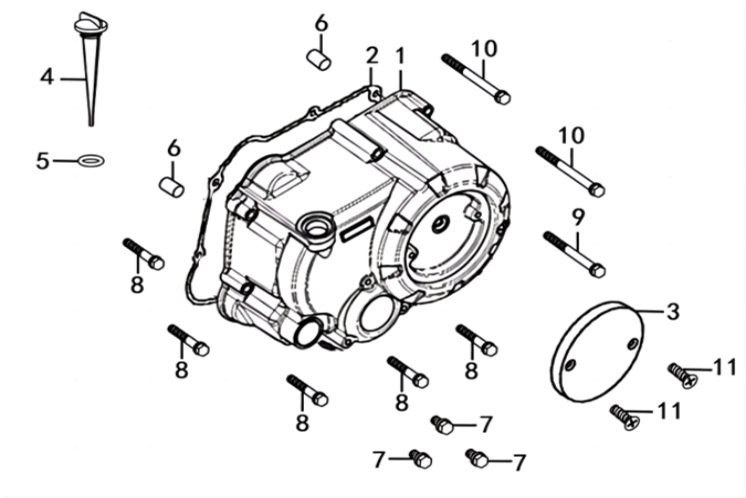

No. Parts No. ENGLISH DESCRIPTION Qty/vehicle QTY Retail
1 H01010-0040 Right crankcase cover 1 /ea $ 68.00
2 H01010-0110 Right crankcase cover gasket，Non asbest 1 /ea $ 17.00
3 H01010-0060 Trademark cover 1 /ea $ 25.50
4 H01010-0131 Dipstick 1 /ea $ 17.00
5 A00280-1801 O-ring 18×3×3.5 1 /ea $ 6.80
6 A00206-0803 Dowel pin 8×12 2 /ea $ 5.10
7 A00103-0611-24 Bolt M6×6 3 /ea $ 5.10
8 A00103-0609-24 Bolt M6×40 5 /ea $ 6.80
9 A00103-0614-24 Bolt M6×70 1 /ea $ 6.80
10 A00103-0617-24 Bolt M6×85 2 /ea $ 8.50
11 A00124-0601-24 Cross pan head Screw M6×12 2 /ea $ 5.10

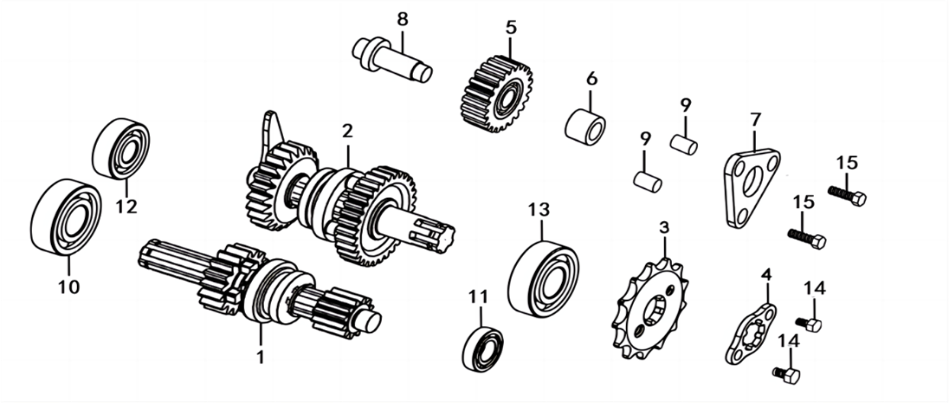

No. Parts No. ENGLISH DESCRIPTION Qty/vehicle QTY Retail
1 H01040-0011 Main shaft transmission 1 /ea $ 59.50
2 H01040-0021 Counter shaft transmission 1 /ea $ 59.50
3 H01040-0060 Drive sprocket 1 /ea $ 25.50
4 H01040-0070 Fixing plate 1 /ea $ 10.20
5 H01040-0050 Reverse gear 1 /ea $ 25.50
6 H01040-0080 Reverse gear shaft sleeve 1 /ea $ 6.80
7 H01040-0030 Reverse gear shaft positioning plate 1 /ea $ 13.60
8 H01040-0040 Reverse gear shaft 1 /ea $ 17.00
9 A00206-0803 Dowel pin 8×12 2 /ea $ 5.10
10 A00260-1702 Bearing 6203 1 /ea $ 17.00
11 A00260-1201 Bearing 6001 1 /ea $ 13.60
12 A00260-1202 Bearing 6201 1 /ea $ 13.60
13 A00260-1703 Bearing TM6203 1 /ea $ 17.00
14 A00100-0601-25 Hexagon headed bolt M6×8 2 /ea $ 5.10
15 A00100-0603-24 Hexagon headed bolt M6×22 2 /ea $ 5.10

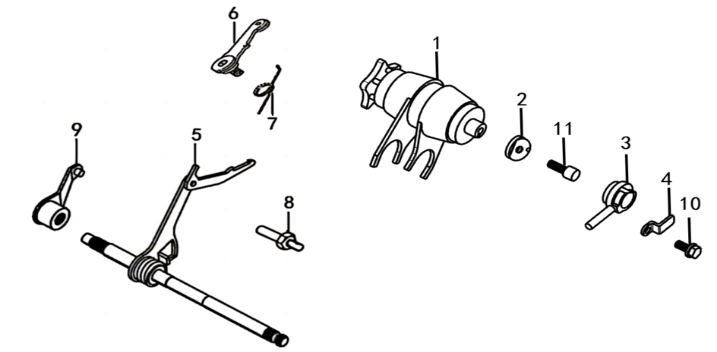

No. Parts No. ENGLISH DESCRIPTION Qty/vehicle QTY Retail
1 H01090-0010 Variable speed drum 1 /ea $ 59.50
2 H01090-0040 Shift contact, gear indicating switch 1 /ea $ 13.60
3 H01090-0030 Gear display switch 1 /ea $ 20.40
4 H01090-0060 Pressing plate 1 /ea $ 8.50
5 H01090-0020 Shift shaft 1 /ea $ 51.00
6 H01090-0050 Positioning plate 1 /ea $ 17.00
7 H01090-0070 Spring 1 /ea $ 10.20
8 H01090-0080 Fixed bolt M8×34 1 /ea $ 8.50
9 H01050-0030 Clutch operating arm 1 /ea $ 17.00
10 A00103-0601-24 Bolt M6×12 1 /ea $ 5.10
11 A00106-0601-65 Hexagonal socket bolt M6×16 1 /ea $ 8.50



Related Products
