Kayo TD110 EFI Engine Schematics

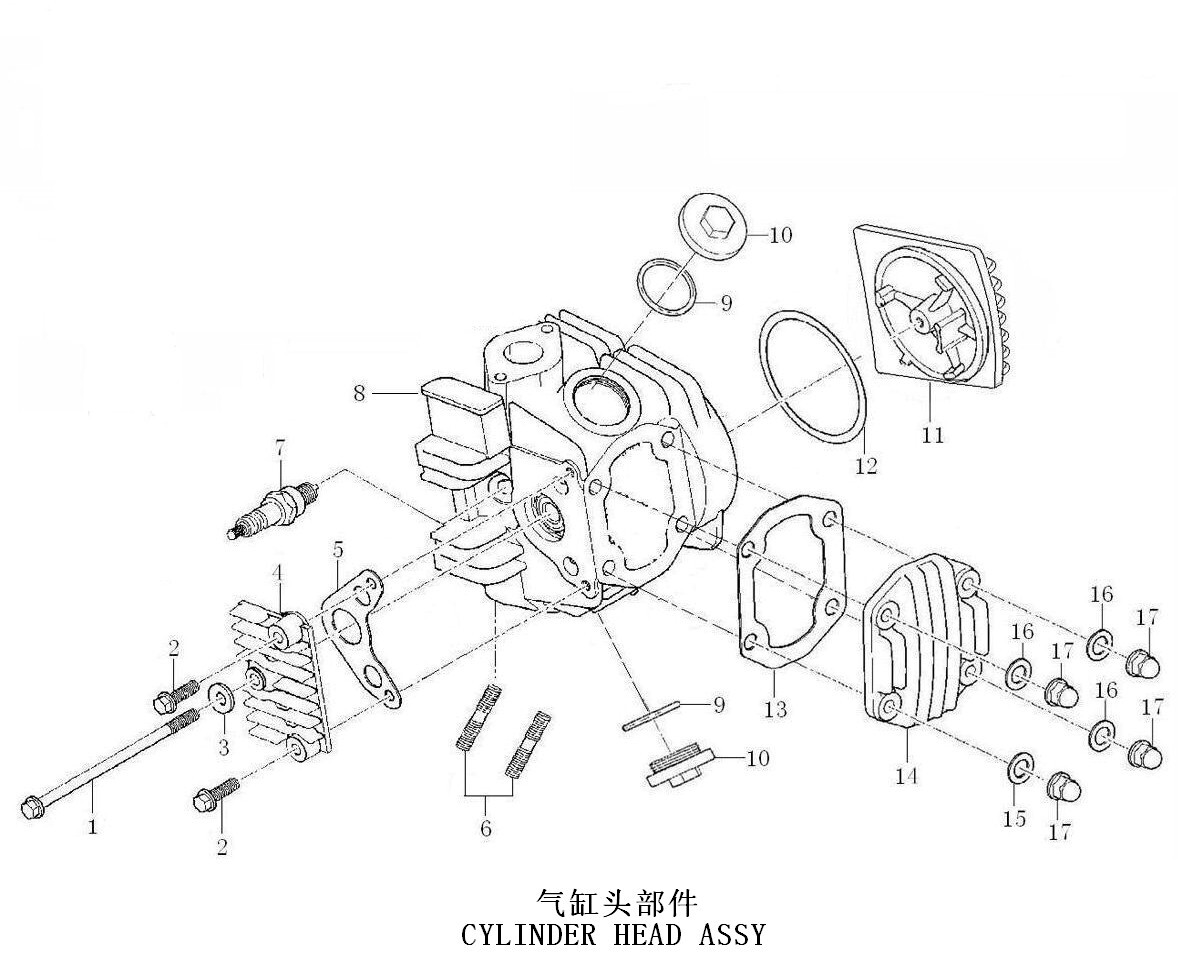

| CYLINDER HEAD ASSY | |||||
 |
|||||
| No. | U8 Code | ENGLISH DESCRIPTION | Qty/vehicle | QTY | Retail |
| 1 | 101025-0257 | Bolt, M6×110 | 1 | /ea | $ 17.00 |
| 2 | 101025-0050 | Bolt, M6×20 | 2 | /ea | $ 5.10 |
| 3 | 101025-0012 | Washer, φ6.5×1×φ12 | 1 | /ea | $ 5.10 |
| 4 | 101025-0259 | Right Cover Cylinder Head | 1 | /ea | $ 25.50 |
| 5 | 101025-0150 | Gasket R.Cylinder Head Cover | 1 | /ea | $ 13.60 |
| 6 | 101025-0254 | Bolt, M6×32 | 2 | /ea | $ 13.60 |
| 7 | H01020-0060 | Spark Plug | 1 | /ea | $ 13.60 |
| 8 | 101026-0295 | Cylinder Head Assy | 1 | /ea | $ 144.50 |
| 9 | 101025-0006 | O-Ring, φ29.6×3.2 | 2 | /ea | $ 6.80 |
| 10 | 101025-0260 | Cover Valve Chamber | 2 | /ea | $ 17.00 |
| 11 | 101025-0258 | Left Cover Cylinder Head | 1 | /ea | $ 25.50 |
| 12 | 101025-0149 | Gasket L Cylinder Head Cover | 1 | /ea | $ 13.60 |
| 13 | 101025-0148 | Gasket Cylinder Head Upper Cover | 1 | /ea | $ 13.60 |
| 14 | 101025-0276 | Upper Cover Cylinder Head | 1 | /ea | $ 30.60 |
| 15 | 101038-0488 | Washer, φ7.3×2.5×φ14 | 1 | /ea | $ 5.10 |
| 16 | 101038-0489 | Washer, φ7.3×2.5×φ14 | 3 | /ea | $ 5.10 |
| 17 | 101038-0585 | Nut M7 | 4 | /ea | $ 5.10 |
| 101026-0316 | ZS/BK110 Cylinder Head Assy | 1 | /ea | $ 144.50 | |

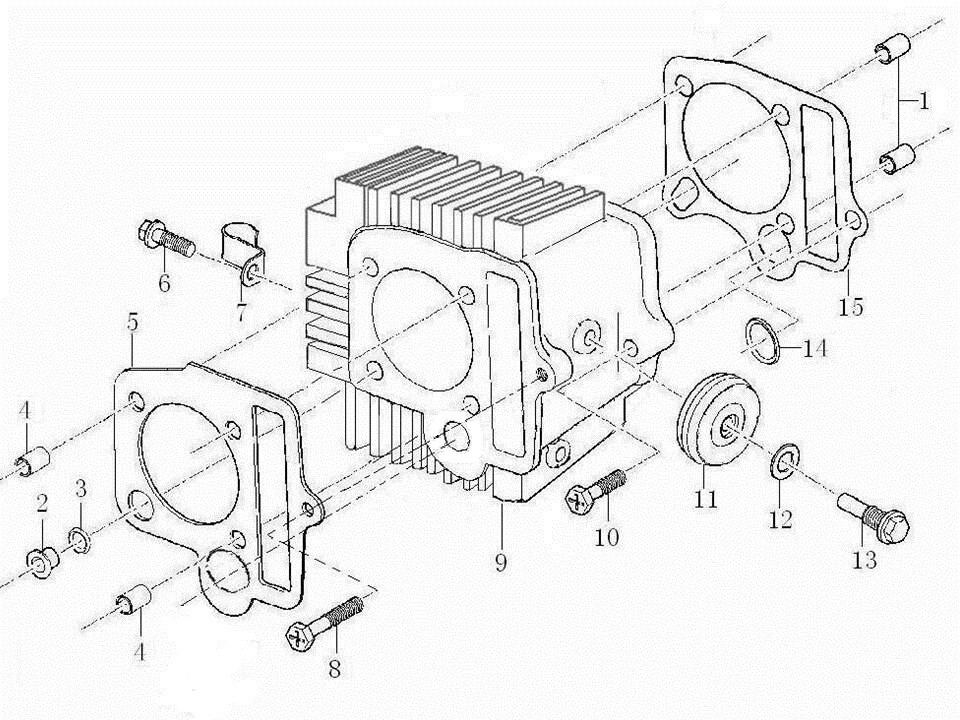

| CYLINDER ASSEMBLY | |||||
 |
|||||
| No. | U8 Code | ENGLISH DESCRIPTION | Qty/vehicle | QTY | Retail |
| 1 | 101038-0421 | Dowel Pin, φ8×12×φ7 | 2 | /ea | $ 5.10 |
| 2 | 101025-0087 | Bush 9.5 | 1 | /ea | $ 6.80 |
| 3 | 101025-0142 | Rectangle Ring, 8×10.8×1.5 | 1 | /ea | $ 6.80 |
| 4 | 101038-0422 | Dowel Pin, φ8×14×φ7 | 2 | /ea | $ 5.10 |
| 5 | 101026-0297 | Gasket Assy Cylinder Head | 1 | /ea | $ 17.00 |
| 6 | 101025-0048 | Bolt, M6×16 | 1 | /ea | $ 3.40 |
| 7 | 101025-0248 | Clip High Voltage Wire | 1 | /ea | $ 5.10 |
| 8 | 101025-0252 | Bolt, M6×23 | 1 | /ea | $ 5.10 |
| 9 | 101026-0296 | Cylinder Block Assembly | 1 | /ea | $ 93.50 |
| 10 | 101025-0253 | Bolt, M6×20 | 1 | /ea | $ 5.10 |
| 11 | 101025-0210 | Guide Chain Roller Set | 1 | /ea | $ 13.60 |
| 12 | 101025-0013 | Washer, φ8×1.5×φ14 | 1 | /ea | $ 5.10 |
| 13 | 101025-0267 | Guide Chain Roller Pin | 1 | /ea | $ 8.50 |
| 14 | 101025-0143 | Rectangle Ring, 11.5×16×2.5 | 1 | /ea | $ 8.50 |
| 15 | 101026-0298 | Gasket Cylinder Block | 1 | /ea | $ 17.00 |

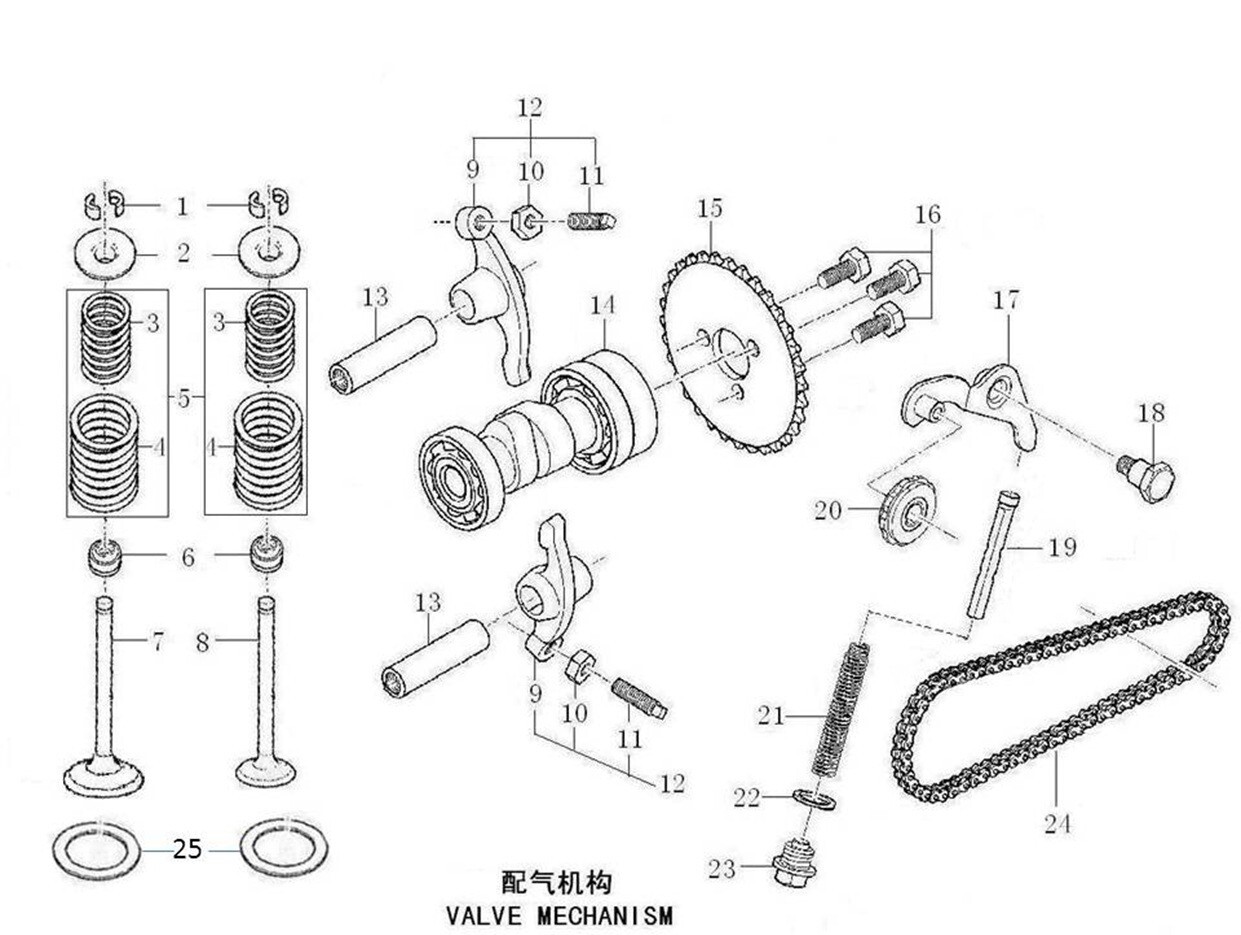

| VALVE MECHANISM | |||||
 |
|||||
| No. | U8 Code | ENGLISH DESCRIPTION | Qty/vehicle | QTY | Retail |
| 1 | 101025-0185 | Valve Locker | 4 | /ea | $ 6.80 |
| 2 | 101025-0188 | SpRing, Seat | 2 | /ea | $ 8.50 |
| 3 | 101026-0299 | Valve Inner Spring | 2 | /ea | $ 8.50 |
| 4 | 101026-0300 | Valve Outer Spring | 2 | /ea | $ 8.50 |
| 5 | 101038-0666 | Inner SpRing,Assy | 2 | /ea | $ 17.00 |
| 6 | 101025-0191 | Seal Valve Stem | 2 | /ea | $ 10.20 |
| 7 | 101025-0183 | Intake Valve | 1 | /ea | $ 25.50 |
| 8 | 101025-0184 | Exhaust Valve | 1 | /ea | $ 25.50 |
| 9 | 101025-0174 | Rocker Arm | 2 | /ea | $ 10.20 |
| 10 | 101025-0176 | Nut Valve Clearance | 2 | /ea | $ 3.40 |
| 11 | 101025-0177 | Screw,Valve Clearance | 2 | /ea | $ 3.40 |
| 12 | 101025-0173 | Rocker Arm Assembly Valve | 2 | /ea | $ 17.00 |
| 13 | 101025-0175 | Rocker Shaft | 2 | /ea | $ 8.50 |
| 14 | 101025-0170 | Gamp Shaft Comp | 1 | /ea | $ 40.80 |
| 15 | 101025-0171 | Timing Driven Sprocket | 1 | /ea | $ 25.50 |
| 16 | 101025-0066 | Bolt, M5×12 | 3 | /ea | $ 5.10 |
| 17 | 101025-0182 | Chain Adjusting Set | 1 | /ea | $ 17.00 |
| 18 | 101025-0179 | Axle Tensioner Lever | 1 | /ea | $ 13.60 |
| 19 | 101025-0181 | Cam Chain Tensioner Push Rod | 1 | /ea | $ 25.50 |
| 20 | 101025-0180 | Chain Tensioning Wheel | 1 | /ea | $ 25.50 |
| 21 | 101025-0178 | Spring | 1 | /ea | $ 17.00 |
| 22 | 101025-0016 | Washer, φ14×1.5×φ20 | 1 | /ea | $ 5.10 |
| 23 | 101025-0250 | Sealing Plug M14×1.5 | 1 | /ea | $ 17.00 |
| 24 | 101025-0172 | Sproket Chain | 1 | /ea | $ 25.50 |
| 25 | 101025-0189 | Outer Valve SpRing, Retainer | 2 | /ea | $ 8.50 |

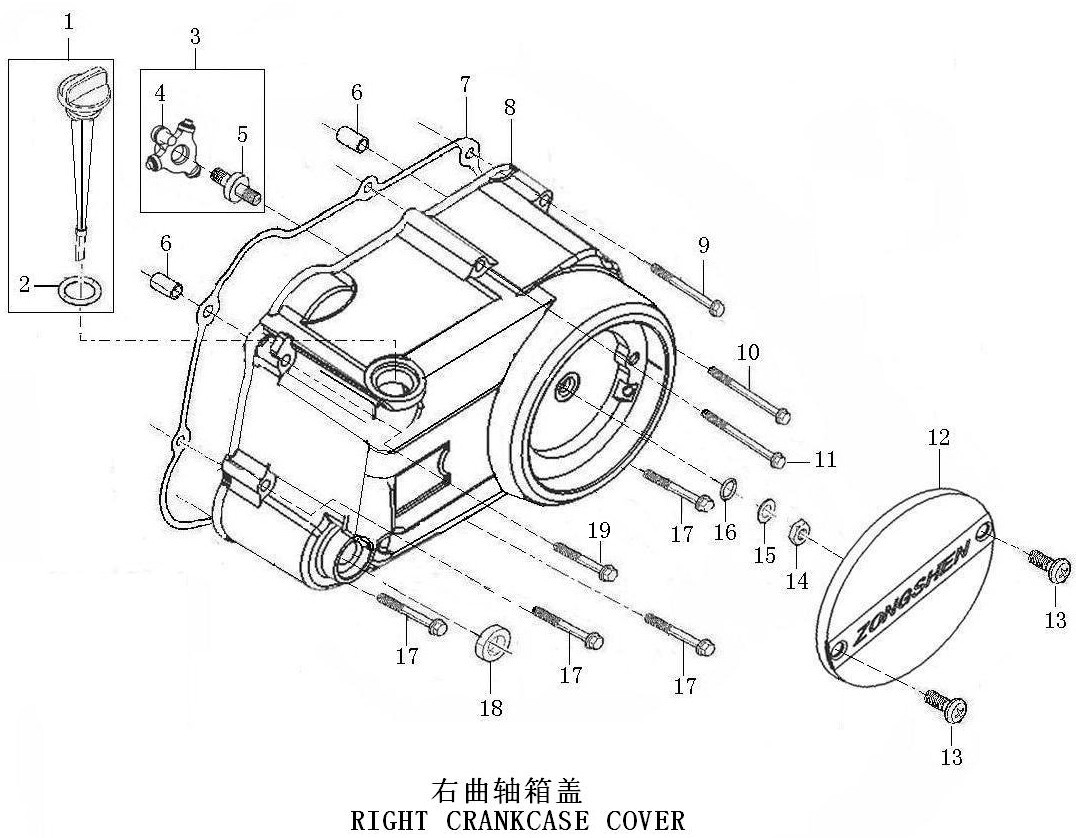

| RIGHT CRANKCASE COVER | |||||
 |
|||||
| No. | U8 Code | ENGLISH DESCRIPTION | Qty/vehicle | QTY | Retail |
| 1 | 101025-0165 | Oil Ruler Assy | 1 | /ea | $ 25.50 |
| 2 | 101025-0003 | O-Ring,φ18×3 | 1 | /ea | $ 6.80 |
| 3 | 101025-0247 | Clutch Tappet | 1 | /ea | $ 28.90 |
| 4 | 101025-0072 | Clutch Tappet | 1 | /ea | $ 20.40 |
| 5 | 101025-0251 | Bolt, M8 | 1 | /ea | $ 8.50 |
| 6 | 101025-0021 | Dowel Pin, φ8×12×φ6.3 | 2 | /ea | $ 6.80 |
| 7 | 101025-0152 | Gasket R. Crankcase Cover | 1 | /ea | $ 17.00 |
| 8 | 101025-0274 | Cover Comp Right Crankcase | 1 | /ea | $ 76.50 |
| 9 | 101025-0061 | Bolt, M6×80 | 1 | /ea | $ 8.50 |
| 10 | 101025-0062 | Bolt, M6×90 | 1 | /ea | $ 8.50 |
| 11 | 101025-0060 | Bolt, M6×65 | 1 | /ea | $ 8.50 |
| 12 | 101025-0275 | Decorate Cover R. Crankcase Cover | 1 | /ea | $ 25.50 |
| 13 | 101025-0036 | Screw, M6×16 | 2 | /ea | $ 5.10 |
| 14 | 101025-0047 | Nut, M8 | 1 | /ea | $ 5.10 |
| 15 | 101025-0071 | Washer | 1 | /ea | $ 5.10 |
| 16 | 101025-0001 | O-Ring, φ8×1.8 | 1 | /ea | $ 5.10 |
| 17 | 101025-0055 | Bolt, M6×40 | 4 | /ea | $ 6.80 |
| 18 | 101025-0162 | Oil Seal 13.8×24×5 | 1 | /ea | $ 17.00 |
| 19 | 101025-0056 | Bolt, M6×42 | 1 | /ea | $ 6.80 |

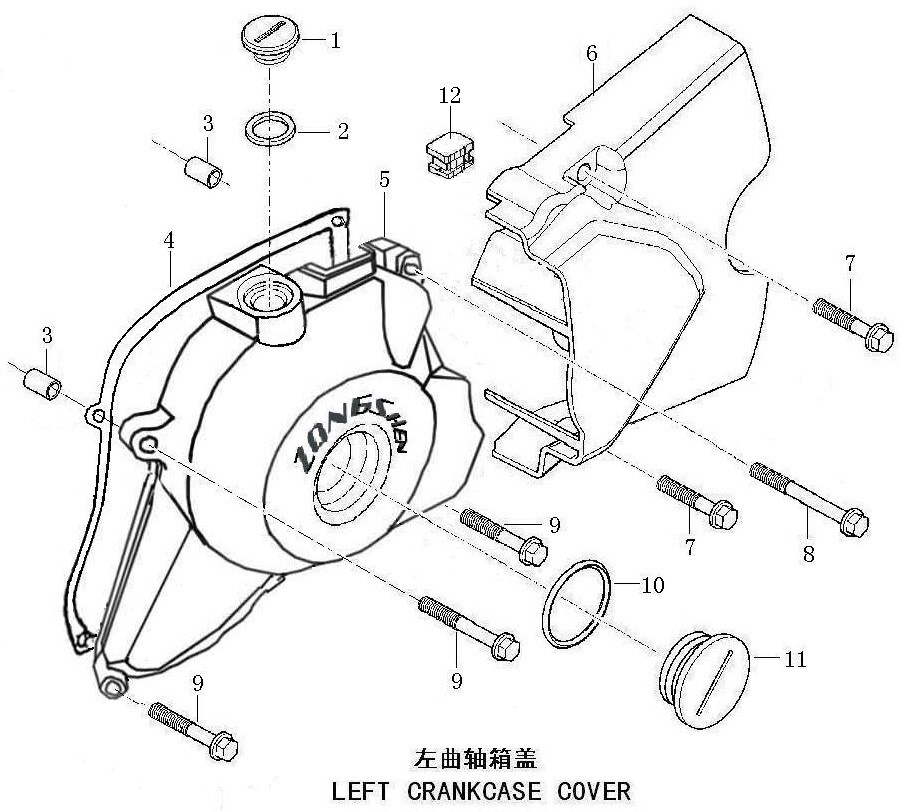

| LEFT CRANKCASE COVER | |||||
 |
|||||
| No. | U8 Code | ENGLISH DESCRIPTION | Qty/vehicle | QTY | Retail |
| 1 | 101025-0261 | Cap Small View Hole | 1 | /ea | $ 13.60 |
| 2 | 101025-0002 | O-Ring, φ13.2×2.65 | 1 | /ea | $ 6.80 |
| 3 | 101025-0021 | Dowel Pin, φ8×12×φ6.3 | 2 | /ea | $ 6.80 |
| 4 | 101025-0158 | Gasket L. Crankcase Cover | 1 | /ea | $ 17.00 |
| 5 | 101025-0272 | Front Part, L. Crankcase Cover | 1 | /ea | $ 59.50 |
| 6 | 101025-0273 | Back Part L. Crankcase Cover | 1 | /ea | $ 30.60 |
| 7 | 101029-1525 | Bolt, M6×30 | 2 | /ea | $ 5.10 |
| 8 | 101025-0058 | Bolt, M6×55 | 1 | /ea | $ 6.80 |
| 9 | 101025-0053 | Bolt, M6×32 | 3 | /ea | $ 5.10 |
| 10 | 101025-0005 | O-Ring, φ27.4×2.65 | 1 | /ea | $ 6.80 |
| 11 | 101025-0262 | Cap Big View Hole | 1 | /ea | $ 17.00 |
| 12 | 101038-0678 | Solid Glue Stuff | 1 | /ea | $ 5.10 |

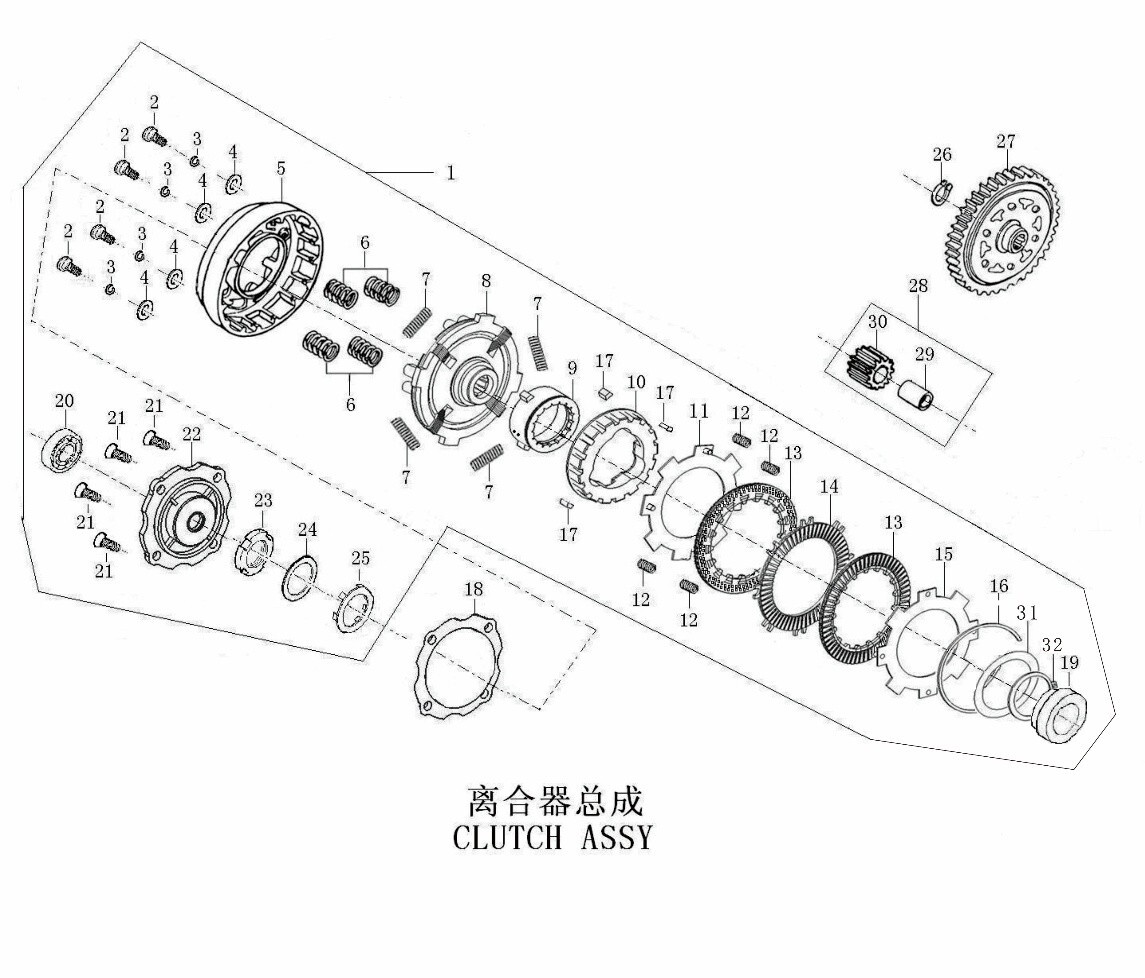

| CLUTCH ASSY | |||||
 |
|||||
| No. | U8 Code | ENGLISH DESCRIPTION | Qty/vehicle | QTY | Retail |
| 1 | 101026-0301 | Clutch Assy | 1 | /ea | $ 76.50 |
| 18 | 101025-0156 | Gasket End Cover | 1 | /ea | $ 17.00 |
| 20 | 101025-0027 | BeaRing,6000 | 1 | /ea | $ 13.60 |
| 21 | 101025-0034 | Screw, M5×12 | 4 | /ea | $ 5.10 |
| 22 | 101025-0103 | End Cover Clutch | 1 | /ea | $ 17.00 |
| 23 | 101025-0067 | Lock Nut Clutch | 1 | /ea | $ 13.60 |
| 24 | 101025-0098 | Dish Washer,Clutch | 1 | /ea | $ 10.20 |
| 25 | 101025-0097 | Stop Washer,Clutch | 1 | /ea | $ 10.20 |
| 26 | 101025-0121 | Circlip | 1 | /ea | $ 6.80 |
| 27 | 101025-0117 | Driven Gear Comp | 1 | /ea | $ 30.60 |
| 28 | 101025-0116 | Driven Gear | 1 | /ea | $ 25.50 |
| 29 | 101025-0220 | Axle Sleeve | 1 | /ea | $ 8.50 |
| 30 | 101025-0115 | Primary Drive Gear | 1 | /ea | $ 17.00 |
| OIL PUMP | |||||
 |
|||||
| No. | U8 Code | ENGLISH DESCRIPTION | Qty/vehicle | QTY | Retail |
| 1 | 101025-0169 | Hub Dump Chain Sprocket Oil Pump | 1 | /ea | $ 17.00 |
| 2 | 101025-0166 | Oil Pump Sprocket Shaft | 1 | /ea | $ 17.00 |
| 3 | 101025-0167 | Bush Sprocket | 1 | /ea | $ 8.50 |
| 4 | 101025-0146 | Gasket Oil Pump | 1 | /ea | $ 13.60 |
| 11 | 101025-0039 | Screw, M6×22 | 1 | /ea | $ 5.10 |
| 12 | 101025-0037 | Screw, M6×16 | 2 | /ea | $ 5.10 |
| 13 | 101026-0305 | Oil Pump Assy | 1 | /ea | $ 51.00 |
| 14 | 101025-0168 | Strainer Oil Filter | 1 | /ea | $ 17.00 |

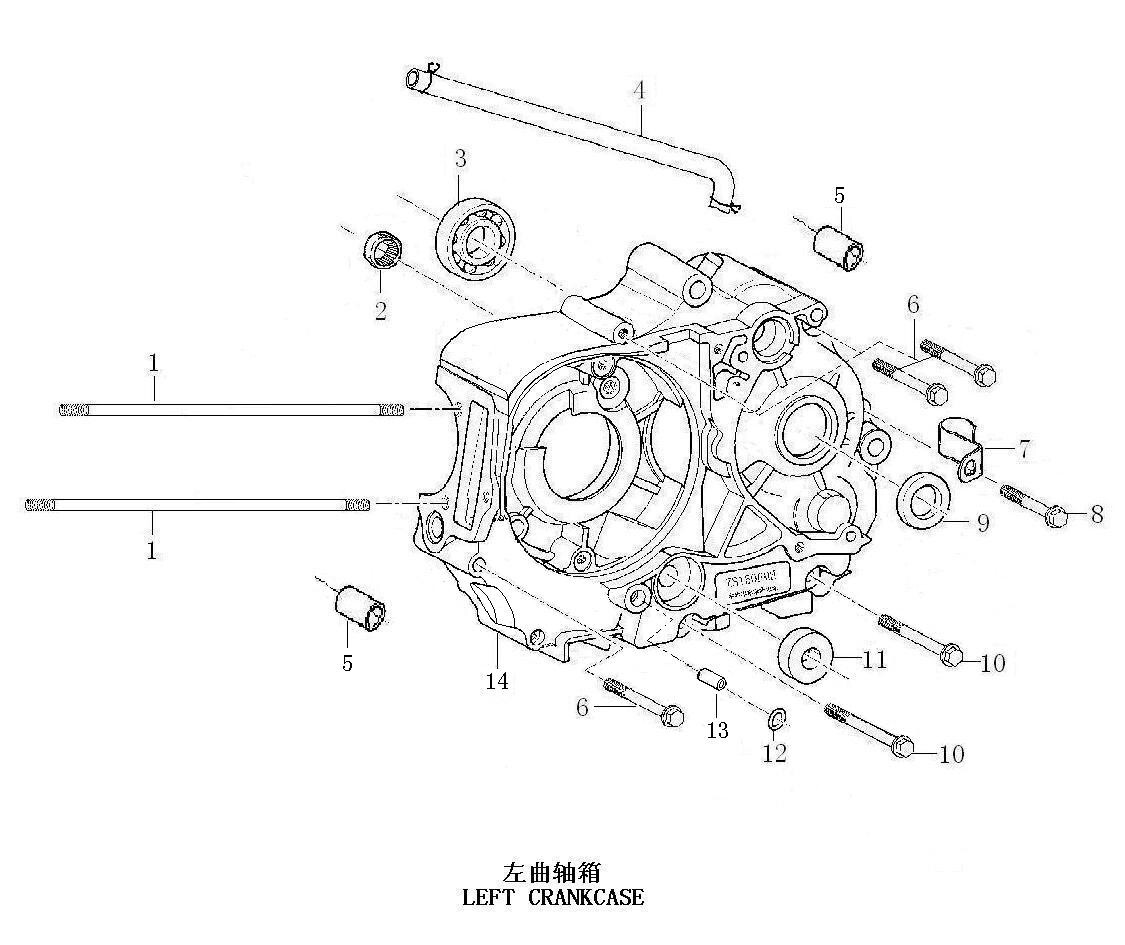

| LEFT CRANKCASE | |||||
 |
|||||
| No. | U8 Code | ENGLISH DESCRIPTION | Qty/vehicle | QTY | Retail |
| 1 | 101026-0306 | Cylinder Stud Bolt A | 2 | /ea | $ 20.40 |
| 2 | 101025-0029 | BeaRing, (NK14×22×12) | 1 | /ea | $ 13.60 |
| 3 | 101038-0719 | Bearing, 6203 | 1 | /ea | $ 17.00 |
| 4 | 101025-0093 | Pipe Assy | 1 | /ea | $ 8.50 |
| 5 | 101038-0723 | Pin, φ10×14 | 2 | /ea | $ 6.80 |
| 6 | 101025-0059 | Bolt, M6×60 | 3 | /ea | $ 6.80 |
| 7 | 101025-0248 | Clip High Voltage Wire | 1 | /ea | $ 6.80 |
| 8 | 101025-0057 | Bolt, M6×50 | 1 | /ea | $ 8.50 |
| 9 | 101025-0161 | Oil Seal 17×29×5 | 1 | /ea | $ 17.00 |
| 10 | 101025-0060 | Bolt, M6×65 | 2 | /ea | $ 8.50 |
| 11 | 101025-0160 | Oil Seal 11.6×24×10 | 1 | /ea | $ 17.00 |
| 12 | 101025-0001 | O-Ring, φ8×1.8 | 1 | /ea | $ 5.10 |
| 13 | 101025-0021 | Dowel Pin, φ8×12×φ6.3 | 1 | /ea | $ 6.80 |
| 14 | 101025-0277 | Left Crankcase Block | 1 | /ea | $ 85.00 |

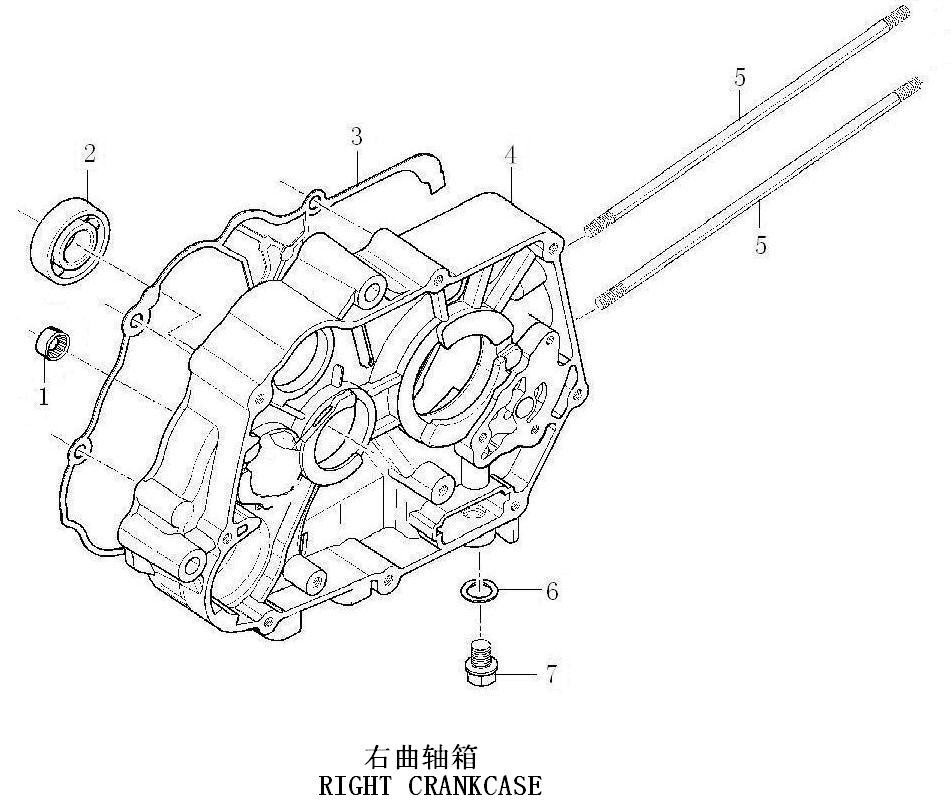

| RIGHT CRANKCASE | |||||
 |
|||||
| No. | U8 Code | ENGLISH DESCRIPTION | Qty/vehicle | QTY | Retail |
| 1 | 101025-0028 | Needle BeaRing, (Nk13.5×22×12) | 1 | /ea | $ 13.60 |
| 2 | 101038-0719 | Bearing, 6203 | 1 | /ea | $ 17.00 |
| 3 | 101025-0145 | Gasket Crankcase | 1 | /ea | $ 17.00 |
| 4 | 101025-0278 | Right Crankcase Block | 1 | /ea | $ 76.50 |
| 5 | 101026-0307 | Cylinder Stud Bolt B | 2 | /ea | $ 20.40 |
| 6 | 101025-0014 | Washer, φ12.1×2×φ20 | 1 | /ea | $ 5.10 |
| 7 | 101025-0249 | Oil Drain Plug | 1 | /ea | $ 17.00 |

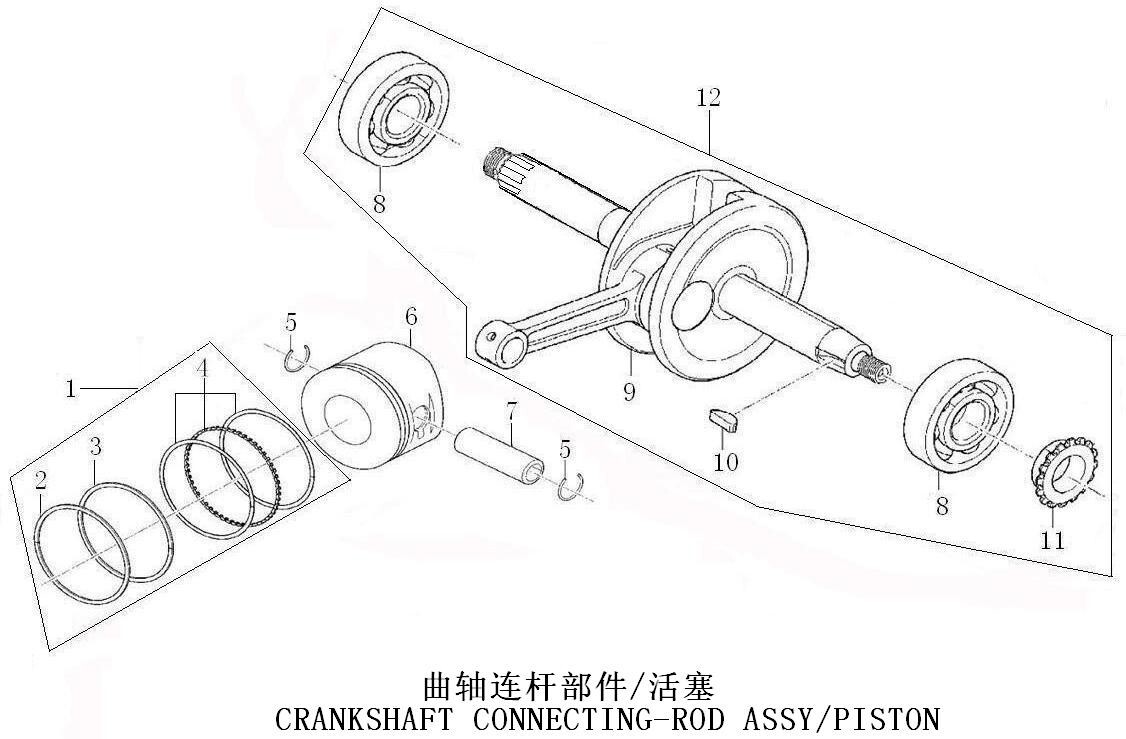

| CRANKSHAFT CONNECTING-ROD ASSY/PISTON | |||||
 |
|||||
| No. | U8 Code | ENGLISH DESCRIPTION | Qty/vehicle | QTY | Retail |
| 1 | 101026-0308 | Piston Ring,Comp | 1 | /ea | $ 34.00 |
| 5 | 101025-0082 | Check Ring Piston Pin | 2 | /ea | $ 6.80 |
| 6 | 101026-0312 | Piston | 1 | /ea | $ 42.50 |
| 7 | 101026-0313 | Pin,Piston | 1 | /ea | $ 17.00 |
| 8 | 101025-0026 | BeaRing, (6304) | 2 | /ea | $ 17.00 |
| 9 | 101026-0314 | Connecting Rod Comp 3 | 1 | /ea | $ 90.10 |
| 10 | 101025-0086 | Semicircular Key | 1 | /ea | $ 6.80 |
| 11 | 101025-0085 | Hub Dump Chain Sprocket | 1 | /ea | $ 13.60 |
| 12 | 101026-0315 | Crankshaft Connecting-Rod Assy | 1 | /ea | $ 110.50 |

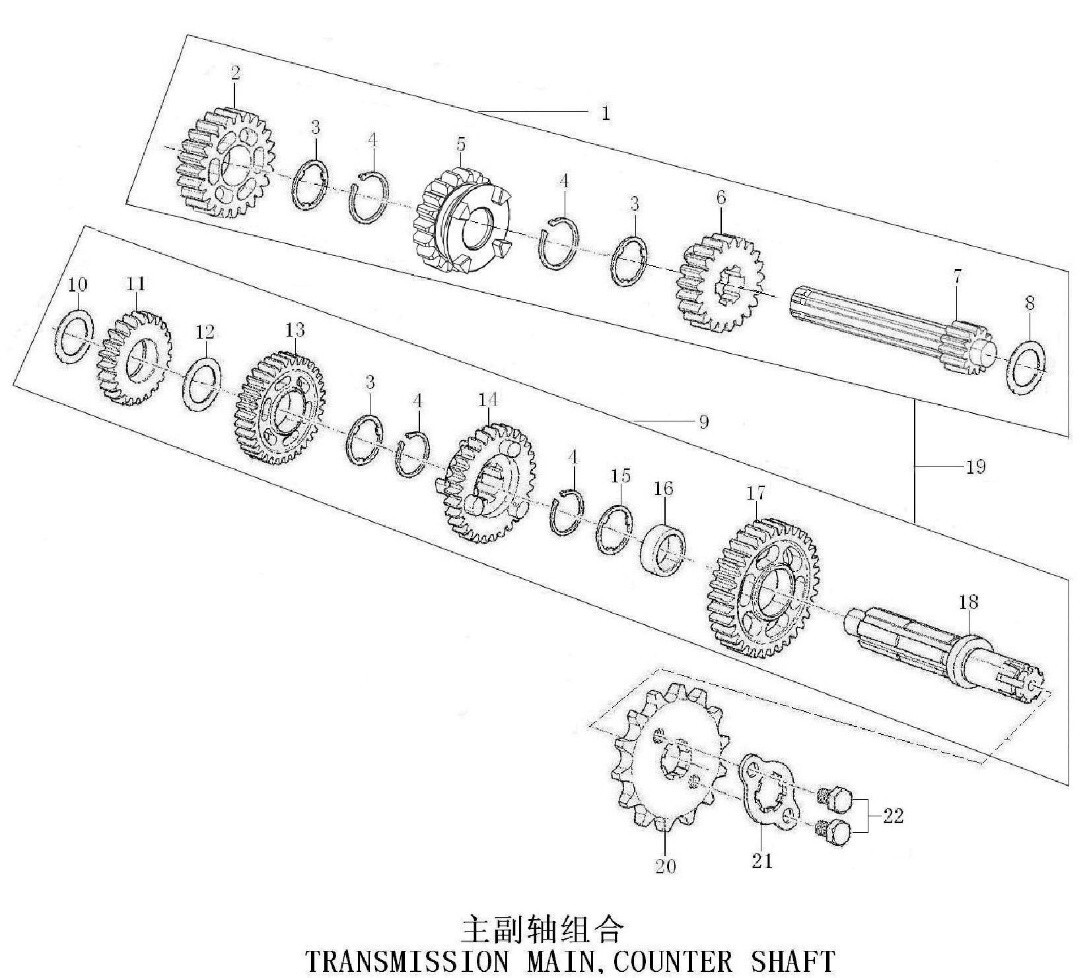

| TRANSMISSION MAIN,COUNTER SHAFT | |||||
 |
|||||
| No. | U8 Code | ENGLISH DESCRIPTION | Qty/vehicle | QTY | Retail |
| 1 | 101025-0221 | Main Shaft Transmission | 1 | /ea | $ 59.50 |
| 9 | 101025-0225 | Coutershaft Transmission | 1 | /ea | $ 59.50 |
| 19 | 101025-0223 | Transmission Main Counter Shaft | 1 | /ea | $ 119.00 |
| 20 | 101025-0128 | Drive Sprocket | 1 | /ea | $ 25.50 |
| 21 | 101025-0227 | Fixing Plate Drive Sprocket | 1 | /ea | $ 10.20 |
| 22 | 101025-0041 | Bolt, M6×10 | 2 | /ea | $ 5.10 |

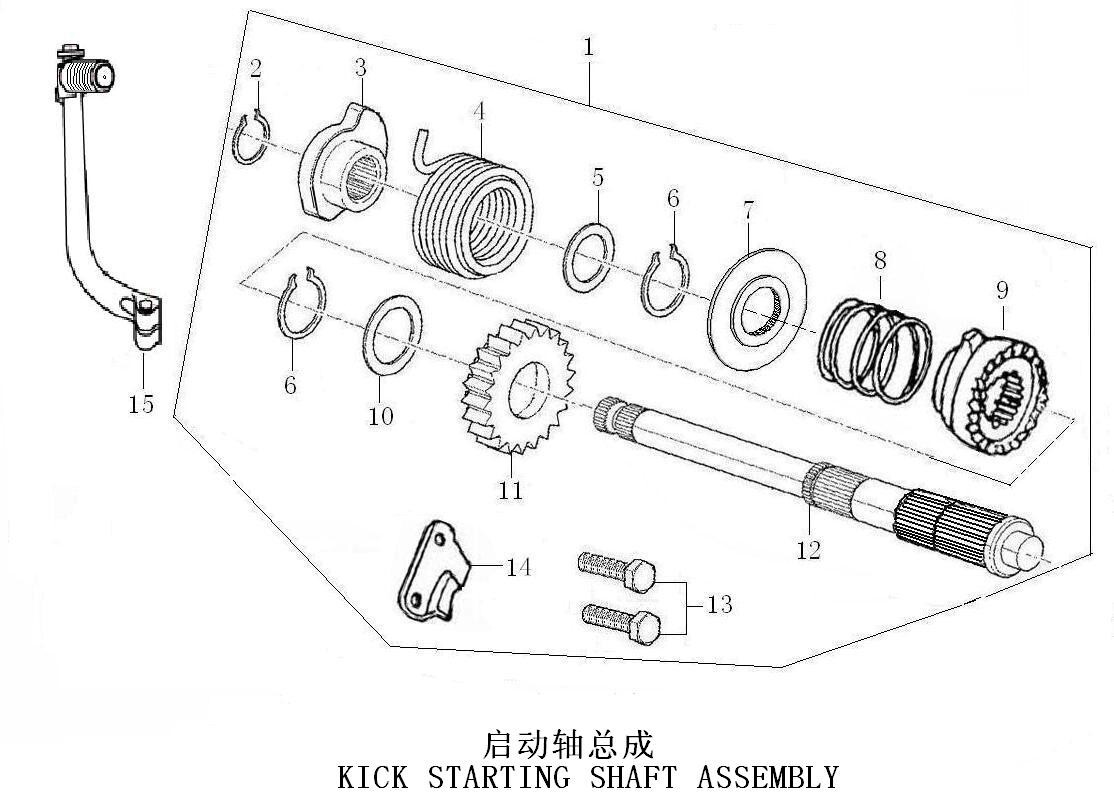

| KICK STARTING SHAFT ASSEMBLY | |||||
 |
|||||
| No. | U8 Code | ENGLISH DESCRIPTION | Qty/vehicle | QTY | Retail |
| 1 | 101025-0208 | Kick Starting Shaft Assembly | 1 | /ea | $ 59.50 |
| 15 | 101025-0242 | Start-Up Bar Comp | 1 | /ea | $ 34.00 |

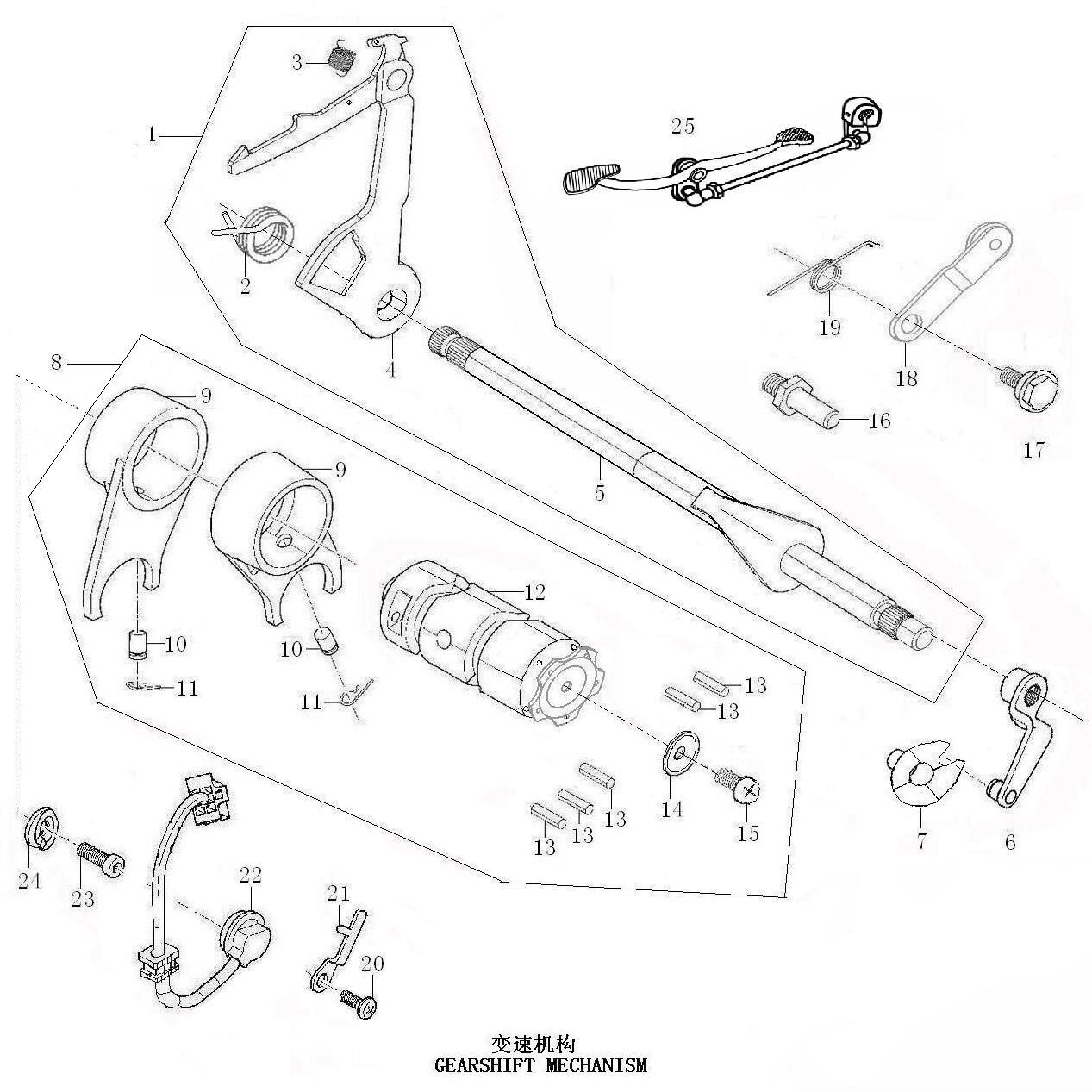

| GEARSHIFT MECHANISM | |||||
 |
|||||
| No. | U8 Code | ENGLISH DESCRIPTION | Qty/vehicle | QTY | Retail |
| 1 | 101025-0228 | Gearshift Lever Comp | 1 | /ea | $ 51.00 |
| 6 | 101025-0112 | Controlling Arm Assembly Clutch | 1 | /ea | $ 17.00 |
| 7 | 101025-0113 | Cam Plate Assembly Clutch | 1 | /ea | $ 13.60 |
| 8 | 101025-0135 | Gearshift Drum Comp | 1 | /ea | $ 59.50 |
| 16 | 101025-0065 | Bolt Return Springn Fixing, 8×11 | 1 | /ea | $ 5.10 |
| 17 | 101025-0064 | Bolt Fixing Plate | 1 | /ea | $ 5.10 |
| 18 | 101025-0232 | Locating Plate Assy | 1 | /ea | $ 11.90 |
| 19 | 101025-0231 | SpRing, Locating Plate | 1 | /ea | $ 10.20 |
| 20 | 101025-0035 | Screw, M6×12 | 1 | /ea | $ 5.10 |
| 21 | 101025-0140 | Gearshift Switch Pressing Plate | 1 | /ea | $ 8.50 |
| 22 | 101025-0266 | Gearshift Switch Lamp | 1 | /ea | $ 20.40 |
| 23 | 101038-0387 | Screw | 1 | /ea | $ 5.10 |
| 24 | 101025-0141 | Contact Cearindication | 1 | /ea | $ 13.60 |
| 25 | 101025-0230 | Gearshift Shaft | 1 | /ea | $ 34.00 |

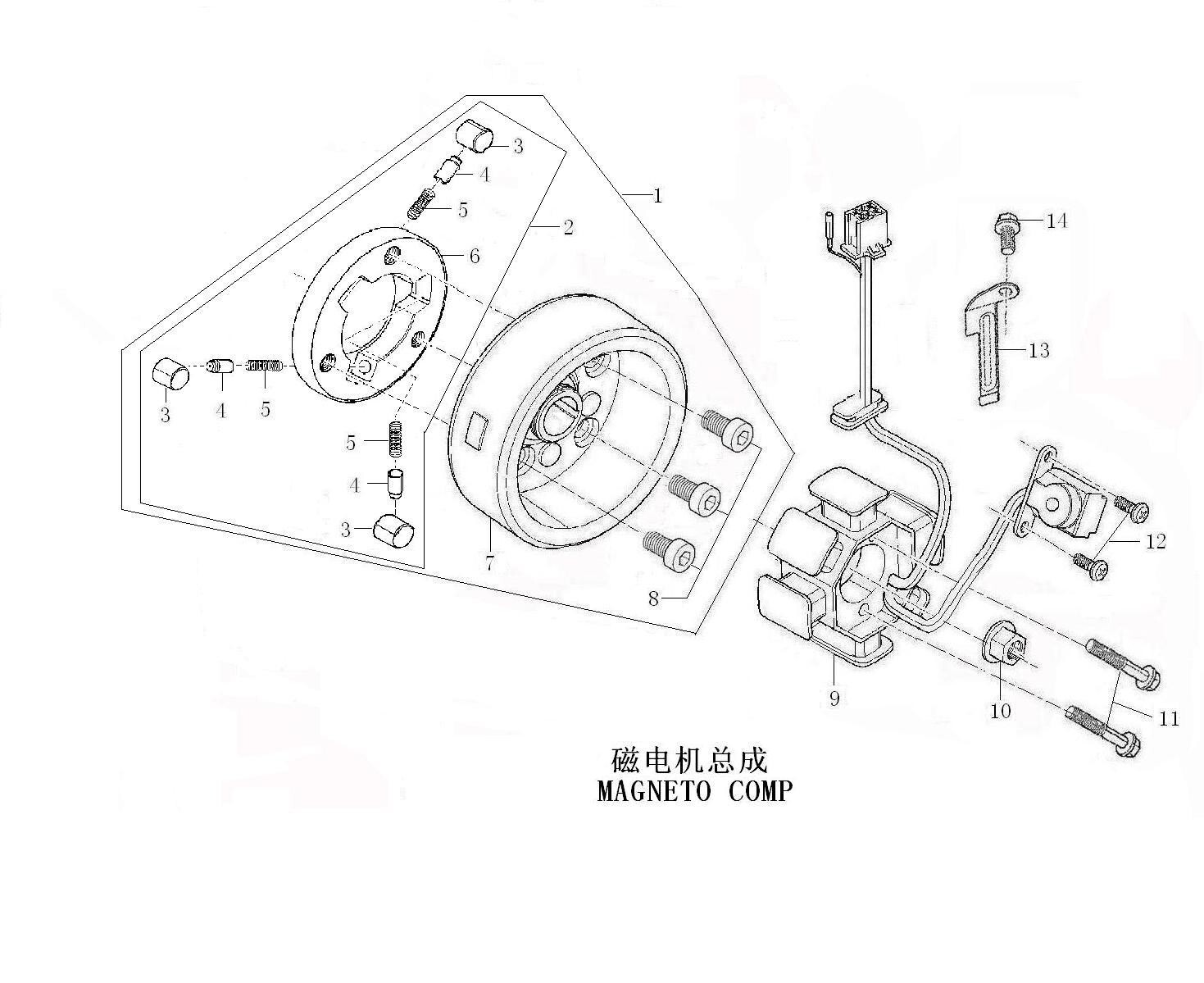

| MAGNETO COMP | |||||
 |
|||||
| No. | U8 Code | ENGLISH DESCRIPTION | Qty/vehicle | QTY | Retail |
| 1 | 101025-0236 | Rotor Assy Magneto | 1 | /ea | $ 59.50 |
| 2 | 101025-0092 | Assembly Overrunning Clutch | 1 | /ea | $ 34.00 |
| 6 | 101025-0215 | Starting Clutch Body | 1 | /ea | $ 25.50 |
| 7 | 101025-0237 | Rotor Assy Magneto | 1 | /ea | $ 34.00 |
| 8 | 101025-0045 | Bolt, M8×15 | 3 | /ea | $ 5.10 |
| 9 | 101025-0263 | Stator Assy Magneto | 1 | /ea | $ 51.00 |
| 10 | 101025-0271 | Nut | 1 | /ea | $ 8.50 |
| 11 | 101025-0051 | Bolt, M6×22 | 2 | /ea | $ 5.10 |
| 12 | 101025-0040 | Bolt, M5×12 | 2 | /ea | $ 5.10 |
| 13 | 101025-0238 | Fixing Plate Magneto Cable | 1 | /ea | $ 6.80 |
| 14 | 101025-0048 | Bolt, M6×16 | 1 | /ea | $ 5.10 |

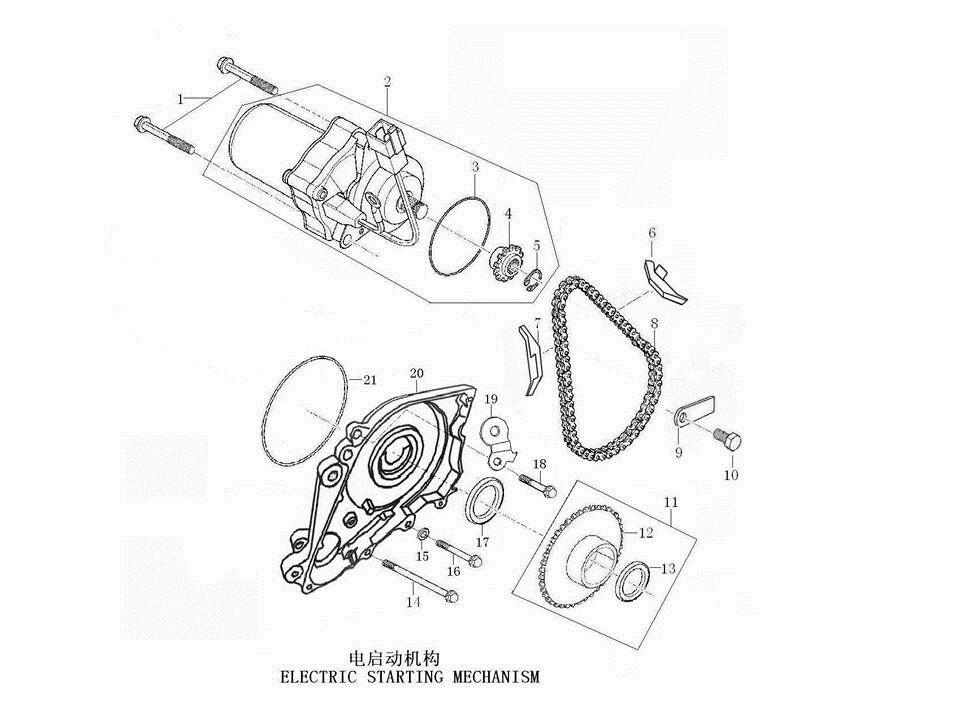

| ELECTRIC STARTING MECHANISM | |||||
 |
|||||
| No. | U8 Code | ENGLISH DESCRIPTION | Qty/vehicle | QTY | Retail |
| 1 | 101028-0359 | Bolt, M6×28 | 2 | /ea | $ 5.10 |
| 2 | 101025-0264 | Starting Motor Assy | 1 | /ea | $ 59.50 |
| 3 | 101025-0007 | O-Ring, φ33×2 | 1 | /ea | $ 8.50 |
| 4 | 101025-0137 | Sprocket | 1 | /ea | $ 17.00 |
| 5 | 101025-0070 | Retaining Ring, 11 | 1 | /ea | $ 8.50 |
| 6 | 101025-0219 | Assembly Guide Plate | 1 | /ea | $ 13.60 |
| 7 | 101025-0218 | Assembly Chain Protect Plate | 1 | /ea | $ 13.60 |
| 8 | 101025-0094 | Starting Motor Drive Chain | 1 | /ea | $ 17.00 |
| 9 | 101025-0088 | Plate Start Clutch | 1 | /ea | $ 8.50 |
| 10 | 101025-0042 | Bolt, M6×12 | 1 | /ea | $ 5.10 |
| 11 | 101025-0216 | Plate Gear Assy | 1 | /ea | $ 42.50 |
| 12 | 101025-0217 | Plate Gear Assy | 1 | /ea | $ 25.50 |
| 13 | 101025-0164 | Oil Seal 19×30×5 | 1 | /ea | $ 17.00 |
| 14 | 101025-0063 | Bolt, M6×105 | 1 | /ea | $ 13.60 |
| 15 | 101025-0011 | Washer, φ6.2×1.5×φ13 | 1 | /ea | $ 5.10 |
| 16 | 101025-0054 | Bolt, M6×35 | 1 | /ea | $ 5.10 |
| 17 | 101025-0163 | Oil Seal 30×42×4.5 | 1 | /ea | $ 17.00 |
| 18 | 101025-0052 | Bolt, M6×25 | 1 | /ea | $ 5.10 |
| 19 | 101025-0270 | Supporting Clip | 1 | /ea | $ 8.50 |
| 20 | 101025-0280 | Lower Pan Oil Insulating | 1 | /ea | $ 51.00 |
| 21 | 101025-0008 | O-Ring, φ106.8×2 | 1 | /ea | $ 13.60 |

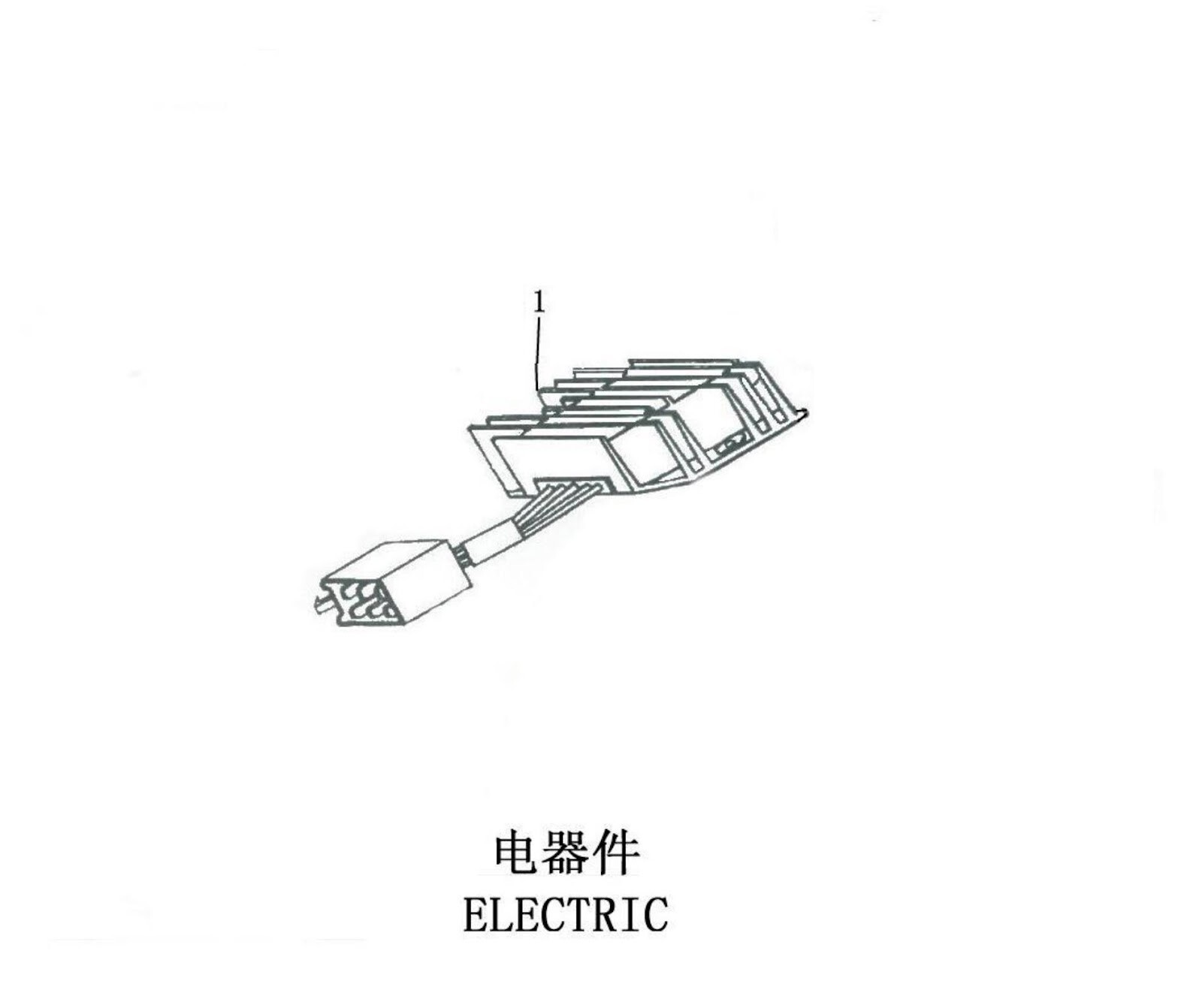

| ELECTRIC | |||||
 |
|||||
| No. | U8 Code | ENGLISH DESCRIPTION | Qty/vehicle | QTY | Retail |
| 1 | 101025-0139 | Rectifier | 1 | /ea | $ 25.50 |
-
-
-
-
-
SaleOnly 2 left in stock
2025 Kayo TD110 EFI Pit Bike – 110cc EFI Mini Dirt Bike with Hydraulic Disc Brakes & Inverted Forks
$1,999.00 $1,779.00$2,399.00Kayo
